Model:            Jetstream 32 EP
Serial Number:    919
A/C Status:    PART 121
Total Hours:    15,246
Total Cycles:    17,805
Manufacture Date:    1990
Hours/Cycles As Of:    NOV. 2007
Audit Completion Date:    NOV. 2007
Aircraft Type    J32
Registration #  N919AE
Aircraft Year    1992
Model         3201

Engine    RH    GARRETT    TPE331-12    S/N:    P66205C    TT:    17,926.8    TC:    21,636
Approved Interval    Time Since
Engine Overhaul / Major CAM         7,000     hrs    5,910     hrs
Hot Section Inspection (H.S.I.)    3,500     hrs

Engine   LH    GARRETT    TPE331-12    S/N:    P66235C    TT:    13,551    TC:    16,302
Approved Interval    Time Since
Engine Overhaul / Major CAM    7,000     hrs    7.7     hrs
Hot Section Inspection (H.S.I.)    3,500     hrs

Main Landing Gear    RH
Approved Interval    Time Since
MLG assembly - Life (3200)    45,900     cycles    10,492     cycles
MLG leg 10,000 CYC - O/H    10,000     cycles    72     Months    3     cycles    3     Months

Main Landing Gear    LH
Approved Interval    Time Since
MLG assembly - Life (3200)    45,900     cycles    17,623     cycles
MLG leg 10,000 CYC - O/H    10,000     cycles    72     Months    3     cycles    3     Months

Nose Landing Gear
Approved Interval    Time Since
NLG - Life (3200)    45,000     cycles    23,293     cycles
NLG leg assy 10,000 cycle - O/H    10,000     cycles    72     Months    3     cycles    3     Months

Propeller    RH
Approved Interval    Time Since
McCauley Propeller - O/H    5,000     hrs    72     Months    11     hrs    61     Months

Propeller    RH    McCauley    4HFR34C653/L106FA    S/N:    901617    TT:    13,468.2    TC:
Approved Interval    Time Since
McCauley Propeller - O/H    5,000     hrs    72     Months                        3,058 hrs    17     Months

Avionics
Avionic    Manufacturer    Model
ADF NO 1    COLLINS    ADF-60A
ALTIMETER NO 1    BENDIX/KING    066-3062-02
ALTIMETER NO 2    KOLLSMAN    B.45152-10-004
AUDIO CONTROL SYS 1    RACAL    B692
AUDIO CONTROL SYS 2    RACAL    B692
COCKPIT VOICE RECORDER    FAIRCHILD    93A100-83
DIGITAL CLOCKS    DAVTRON    M811B
DME NO 1    COLLINS    DME-42
ELT    NARCO    ELT 910
FLIGHT DATA RECORDER    FAIRCHILD/ALLIED    F1000
FLIGHT DIRECTOR    SPERRY    FZ-500
GPS    GARMIN                    400
GPWS    SUNSTRAND    MARK- VI
TAWS CLASS A    SANDEL     3400
MARKER BEACON    COLLINS    VIR-32
Passenger Briefing System    Heads Up Technology    PBS250-2-G28
RADIO ALTIMETER    COLLINS    ALT-55
RMI NO 1    COLLINS    RMI-36
RMI NO 2    COLLINS    RMI-36
TCAS (STC # SA00091DE-D / AMR Combs)    COLLINS    TCAS-94 (TCAS II)
TRANSPONDER NO 1    COLLINS    TDR-94D
TRANSPONDER NO 2    COLLINS    TDR-94D
VHF COMM NO 1    COLLINS    VHF-22A
VHF COMM NO 2    COLLINS    VHF-22A
VHF NAV NO 1    COLLINS    VIR-32
VHF NAV NO 2    COLLINS    VIR-32
WEATHER RADAR    COLLINS    WXR-270

FEATURES:
FRESH A-E INPECTIONS
NEW PAINT 2007

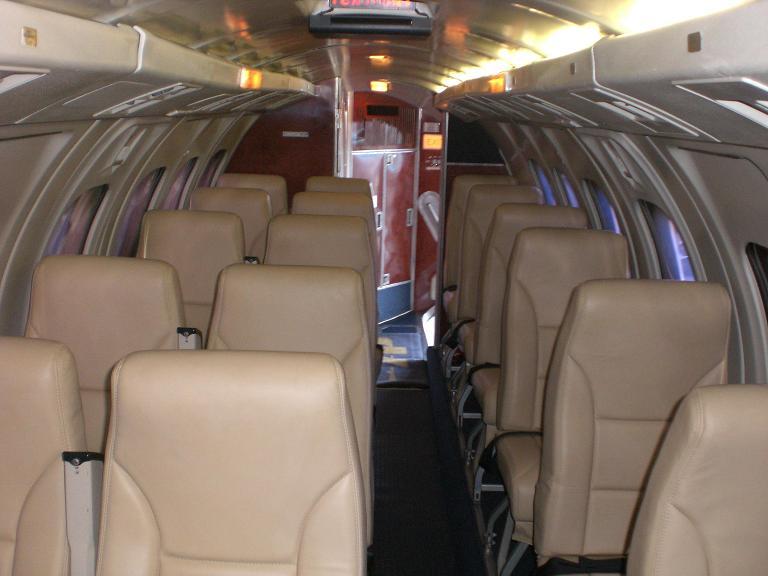

NEW LEATHER INTERIOR 2007

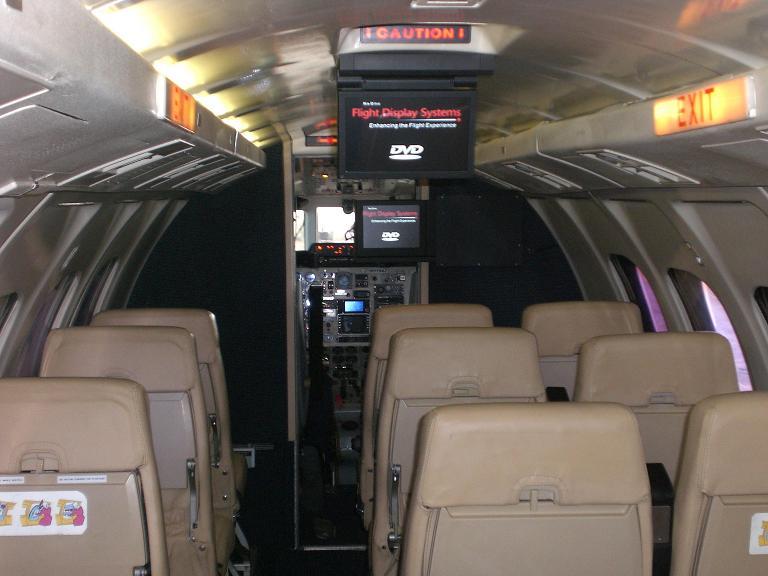

DVD INTERTAINMENT SYSTEM WITH TWO 10.2 INCH MONITORS
FREON AIR CONDITIONER
TCAS II
DIGITAL FDR
TAWS CLASS A
EP KIT
AFT LAVATORY
CARGO POD
