ENGINES:      PT6A-21  550 SHP (3600 HR TBO)
TIME SINCE OVERHAUL:             1975
BY DALLAS AIRMOTIVE
SINCE HOT SECTION:                    175
HOTS BY ATLANTIC TURBINES

FOUR BLADE HARTZELL/ RAISBECK (HC-D4N-3C) PROPELLERS
TIME SINCE OVERHAUL:              134
FEBRUARY 2008
FIRST O/H SINCE NEW, NEXT DUE 2/2013

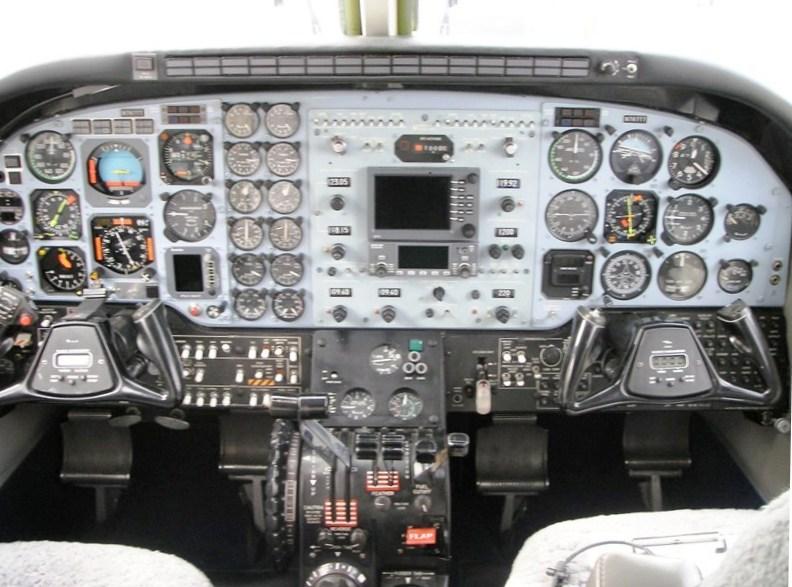

AVIONICS:
COLLINS AUDIO PANEL
DUAL COLLINS VHF-20A COMMS
DUAL COLLINS VIR-30 NAVS
DUAL COLLINS TDR-90 TRANSPONDERS
COLLINS 106 AUTOPILOT  W/ALTITUDE PRE-SELECT
COLLINS FD-108 FLIGHT DIRECTOR
COLLINS PN-101 HSI
COLLIS TWIN NEEDLE RMI – PILOT
COLLINS DME-40
COLLINS ADF-60A
AVIDYNE FLIGHTMAX 750 – LINKED TO GPS-500 BENDIX/KING KLN 90B GPS
ARGUS 5000 MOVING MAP – LINKED TO KLN 90B GARMIN 500 W/TAWS (B)
XM WEATHER BFG SKYWATCH 497 TCAS
BENDIX RDR-2000 RADAR

EXTRA EQUIPMENT:
RAISBECK DUAL AFT BODY STRAKES                 RAISBECK GROSS WEIGHT INCREASE
RAISBECK 4 BLADE PROPS                                     AUTOFEATHER
AMERICAN AVIATION SPEED STACKS                 LEAD ACID BATTERY
NICKEL GUIDE VANES                                            KNOWN ICE
PROP SYNC                                                               FLITETRONICS PC-12 INVERTERS
49 Cu Ft OXYGEN                                                       AIR CONDITIONER
CO-PILOT PANEL                                                      CLEVELAND WHEELS & BRAKES
IVSI                                                                             WULFSBERG FLITEFONE III
AVIONICS MASTER                                                  ELECTRIC TRIM

ALTERNATE STATIC                                                STROBES
DAVTRON M811B
BEECH QUARTZ CHRONOMETER (PILOT SIDE)
ASTROTECH LC-2A-5 QUARTZ CHRONOMETER (CO-PILOT SIDE)
RECOGNITION LIGHTS

MAINTENANCE:
PHASE 1&2 INSPECTIONS C/W 1/07
PHASE 3&4 INSPECTIONS C/W 3/08
5 YR FLAMMABLE LIQUID HOSES/BRAKE HOSE DUE 5/2010
6 YR GEAR ACTUATOR O/H DUE 3/2012
6 YR GEAR O/H C/W 7/08
3 YR WING SPAR INSPECTION DUE 9/2008
12 MO. WING SPAR CAP INSPECTION C/W 3/08
NEW CONCORDE LEAD-ACID BATTERY INSTALLED 3/08
12 MO. NOSE WHEEL CORROSION INSPECTION C/W 3/19/08
IFR TRANSPONDER & STATIC CHECKS C/W 3/08, NEXT DUE 3/10
12 MO. ELT FAR 91.207 INSPECTION C/W 3/19 (NEW ELT BATTERY 3/08)
MSB 32-2102 R7 BY INSPECTION, PASSED
NEW MAIN TIRED DONE AT GEAR O/H.  NEW NOSE TIRE DONE 3/2008
CLEVELAND WHEELS AND BRAKES
BRAKE DISCS/PADS NEW 3/2008

RAISBECK GROSS WEIGHT INCREASES:          10,100 LBS
EMPTY WEIGHT                                                        6488.7 LBS
USEFUL LOAD                                                           3611.3 LBS

INTERIOR:    NEW 2008

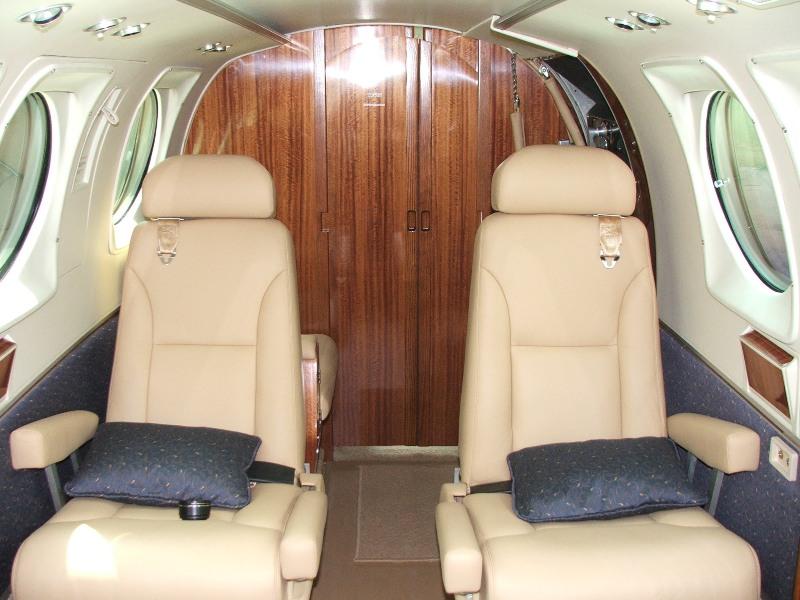

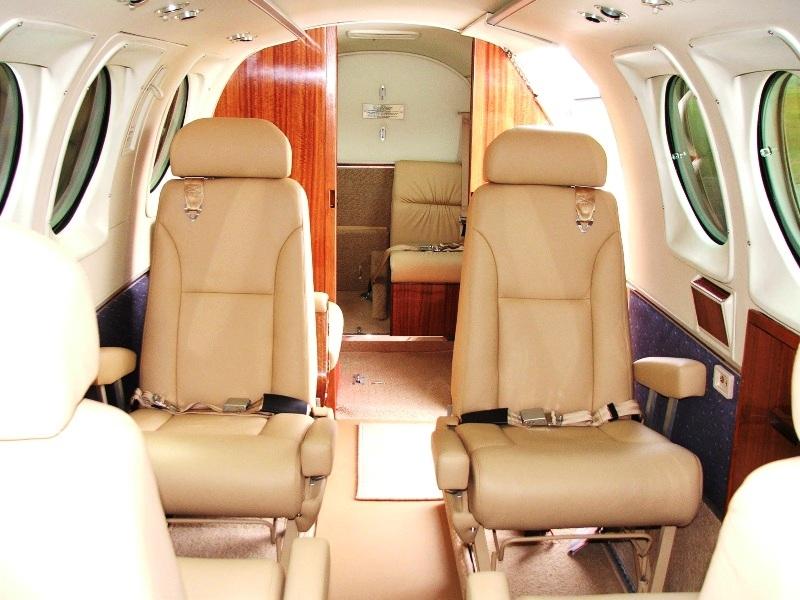

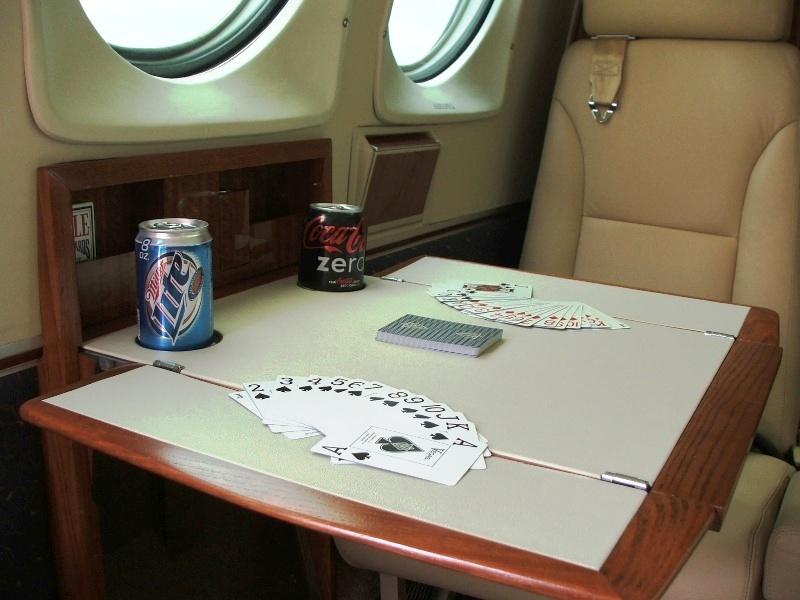

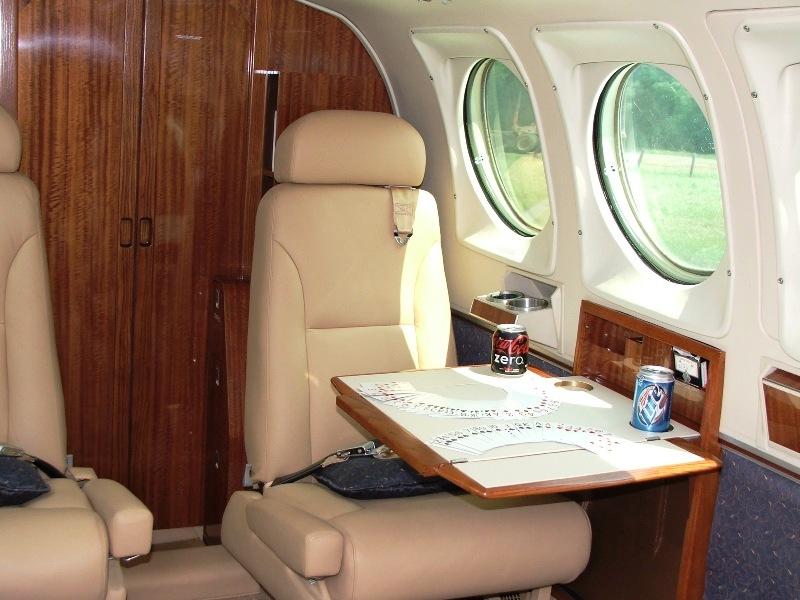

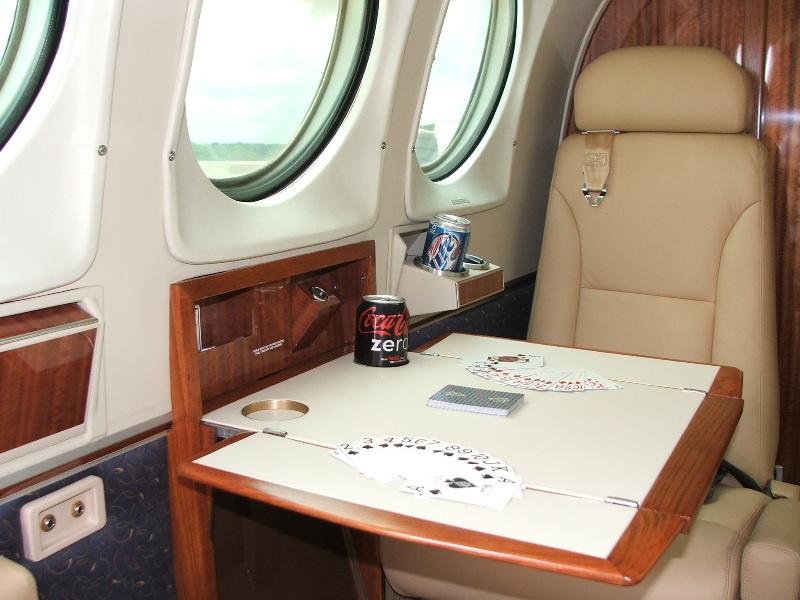

SEVEN PASSENGER FIREBLOCKED, APPOINTED IN TAN LEATHER AND CLOTH.  4 CLUB SEATS & SIDE FACING DEVAN WITH UNDERSEAT STORAGE.  TWO EXECUTIVE DESKS, AFT BELTED POTTY.  FORWARD REFRESHMENT BAR, AFT MAPCO HOT BEVERAGE DISPENSER.  INSTRUMENT PANEL UPGRADED TO MATCH NEW INTERIOR 3/2008.

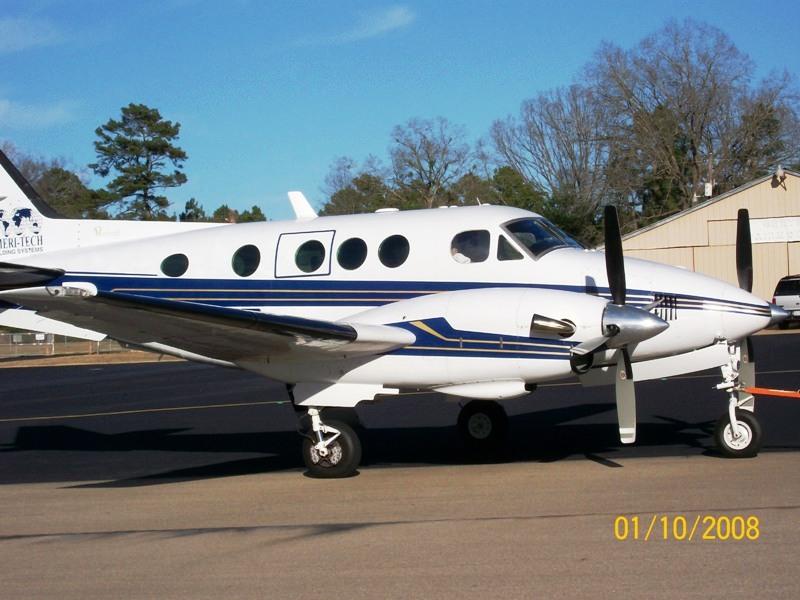

EXTERIOR:
OVERALL WHITE WITH BLUE AND GOLD ACCENTS.

***SPECIFICATIONS ARE SUBJECT TO VERIFICATION***
