Nice, clean corporate configured Jetranger. Excellent Times Remaining; High Skids, Flight Steps, Wire Strike, Particle Sep., Range Extender,
Heater, Rotor Brake, Crew Shoulder Harnesses, Dual Control Provisions, Door Openers, Rubber Mounted Wedge Windows, Floor Protectors, Maintenance Steps / Grips
Airframe:
Times Remaining to Overhaul:
Main Rotor Assy: 1200
Swashplate: 3591
Freewheel Unit: 1146
Transmission: 1999
Servos: 1551 / 1551 / 901
M/R Mast: 499
T/R Gearbox: 1539
T/R Hub: 1444
Times Remaining to Retirement:
M/R Blades: 3049
M/R Pins: 1200
M/R Grips: 2619
M/R Trunion: 3680
M/R Straps: 1127 / June 2011
M/R Fittings: 1200
M/R Latch Bolts: 1675
T/R Yoke: 3944
T/R Blades: 1448
Collective Lever: 3591
Collective Link: 3591
Sleeve Assy: 3591
Clutch Assy: 1146
Engine Specs:
Times Remaining to Overhaul:
Compressor: 92
Impeller: 142
HSI: 762
Turbine: 737
1st & 2nd Wheel: 762
3rd & 4th Wheel: 3537
Governor: 3263
Fuel Control: 2519
Fuel Pump: 1368

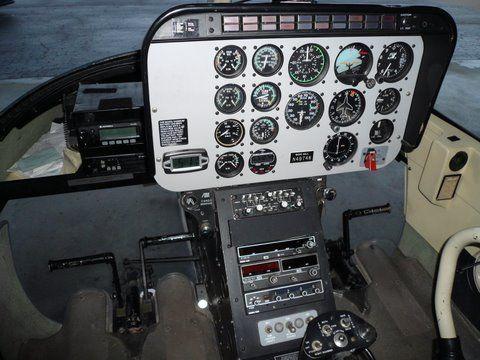

Avionics/Radios:
KY196A Comm; KX155 Nav/Comm; KT76A Transponder; NAT Audio Panel;
Exterior:

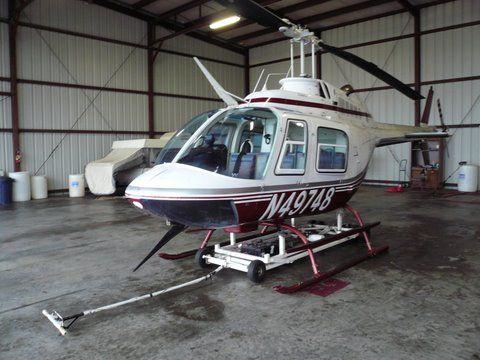

Exterior: White w/ Maroon & Silver Stripes 8/10

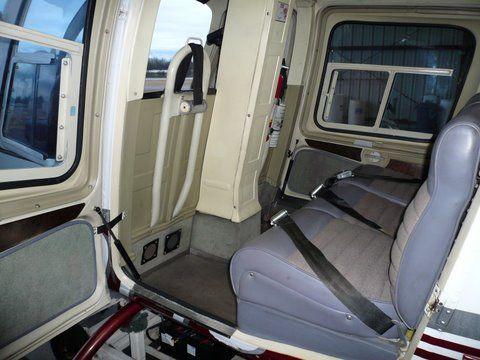

Interior: Blue Cloth & Vinyl Seats w/ Gray Carpet 8/10 |
