Aircraft Summary
IFR Certified with Collins Auto-Pilot, Floats, Passenger Configured, 135 Certified


    Airframe:
  • 11040.3 Total Time

  • RETIREMENT ITEMS HOURS REMAINING
  • Main Rotor Blades 3212.2 Hours
  • Main Rotor Mast 2776.6 Hours
  • Main Rotor Mast 39063 RINs
  • Main Rotor Trunnion 14581 RINs
  • Main Rotor Grip 3941.6
  • Main Rotor Grip 3941.6
  • Main Rotor TT Straps 1200 Hours
  • Main Rotor TT Straps 24 months
  • Main Rotor Bolts 1200 Hours
  • Main Rotor Fittings 1542.0 Hours
  • Main Rotor Pins 1200 Hours
  • Swashplate Sleeve 4072.1 Hours
  • Swashplate Support 4072.1 Hours
  • Collective Lever 931.7 Hours
  • Cyclic Tube R/H 3271.1 Hours
  • Cyclic Tube L/H 3271.1 Hours
  • Freewheel Clutch 212.5 Hours
  • Tail Rotor Blades 1931.1 Hours
  • Tail Rotor Duplex Bearing 2267.0 Hours
  • Tail Rotor Yoke 5000.0 Hours

  • OVERHAUL ITEMS TIME REMAINING
  • Freewheel Assembly 212.5Hours
  • Hydraulic Servo Actuator 1633.8 Hours
  • Hydraulic Servo Actuator 1632.8 Hours
  • Hydraulic Servo Actuator 2338.2 Hours
  • Main Rotor Hub Assembly 2400.0 Hours
  • Main Rotor Mast Assembly 776.2 Hours
  • Transmission Assembly 2276.2 Hours
  • Swashplate Assembly 4072.1 Hours
  • Tail Rotor Gearbox Assembly 1602.8 Hours
  • Tail Rotor Hub Assembly 1731.5 Hours
  • --------------------------------------------------------------------------------
    Engine Specs:
  • 6511.8 Total Times/7579 Cycles

  • Impeller 5987.8 Hours
  • Turbine Overhaul 1979.5 Hours
  • 1st Stage Turbine Wheel 2004.5 Hours
  • 1st Stage Turbine Wheel 2968 Cycles
  • 2nd Stage Turbine Wheel 2004.5 Hours
  • 2nd Stage Turbine Wheel 2968 Cycles
  • 3rd Stage Turbine Wheel 2049.0 Hours
  • 3rd Stage Turbine Wheel 3133 Cycles
  • 4th Stage Turbine Wheel 2049.0 Hours
  • 4th Stage Turbine Wheel 3133 Cycles
  • Governor Overhaul 366.1 Hours
  • Fuel Nozzle Overhaul 1889.3 Hours
  • Fuel Pump Overhaul 2305.2 Hours
  • Fuel Control Overhaul 1447.8 Hours
  • Bleed Valve Overhaul 361.4 Hours
  • --------------------------------------------------------------------------------

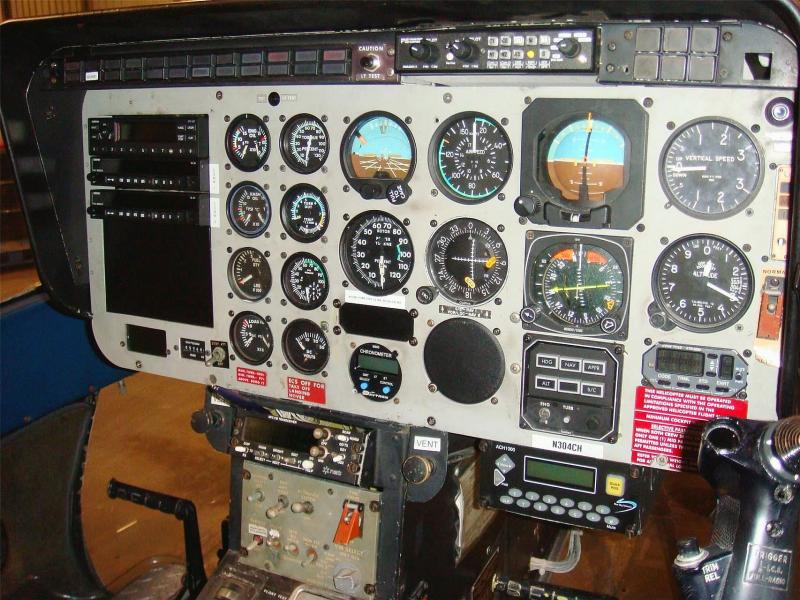

Avionics
  • Collins APS-841 Autopilot
  • PS-Engineering PMA-8000-C Audio Panel
  • Garmin SL-30 #1 VHF Nav/Comm
  • Garmin SL-30 #2 VHF Nav/Comm
  • GArmin STX-327 Transponder
  • Honeywell KCS-55ACompass System w/KI-525 Indicator
  • Davtron Digital Clock
  • Freeflight TRI-40 Radar Altimeter
  • NAT NPX-138 FM Transceiver
  • Ryan ATS-9000 TCAD
  • Cockpit Hour Meter
  • 6-Place ICS w/Headsets
  • ACH1000 Blue Sky Satellite Tracking System
  • --------------------------------------------------------------------------------
Modifications and Conversions
  • C-30P Conversion
  • --------------------------------------------------------------------------------
Additional Equipment
  • Dual Controls
  • Rotor Brake
  • Emergency Floats w/Float Steps
  • Passenger/Crew Shoulder Harnesses
  • Facet External Oil Filter Kit
  • ECU with Bleed Air Heater and Cool
  • Litter Provisioins w/Litter
  • Soundproofing
  • Cabin and Cockpit Floor Protectors
  • Spacemaker
  • --------------------------------------------------------------------------------
Interior

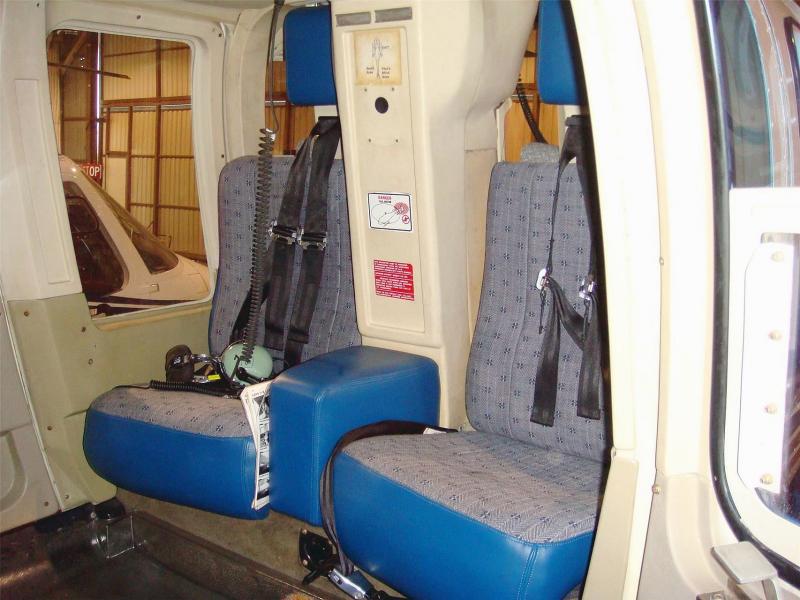

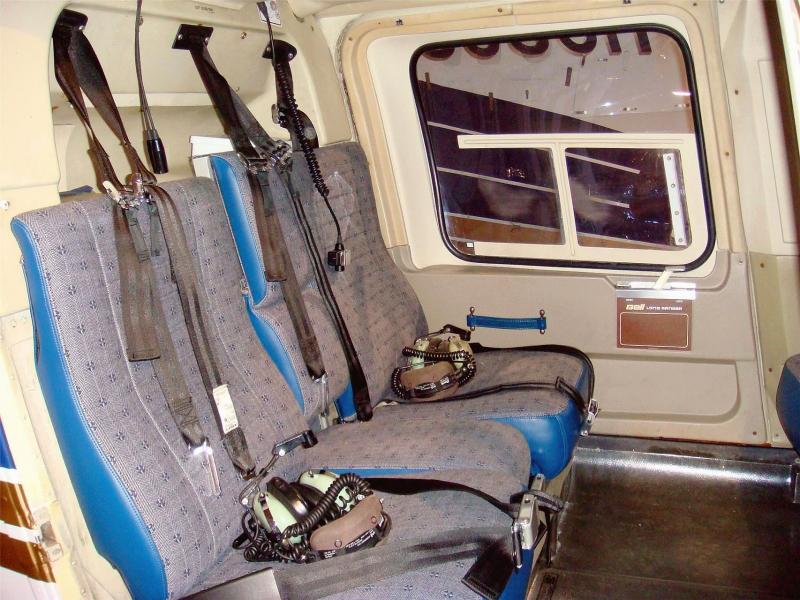

  • 5-PLACE Club Seating w/Gray Cloth Seats and Carpet
  • --------------------------------------------------------------------------------
Exterior
  • White Exterior with Dark Blue and Gold Trim
  • --------------------------------------------------------------------------------
Remarks
  • Annual Inspection Due March 11, 2011
