Aircraft Summary
MNPS, RNP 5 & RNP 10 certified, RVSM capable, Airshow 400, Flight Data Recorder F1000


    Airframe:
  • TOTAL TIME: 2143 hours
  • LANDINGS: 1349
  • --------------------------------------------------------------------------------
    Engine Specs:
  • Left Engine:
  • General Electric CF34-3B
  • Serial Number: 872322
  • Hours: 2143
  • Cycles: 1349
  • HSI/Overhaul: On Condition

  • Right Engine:
  • General Electric CF34-3B
  • Serial Number: 872324
  • Hours: 2143
  • Cycles: 1349
  • HSI/Overhaul: On Condition

  • Engines enrolled on the Smart Parts Engine Maintenance Program.
  • APU: Honeywell GTCP 36-150CL, s/n P-570C, 1851 hours.
  • --------------------------------------------------------------------------------

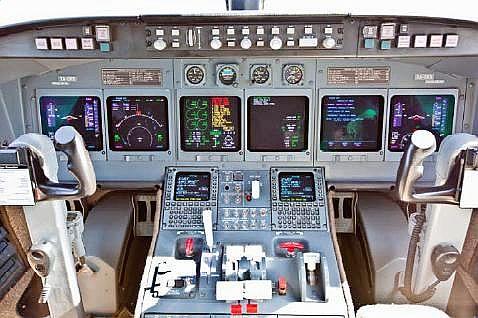

Avionics
  • Collins ProLine 4 System:
  • Six (7 1/4" x 7 1/4") EFIS display tubes with EICAS
  • Dual Collins FCC-4006 Digital Flight Control Computers
  • Dual Collins ADC-850 (E) Digital Air Data Computers
  • Dual Collins GPS-4000
  • Dual Collins AVSAT FMS-6000 FMS
  • Dual Collins DCU-4000 series Data Concentrator Units
  • Dual Litton-101 IRS with Single Mode Select Unit
  • Dual Channel Collins Integrated Avionics Processing Systems (IAPS)
  • Collins MDC-4000 Maintenance Diagnostic Computer
  • Collins Weather Radar (RTA 854) w/ Lightning Detection
  • Collins Radio Altimeter (ALT 55)
  • Dual Collins HF-9000 HF Communications System
  • Coltech CSD-714 Selcal Decoder System
  • Dual Collins VHF-422 Comm Transceivers (8.33 Spacing)
  • Dual Collins VIR-432 Nav Receivers
  • Dual Collins DME-442 Distance Measuring Equipment
  • Dual Collins ADF-462 Automatic Direction Finders
  • Dual Collins TDR-94D Xponder w/ Enhanced Surveillance
  • Dual Collins RTU-4000 Radio Tuning units
  • Fairchild A100S Cockpit Voice Recorder
  • --------------------------------------------------------------------------------
Additional Equipment
  • MNPS, RNP 5 & RNP 10 certified
  • RVSM capable
  • Airshow 400
  • Flight Data Recorder F1000
  • ARTEX 406 ELT
  • Allied Signal EGPWS
  • Collins TCAS II with Change 7
  • Iridium AIRCELL phone system
  • Entertainment System (DVD, C.D. changer, VHS player)
  • --------------------------------------------------------------------------------

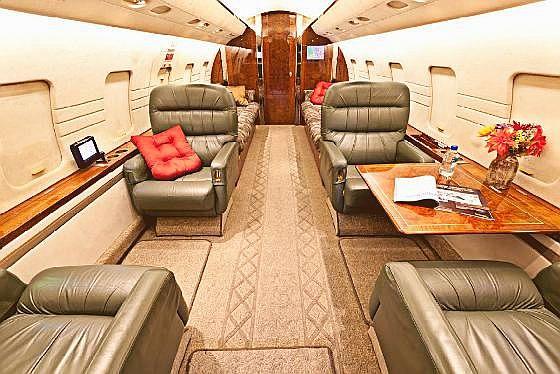

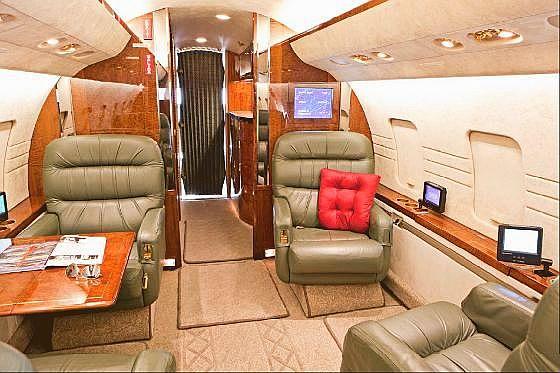

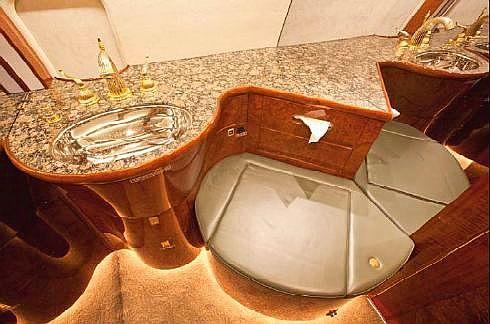

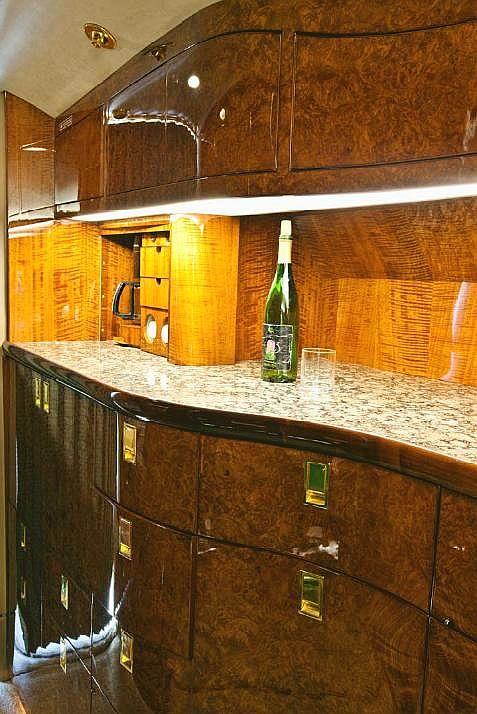

Interior
  • Original completion September 1998.
  • There are two divans situated in the aft cabin.
  • The wood through out the cabin is a medium, high gloss veneer.
  • The carpet is tan and the plating is gold.
  • The forward and aft cabin bulkheads have LCD monitors installed and there are plug in receptacles in four places through out the cabin.
  • --------------------------------------------------------------------------------

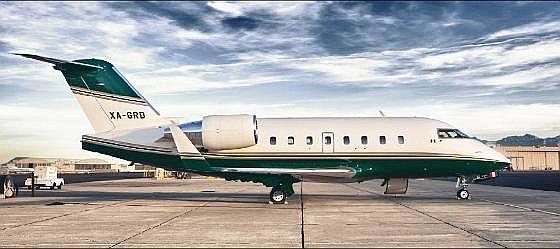

Exterior
  • Painted September 1998.
  • Lower fuselage is dark green; upper fuselage is cream colored.
  • There are light brown and dark green stripes that run from nose to tail.
  • --------------------------------------------------------------------------------
Remarks
  • 400/800 Hour Inspection due at 2300 hours
  • 48/96 Month Inspection due August/September 2014
  • Gear overhaul due September 2014
  • Maintenance Tracking Program: CAMP
  • Enrolled on Smart Parts Program (Contract # 5375-73)

  • Weights
  • Gross Weight (Ramp): 48,300 lbs
  • Max Take Off Weight: 48,200 lbs
  • Max Landing Weight: 38,000 lbs
  • Max Zero Fuel Weight: 32,000 lbs
  • Basic Operating Weight: 27,192 lbs
  • Empty Weight: 25,608 lbs
  • Fuel Capacity: 19,852 lbs
