Aircraft Summary
RVSM, BRNAV, RNP-10, NATMNPS capable, Airshow 400, C406 MHz ELT, Pulse Landing light System


    Airframe:
  • TOTAL TIME: 7575 hours
  • LANDINGS: 3966
  • --------------------------------------------------------------------------------
    Engine Specs:
  • Left Engine:
  • General Electric CF34-3B
  • Serial Number: 872429
  • Hours: 7516
  • Cycles: 3961

  • Right Engine:
  • General Electric CF34-3B
  • Serial Number: 872430
  • Hours: 7589
  • Cycles: 4040

  • Engines enrolled on Smart Parts Program; contract number 5407-71.

  • APU: Garrett GTCP 36-100E, s/n P-583; 6359 hours.
  • APU is enrolled on the Honeywell MSP Program; contract number 440028009.
  • --------------------------------------------------------------------------------
Avionics
  • Collins ProLine 4 System:
  • Six (7 1/4" x 7 1/4") EFIS display tubes with EICAS (EFD-4077)
  • Dual Collins FCC-4006 Digital Flight Control Computers
  • Dual Collins ADC-850 E Digital Air Data Computers
  • Dual Collins AVSAT FMS-6000 FMS
  • Dual Collins GPS-4000
  • Dual Collins DCU-4000 series Data Concentrator Units
  • Dual Litton-101 IRS with Single Mode Select Unit
  • Dual Channel Collins Integrated Avionics Processing Systems (IAPS)
  • Collins MDC-4000 Maintenance Diagnostic Computer
  • Dual Collins RTU-4000 Radio Tuning units
  • Collins WXR 854 Weather Radar
  • Collins ALT 55B Radio Altimeter
  • Dual Collins HF-9000 HF Communications System
  • Coltech CSD-714 Selcal Decoder System
  • Dual Collins VHF-422C Comm Transceivers (8.33 Spacing)
  • Dual Collins VIR-432 Nav Receivers
  • Dual Collins DME-442 Distance Measuring Equipment
  • Dual Collins ADF-462 Automatic Direction Finders
  • Dual Collins TDR-94D Transponder Enhanced Surveillance
  • Honeywell MK V EGPWS
  • Collins TTR-920 TCAS II with Change 7
  • L3 Communications A100S Cockpit Voice Recorder
  • L3 Communications F-1000 Flight Data Recorder
  • --------------------------------------------------------------------------------
Additional Equipment
  • RVSM, BRNAV, RNP-10, NATMNPS capable
  • Airshow 400
  • C406 MHz ELT
  • Pulse Landing light System
  • Rosen Sun Visors
  • Dual Davtron M877 digital clocks
  • Illuminated Chart Holders
  • ICS-200 Iridium Satellite phone system
  • Additional Cabin Windows
  • Entertainment System (DVD, C.D. changer, Cassette player)
  • TIA Oven
  • Braun 10 Cup Coffee maker
  • 110 Volt Outlets Lav and Galley
  • Fwd and Aft Bulkhead Monitors
  • --------------------------------------------------------------------------------
Interior
  • Bombardier Completion Center, Wichita Kansas, August 1999.
  • Refurbished at Bombardier Aviation Services, Windsor Locks, CT April 2005.

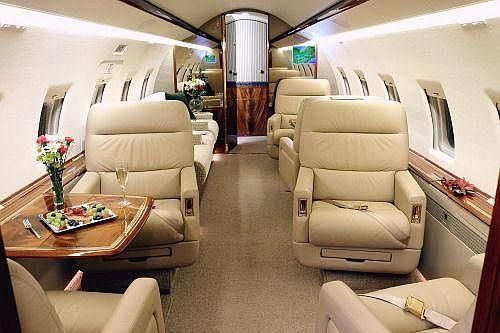

  • Ten (10) fireblocked passenger seats and one (1) Tosington jumpseat.
  • Four (4) executive club seats forward with foldout executive tables.
  • One four (4) place belted berthable divan aft, right side with life raft and life vest storage; opposite are two (2) executive club seats with foldout executive table.
  • Interior colors are beige.
  • New carpet September 2007.
  • Carpet runners throughout the cabin
  • --------------------------------------------------------------------------------
Exterior
  • Painted by Savannah Air Center May 2005
Remarks
  • 400/800 hr, 6/12/24 Month Inspections completed May 2010
  • 96 Month Airframe & Detailed Gear Inspection completed Sept 2007
  • Enrolled on Smart Parts Program; contract number 5407-71.
  • Weights
  • Gross Weight (Ramp): 48,300 lbs.
  • Max Take Off Weight: 48,200 lbs.
  • Max Landing Weight: 38,000 lbs.
  • Max Zero Fuel Weight: 32,000 lbs.
  • Empty Weight: 26,871 lbs.
  • Fuel Capacity: 19,852 lbs.
