Aircraft Summary
MNPS, RNP5, RNP10, RVSM Equipped, Honeywell MCS-6000 SATCOM, Magnastar C-2000 Flight Phone


    Airframe:
  • TOTAL TIME: 3791
  • LANDINGS: 1356

  • 1A check completed January 2009 at 3491 hours
  • 1C check completed September 2009 at 3686 hours
  • 8C check completed April 2010
  • Maintenance Tracking Program: CAMP
  • Aircraft enrolled on Smart Parts Program
  • --------------------------------------------------------------------------------
    Engine Specs:
  • LEFT ENGINE Rolls Royce BR710A2-20

  • Serial Number: 12183
  • Hours: 3791
  • Cycles: 1356
  • HSI and Overhaul: On Condition

  • RIGHT ENGINE Rolls Royce BR710A2-20

  • Serial Number: 12182
  • Hours: 3791
  • Cycles: 1356
  • HSI and Overhaul: On Condition

  • APU: Allied Signal RE-220 (GX), s/n P-138, 2813 hours, 2762 cycles.
  • --------------------------------------------------------------------------------

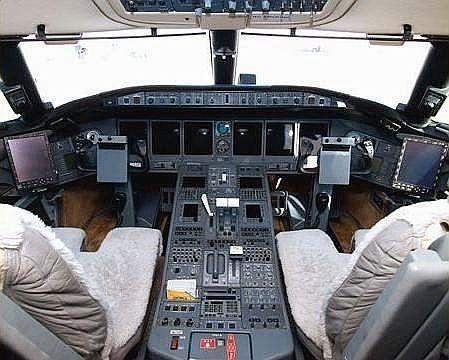

Avionics
  • Honeywell Primus 2000 XP Integrated Avionics System:
  • ? Six 8”x 7” DU-870 Color EFIS displays, 2 PFD / 2 EICAS / 2 MFD
  • ? Triple Honeywell LASEREF III Inertial Reference Units
  • ? Triple AZ-840 Micro Air Data Computers (MADC)
  • ? Quad Ameteck DA-810 Data Acquisition Units (DAU)
  • ? Dual NZ 2000 FMS with 5.2 software
  • ? Dual Honeywell GPS 550
  • Triple IC-800 Integrated Avionics Computers (IAC)
  • Primus 880 Color Weather Radar w/ Dual Control heads and Honeywell LSZ 860 Lightning Detector System
  • Dual Primus II RM-855 Radio Management Units
  • Triple Honeywell RCZ-833 Integrated COM Units FM Immunity and Mode S Transponders
  • Dual Honeywell (Dual RNZ-851 Integrated Nav Units FM Immunity Compliant
  • Dual Collins ALT-4000 Radio Altimeters
  • Dual Collins HF-9000 HF Communication System
  • Coltech CSD-714 SELCAL
  • Honeywell Mark V EGPWS w/ Windshear and RAAS
  • Honeywell TCAS II 2000 w/ change 7
  • Honeywell Cockpit Voice Recorder SSCVR
  • Honeywell Flight Data Recorder SSFDR
  • Dual CMC/CMA-1100 Electronic Flight Bags
  • --------------------------------------------------------------------------------
Additional Equipment
  • MNPS, RNP5, RNP10, RVSM Equipped,
  • Honeywell MCS-6000 SATCOM
  • Magnastar C-2000 Flight Phone
  • Honeywell VHF/SAT AFIS
  • Airshow Flight Information System
  • Artex 406Hz Emergency Location Transmitter
  • 2 LCD 18” bulkhead mounted monitors, 1 LCD 15” sidewall mounted monitor, 3 in-seat fold out 6.5” monitors and 1 in-seat fold out monitor.
  • 1 DVD player, 1 CD player and VCP
  • Securaplane Camera System
  • UV water filters
  • --------------------------------------------------------------------------------
Interior
  • Bombardier Completion Center, Montreal Canada; March 2001. Fireblocked; Fourteen (14) passenger cabin plus one (1) jump seat with audio panel and crew resting area. Fwd galley including a chiller, espresso/coffee maker, a microwave oven and convection oven. The fwd cabin features four (4) executive club seats with two executive foldout tables. The mid-cabin, right side features a credenza with 15” monitor mounted on the sidewall, left side a four (4) place conference group. The aft cabin consists of opposing berthable three (3) place divans. There are two (2) 18” monitors, mounted on the cabin bulkheads. Aft full lavatory and baggage compartment.
  • --------------------------------------------------------------------------------

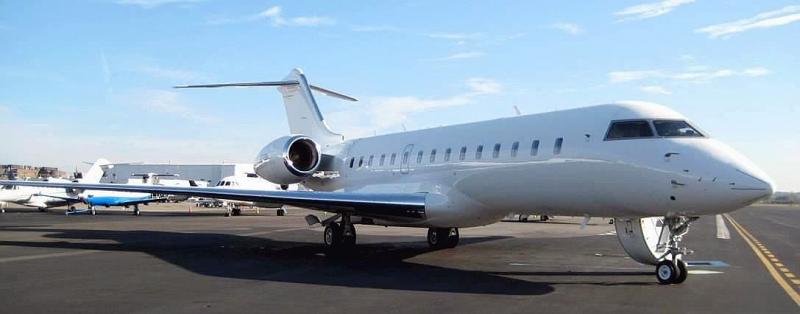

Exterior
  • Repainted July 2010; overall white.
  • --------------------------------------------------------------------------------
Remarks
  • Gross Weight (Ramp): 96,250 lbs
  • Max Take off Weight: 96,000 lbs
  • Max Landing Weight: 78,600 lbs
  • Zero Fuel Weight: 56,000 lbs
  • Empty Weight: 49,342 lbs
  • Fuel Capacity: 43,350 lbs
