Registration No: N3712V
Serial No: R1722261
Total Time: 4603 hours
Engine Time: 241 Hours SMOH. IO-360K (195 HP). (Aircraft Engine Overhaul Co. in August, 2004) Compression's at last annual were 70,72,72,74,74 and 74.
Prop time: 23 Hours SPOH McCauley C203/90DCA-14
Annual Due: 3/2009
Useful load: 955 lbs.

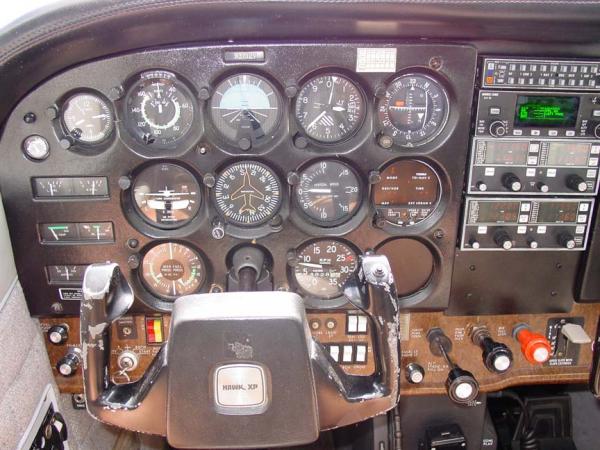

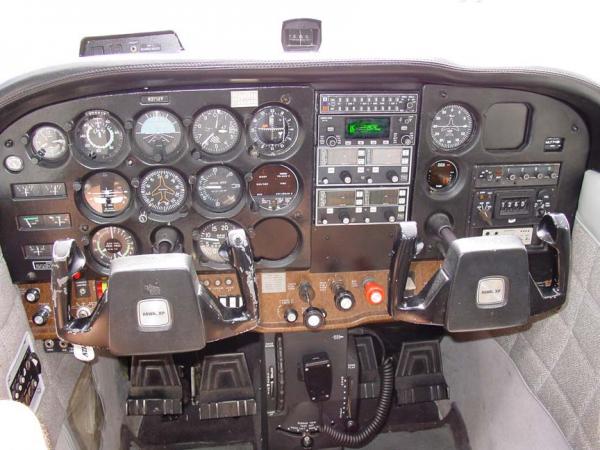

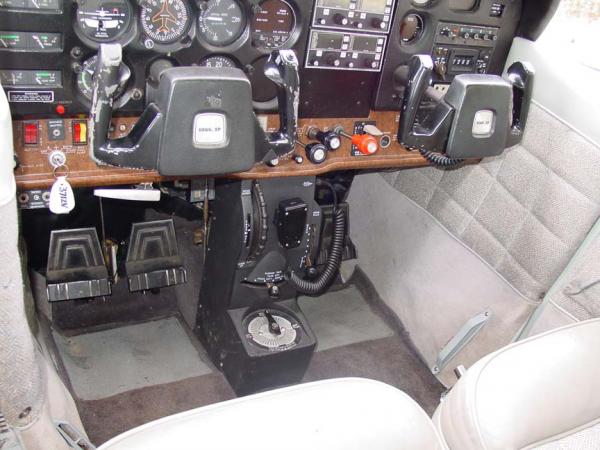

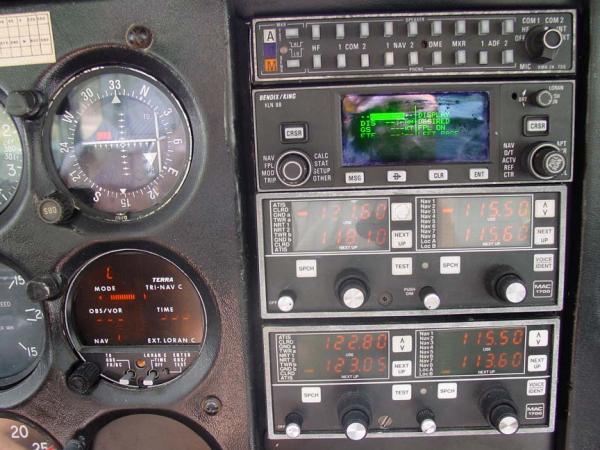

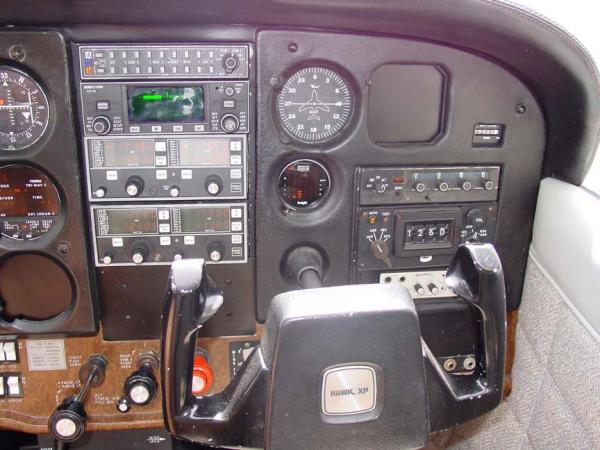

AVIONICS
King KMA 24 Audio Panel
Garmin GNC 250 XL GPS/Com
MAC 1700 Digital with 6 memory positions
King KI-209 Indicator w/Glide Slope
King KT 76A Transponder
Quiet Flite 2 place intercom
Dual avionics master switches
Electronic Checklist
Dual drilled yoke mounted push-to-talk buttons
Digital VOR/GS Indicator
True Airspeed Indicator
Post lights
AIRFRAME
52 gallons fuel capacity
NEW Engine mount
NEW heat shields on mount
Dual articulating seats
Dual openable windows
Shoulder harnesses
Small raised gas caps
Underwing courtesy lights
Rudder trim
Wingtip strobes
Horizontal stabilizer abrasion boots
Polished spinner
Brackett air filter
Outside Air Temp Guage
Pitot Heat
Wingtip nav lights
Dual Landing Lights
Bracket Air Filter
Full Flow Oil Filter
Wheel Pants
Alternator
Rotating beacon
Airwolf air/oil separator
Ground service plug
INTERIOR

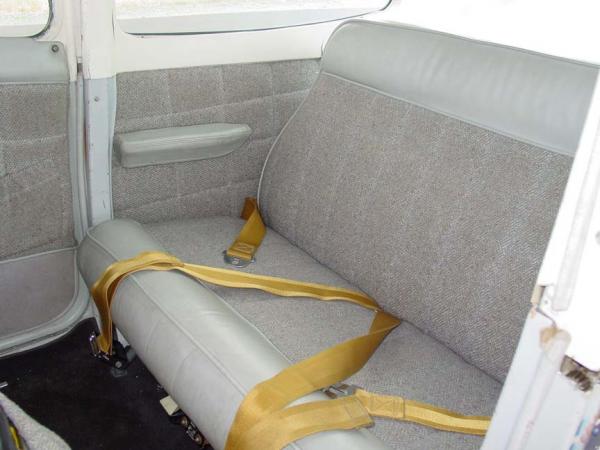

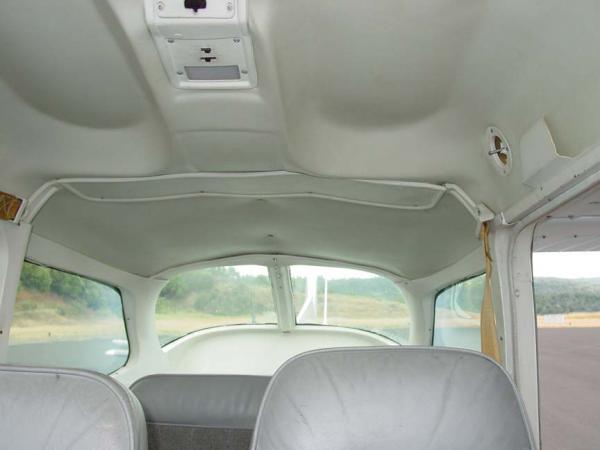

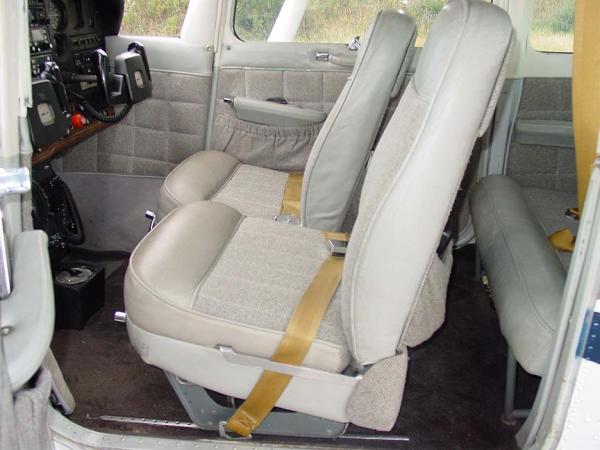

Deluxe vinyl and fabric grey interior in fair condition but showing some early wear. Front seats need to be re-upolstered. Rated 6 out of 10.
EXTERIOR

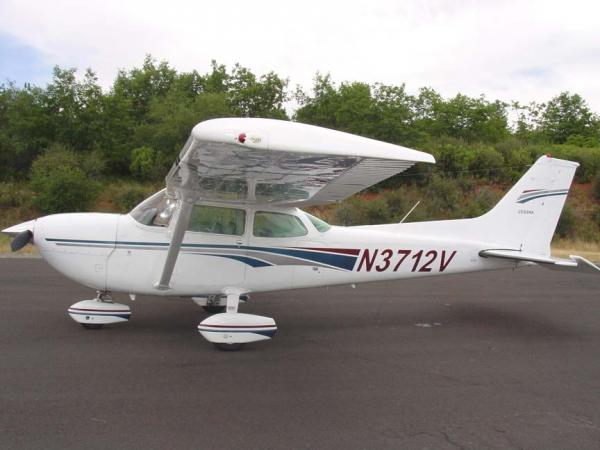

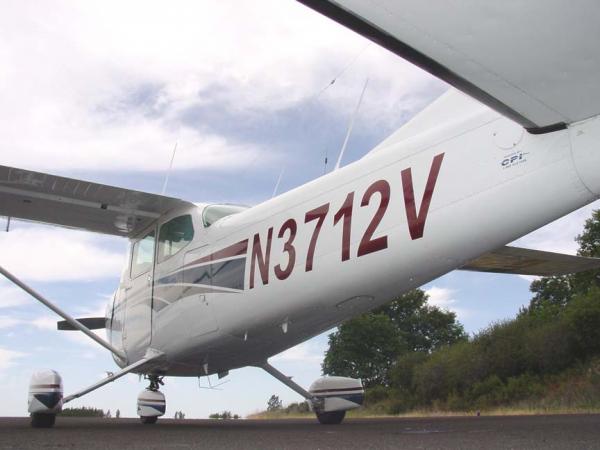

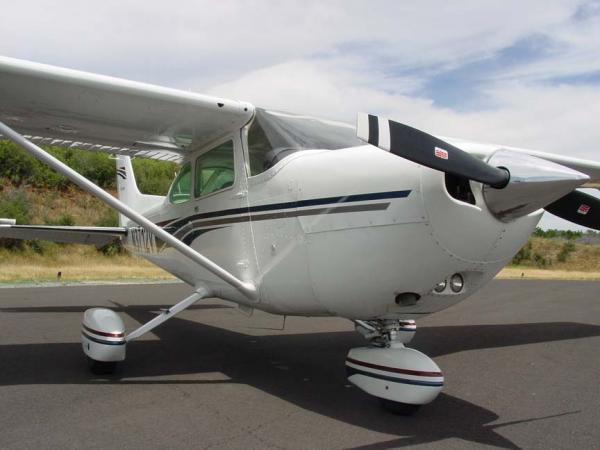

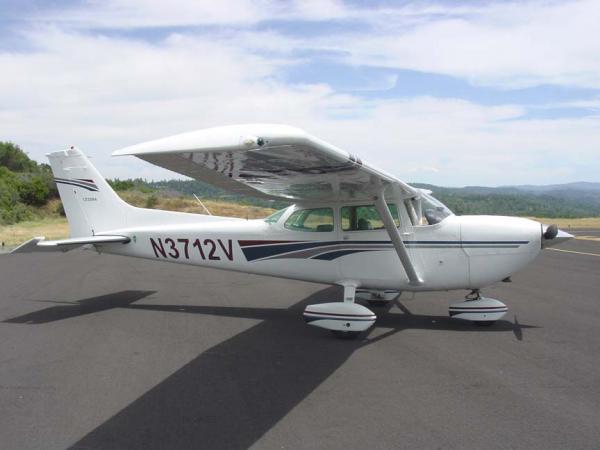

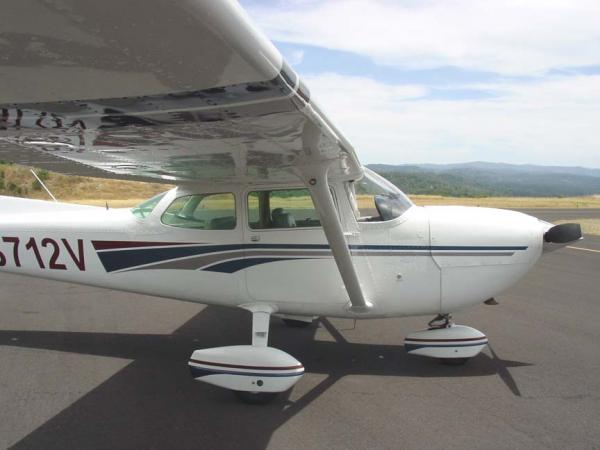

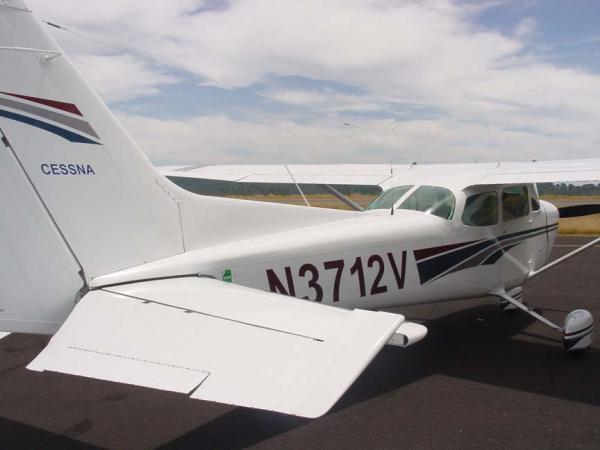

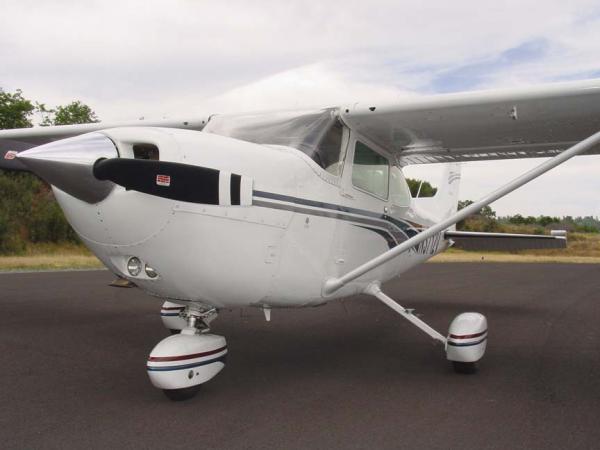

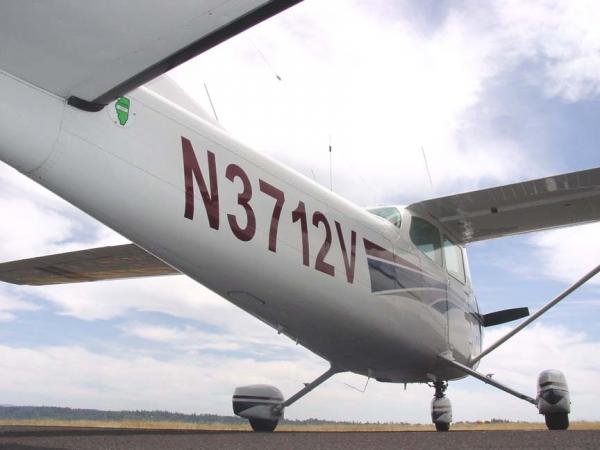

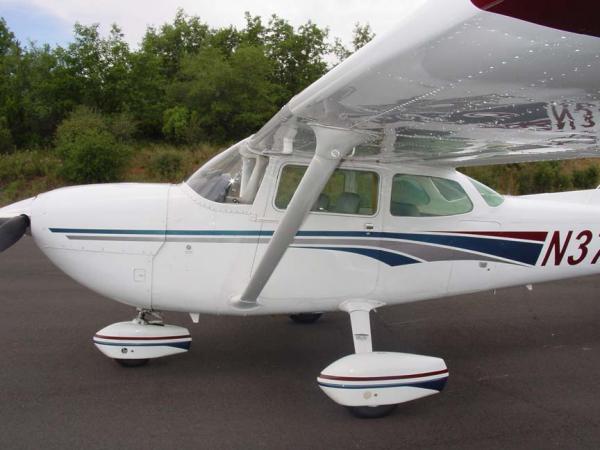

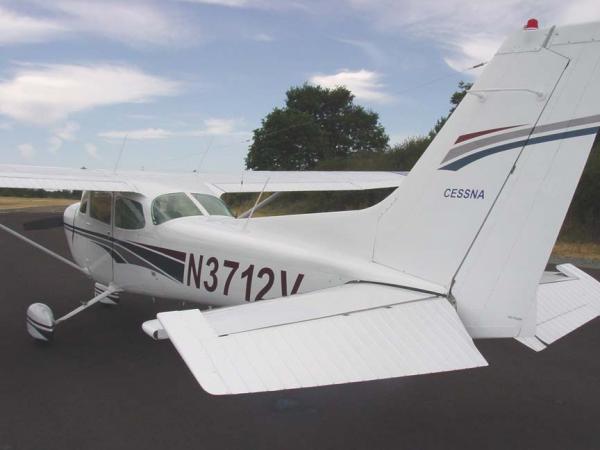

Overall bright white with factory 1997 172 paint scheme with three accent colors. Rated 7 out of 10.
HISTORY
Based in Arizona from new in 1977 to 1988. Then based in Bloomington IL until we bought it. Now it is in the hangers of Stancil Aviation with another 1977 Hawk XP. All Logs, No damage history, no hail.
|
| The values portrayed here are from manufacturers' data and are not representative of any particular aircraft. |
CESSNA R172K HAWK XP '77
| Engine: CONT IO-360-K |
75% Cruise: 130 kts |
Wingspan: 36.00 ft |
| Horsepower: 195 |
Stall: 46 kts |
Length: 27.17 ft |
| Rec'md TBO: 1500 hrs |
Range: 480 nm |
Height: 8.75 ft |
| |
Srv Ceiling: 17000 ft |
Empty Wt: 1557 lbs |
| |
Rate of Climb: 870 ft/min |
Gross Wt: 2550 lbs |
| Max Fuel: 52 gal |
|
|
Takeoff (over 50 ft obstacle): 1360 ft
Landing (over 50 ft obstacle): 1270 ft |
Takeoff: 800 ft
Landing: 620 ft |
|
|
|
|
 |
