Registration No: N185UM
Serial No: 18501685
Total Time: 12,943 hours (California Fish and Game use from new to 1984 for 11,000 hours)

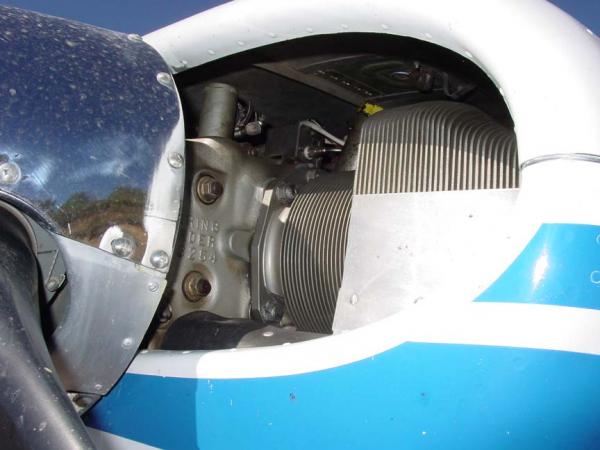

Engine Time: 1165 Hours SMOH. Phase III Heavy Bumpy Back Case. 10 hours Since Top Overhaul with ECI Cerminil Cylinders
Prop Time: 1165 SPOH two blade constant speed 86" propeller
Annual Due: 8/2006

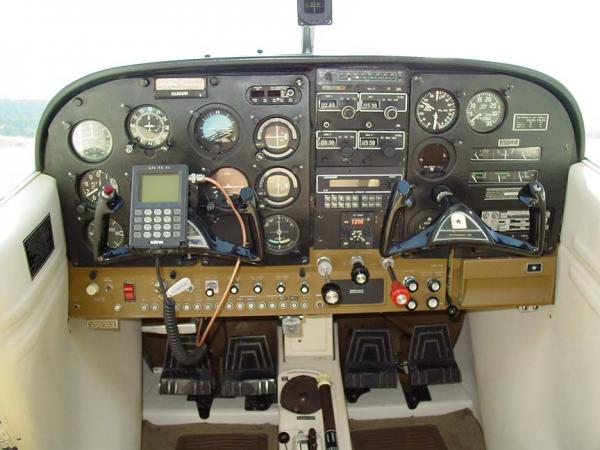

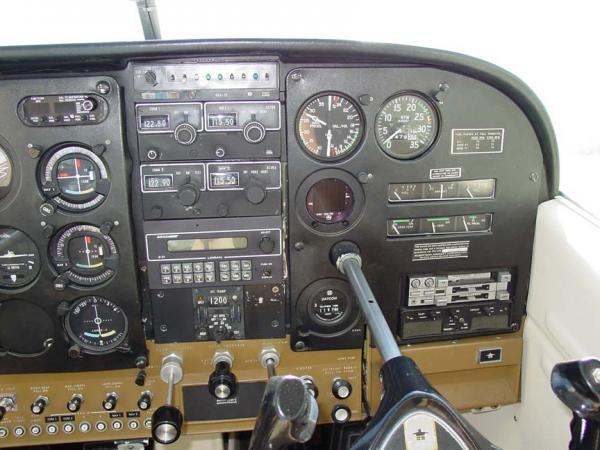

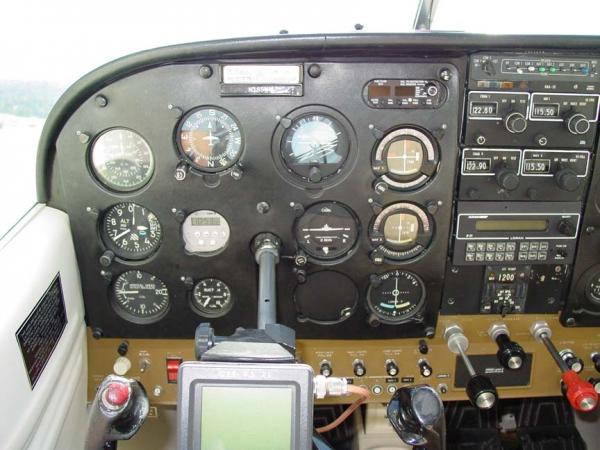

AVIONICS
Bendix King KMA-20 Audio Panel w/3 Light Marker
Bendix King KY-170 720 Channel Nav/Com
Bendix King KI-211 VOR/LOC/GS Indicator
Bendix King KY-170 720 Channel Nav/Com
Bendix King KI 201 VOR/Localizer Indicator
Bendix King Gold Crown KXP-750A Transponder
Narco AR-850 Encoder
Garmin 9-XL Moving Map GPS
Telex TC-200 4 Place Intercom
Pilot and Copilot Push-to-Talk
Narco ELT-10
Shadin Miniflow-L Fuel Flow Conputer/Totalizer
JPI EDM-700 Engine Analyzer
Avionics Master Switch
AIRFRAME
NO FLOAT KIT
10 hours Since Top Overhaul with ECI Cerminil Cylinders

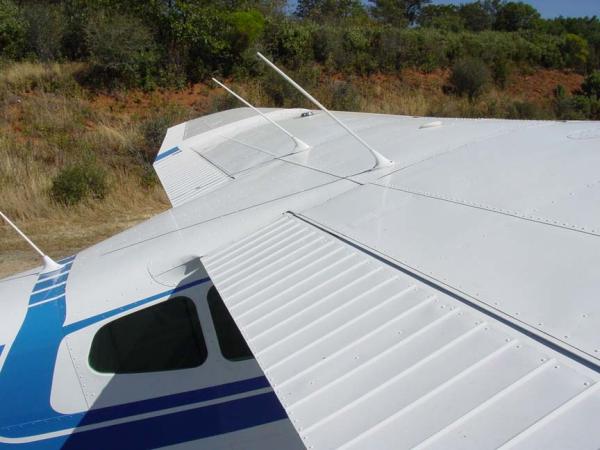

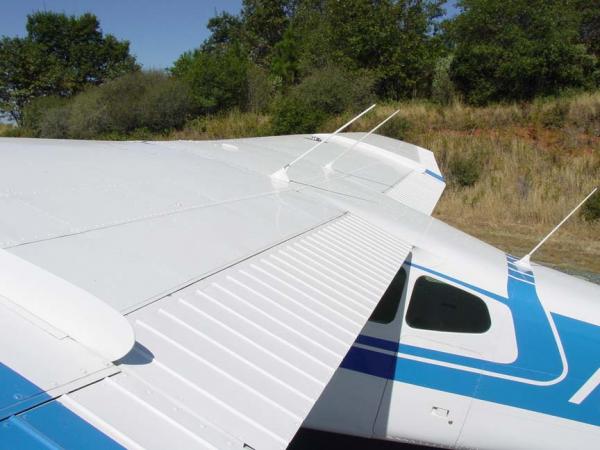

Roberson STOL Kit (Temorarily disconnected)
84 Gallon Long Range Fuel (New Bladders)
BAS Tailcone lift handles

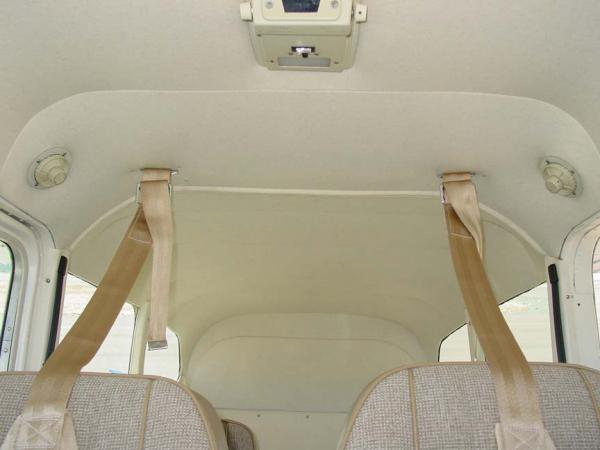

New Seat Belts and Shoulder Harnesses
Aerostop Seat Stop
Monarch Gas Caps
Whelen 3 Light Strobe Lighting System
Courtesy Lights
Post Lights
New Seat Rails

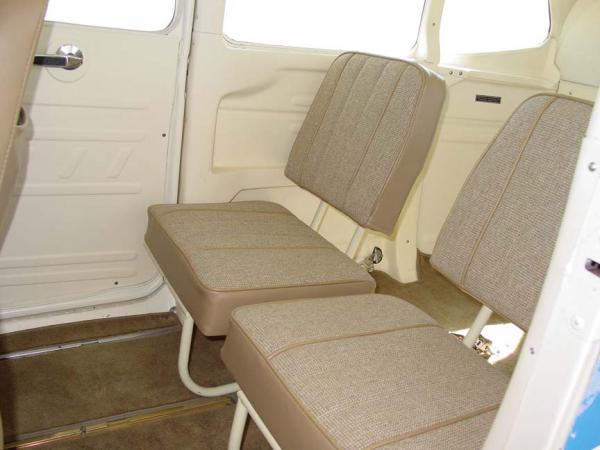

Cessna Jump Seats

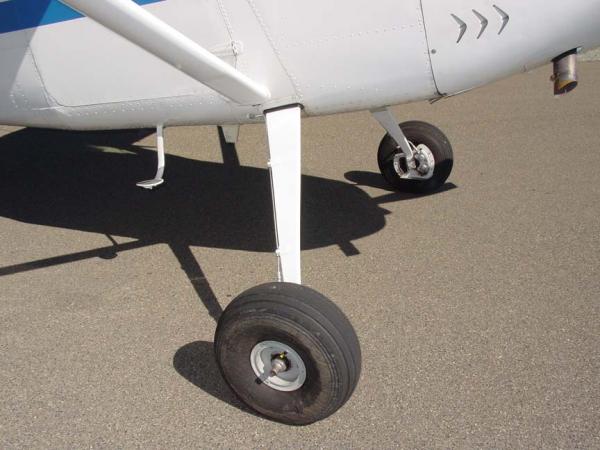

P-Ponk Gear Beef-up Kit
Cleveland Wheels and Brakes
800 Mains and 8" Tail Wheel
Large Non-Congealing Oil Cooler
Rear Seat Ventilators
Brackett air filter

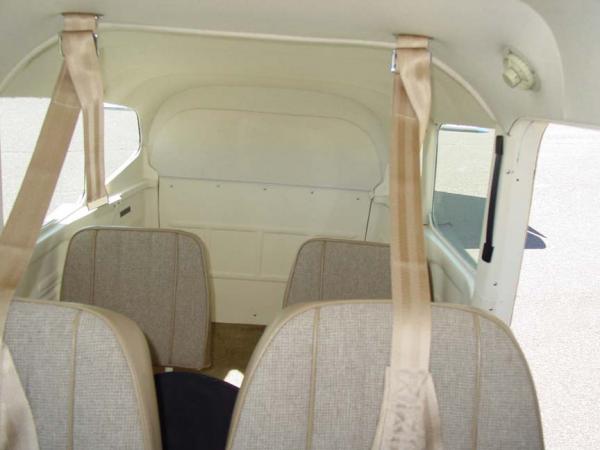

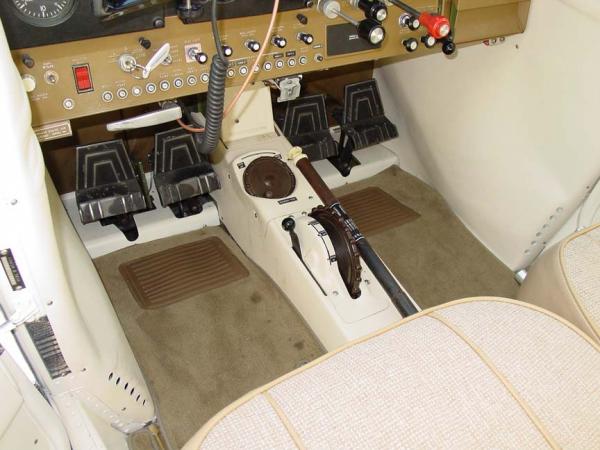

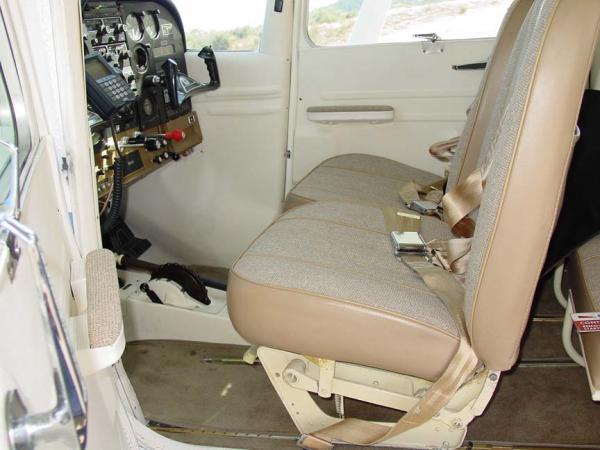

INTERIOR

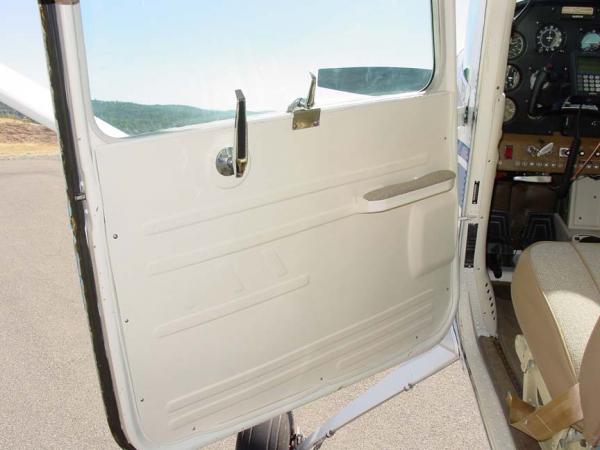

Utility plastic side panels. Fabric seats. Overall rated 7 out of 10.

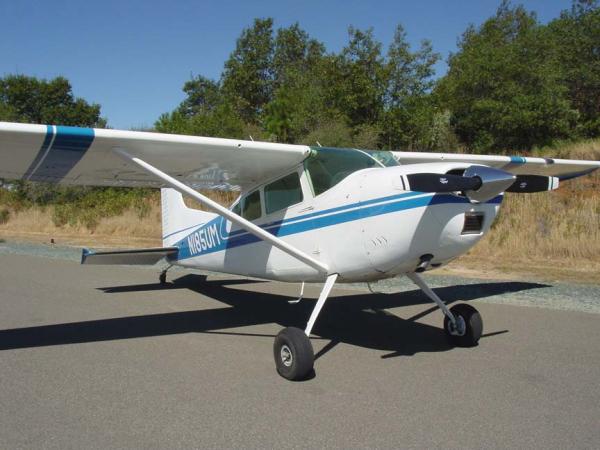

EXTERIOR

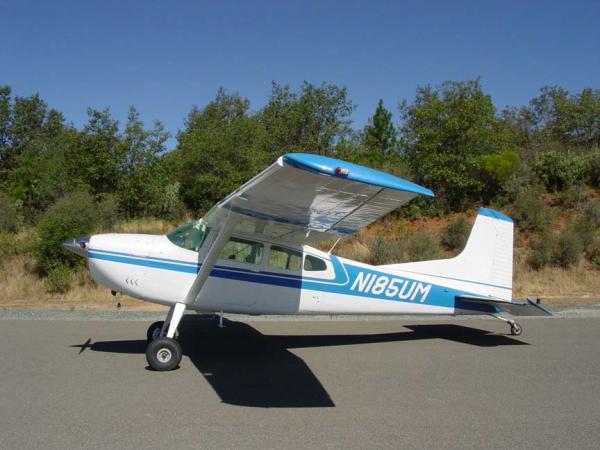

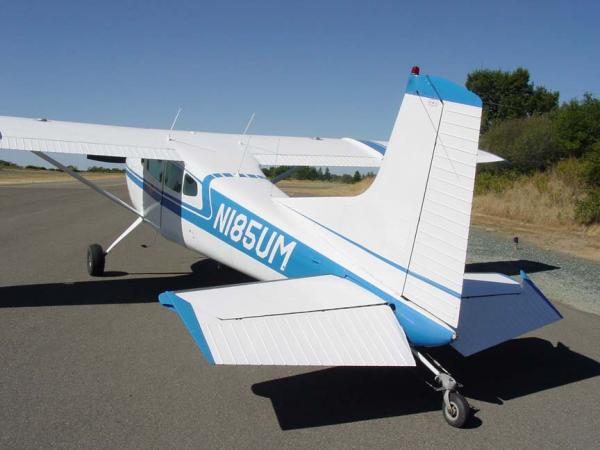

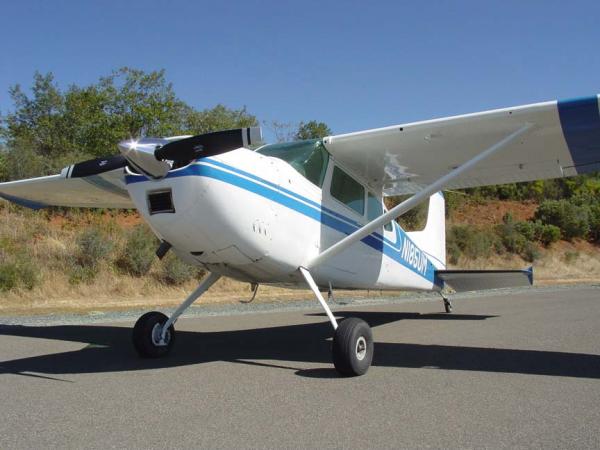

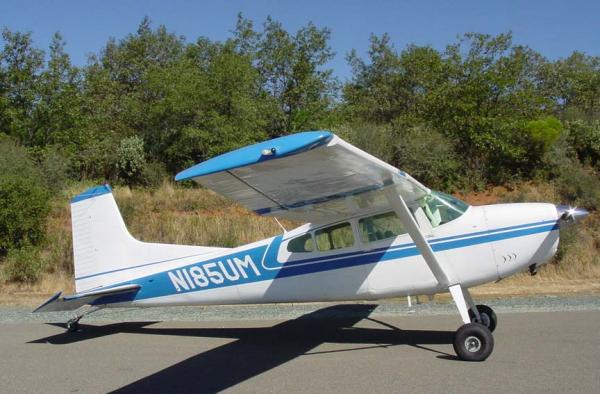

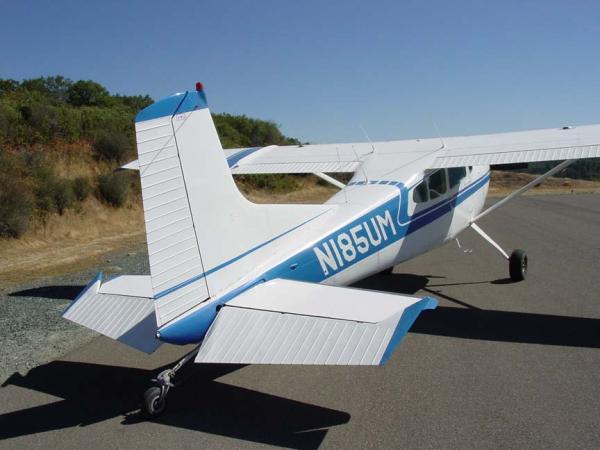

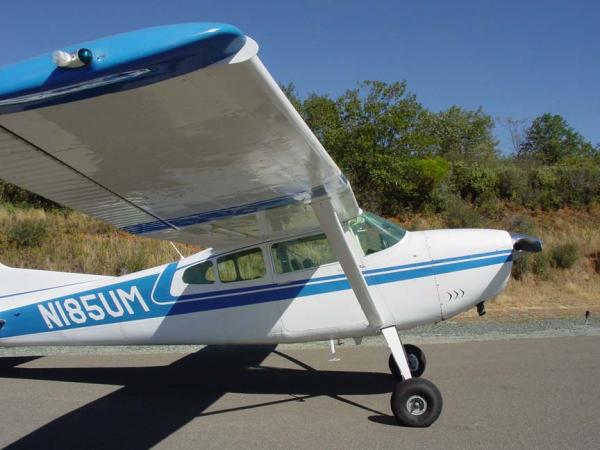

Overall white with Light and dark blue accenst in a traditional scheme. Rated 7.5 out of 10.
HISTORYCalifornia Fish and Game operated it from new until 1984. This was for over 11,000 hours in Sacramento. Current owner bought it from the State and has owned it ever since. He is an Ex-President of the 180/185 club. He is also an IA and A&P and is an Engineer for AeroJet Corp' The aircraft has no Damage and Logs go right back to the beginning.
PRICEReduced to $104,500 USD
|
| The values portrayed here are from manufacturers' data and are not representative of any particular aircraft. All specs are at gross weight |
CESSNA A185E SKYWAGON '70
| Engine: CONT IO-520-D |
75% Cruise: 146 kts |
Wingspan: 35.83 ft |
| |
Stall: 51 kts |
Length: 25.75 ft |
| Rec'md TBO: 1700 hrs |
Range: 573 nm |
Height: 7.75 ft |
| |
Srv Ceiling: 17150 ft |
Empty Wt: 1575 lbs |
| Std Fuel: 65 gal |
Rate of Climb: 1010 ft/min |
Gross Wt: 3350 lbs |
| Max Fuel: 84 gal |
|
|
Takeoff (over 50 ft obstacle): 1365 ft
Landing (over 50 ft obstacle): 1400 ft |
Takeoff: 770 ft
Landing: 480 ft |
|
| |
|
 |
