Clean Low Time Aircraft - Well Maintained - Two Owners Since New - Always Hangared - Damage History in 1978 - Complete Logs Since 1987 to Present – Fast 146 Kts - Never a Trainer - Naval Aviator Owner moving to Iraq - Must Sell


Airframe:
USEFUL LOAD:
1137.05 Lbs

MAINTENANCE: Highlights of Last 10 Years
2007 New Main Tires - New Brake Discs and Pads
2006 Avionics Upgrade (GNS-430, KMD-150, SL-60, GAI-106A, AK-450, Pro-G Hub)
2005 New Dry Air Vacuum Pump - Overhauled Directional Gyro - New Battery - New Seat Stops
2004 New Fuel Cells - ACF-50 Corrosion Treatment - Prop Balanced - Replaced Seat Rails
Overhauled #4 Cylinder
2003 Overhauled Artificial Horizon - Overhauled Magnetos
2002 New Turn Coordinator - New Aileron Rod Ends - New Nose Wheel Bearings and Races
2001 New Airspeed Indicator - Overhauled #1 Cylinder
2000 Annual Uneventful
1999 Replaced Oil Temperature Gauge and Sender
1998 Installed Engine (G&N Overhaul) - Overhauled Engine Mount - Installed New Motor Mounts
New Scat Hoses, Fuel Lines, and Oil Lines - Overhauled Engine Baffling - Overhauled Prop
Overhauled Prop Governor - Installed Standby Vacuum System (STC) - New Plexiglas
Installed New Spin-On Oil Filter (STC) - Installed New Ventube Air Vents (STC)
1997 Installed New Vertical Compass (PAI-700) - Overhauled Directional Gyro

Engine Specs:
Continental O-470-U S# 469681
(230 HP - 1500 Hrs TBO)
980 Hours SMOH – G&N Engines - 1998

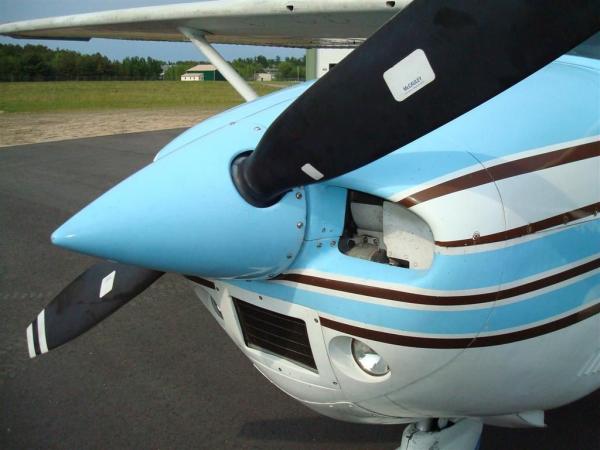

Prop(s):
McCauley C2A34C204-C S# 788161
(Two Blade Metal - 2400 Hrs / 6 Yrs. TBO)
980 Hours SPOH - Atlanta Propeller – 4/98

Modifications/Conversions:
Horton Speed Kit
Flap Gap Seals
Spin-On Oil Filter

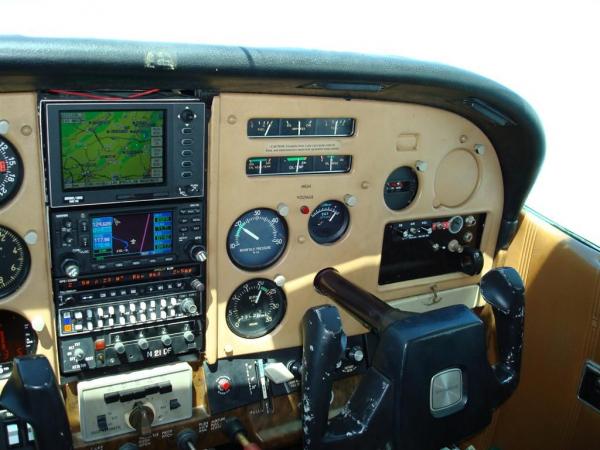

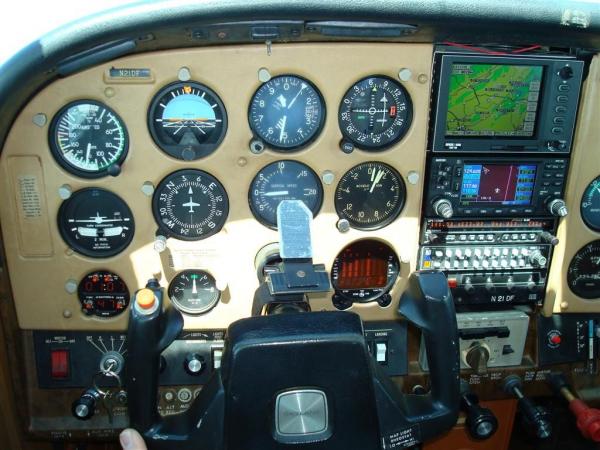

Avionics/Radios:
Garmin GNS-430GPS /Nav /Com (Color Moving Map) IFR Approach Certified
GarminGI-106ANav Indicator #1 (GPS - VOR - GS - ILS)
ApolloSL-60Comm / GPS #2
KingKMD-150Multi Function Display w/ Color Moving Map
KingKT-76Transponder w/ Encoder
KingKMA-24Audio Panel w/ 3 LMB
Cessna200ANavomatic Autopilot (Tracker)
Ameri-KingAK-450ELT w/ Panel Switch (Satellite Detection & Voice Transmission)

Additional Equipment:
Horton Speed Kit
Flap Gap Seals

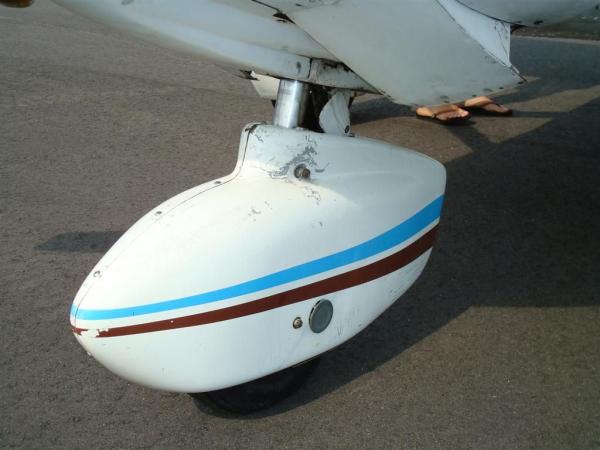

Nose Wheel Speed Fairing
Standard Fuel (54 Gallons Usable)
External Comm Antenna Jack
True Airspeed Indicator
Vertical Card Compass
Accelerometer “G Meter”
Instrument Panel Post Lights
Heated Pitot
Alternate Static System
JPI EDM-701FF Graphic Engine Monitor & Fuel Flow
Sigtronics SPA-400 Intercom w/ IPOD Music Input
Spin-On Oil Filter
Davtron 811 Digital Clock / Timer
Wheel Fairings
SVS-III (Standby Vacuum System)

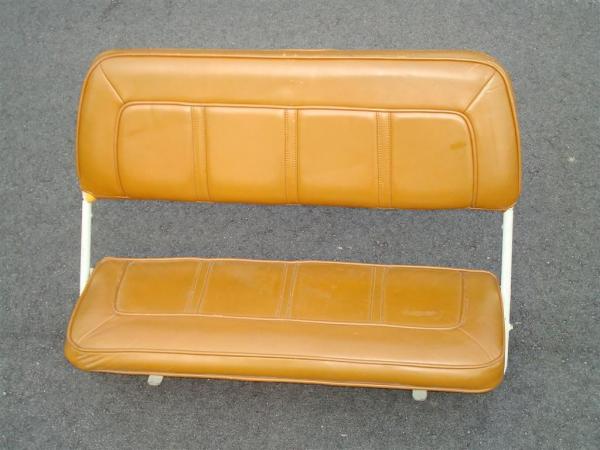

5th Seat (Jump Seat)
Pro-G Hub (Central Avionics Wiring Hub)
ACF-50 Corrosion Treatment
Pilot & Co-Pilot Articulating Seats
12 VDC Power Output Jack

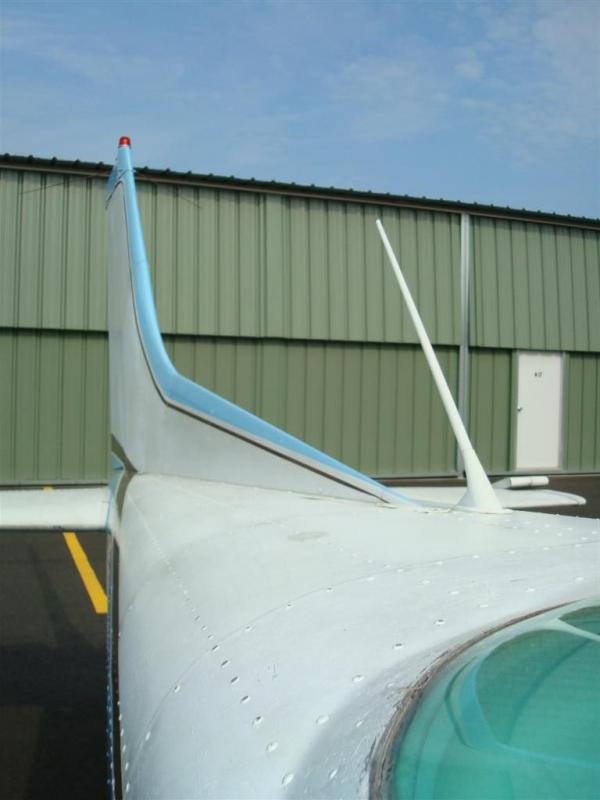

Flashing Tail Beacon
Ventube Air Vents
Turn Coordinator
EGT

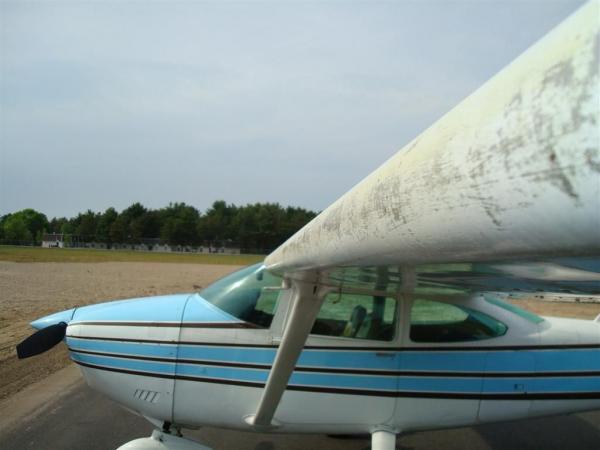

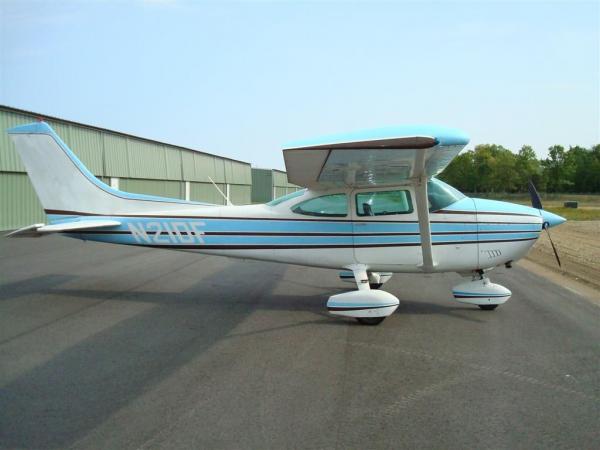

Exterior:

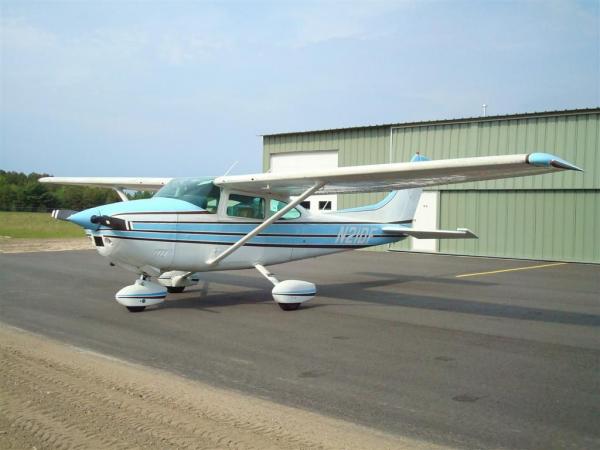

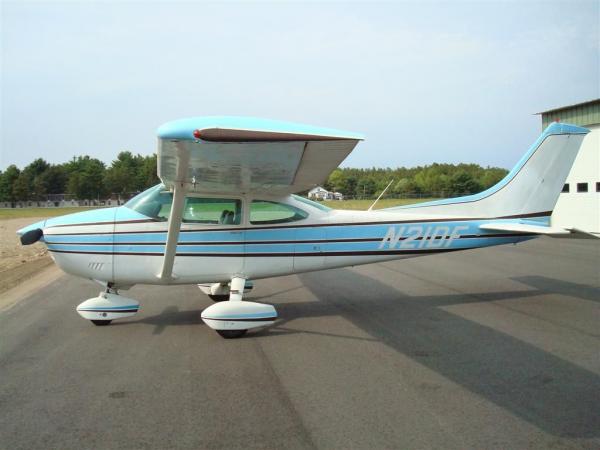

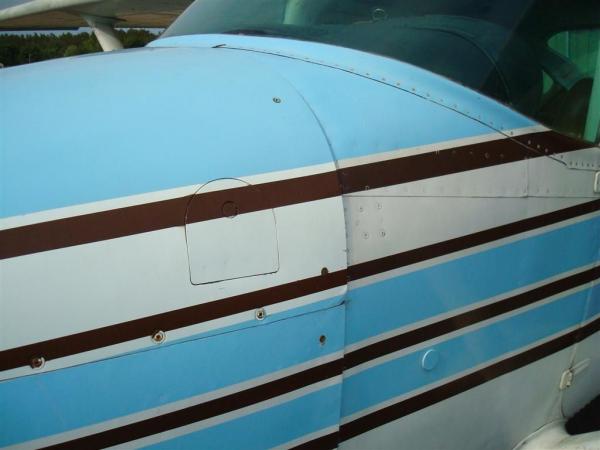

Matherhorn White and Powder Blue w/ Dark Brown Accent Stripes – Poor Condition (4/10)

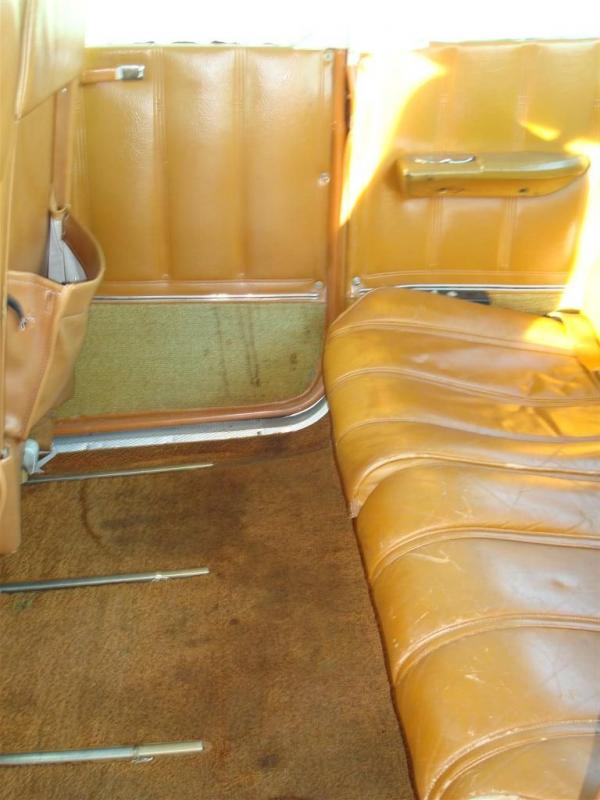

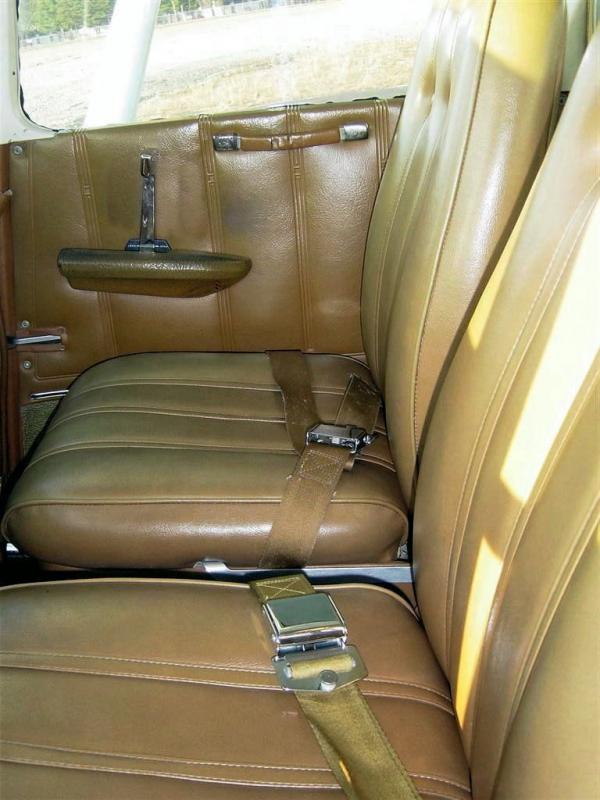

Interior:

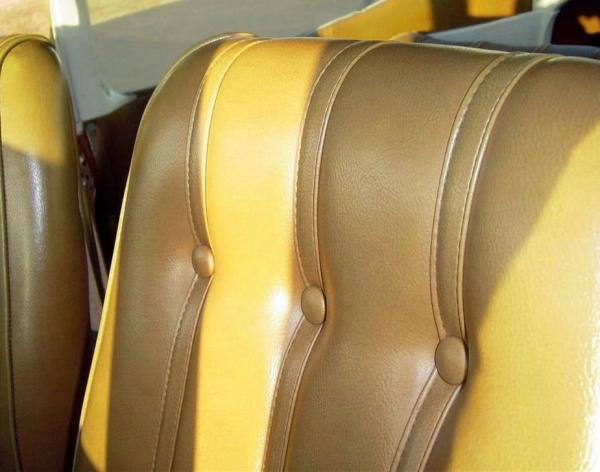

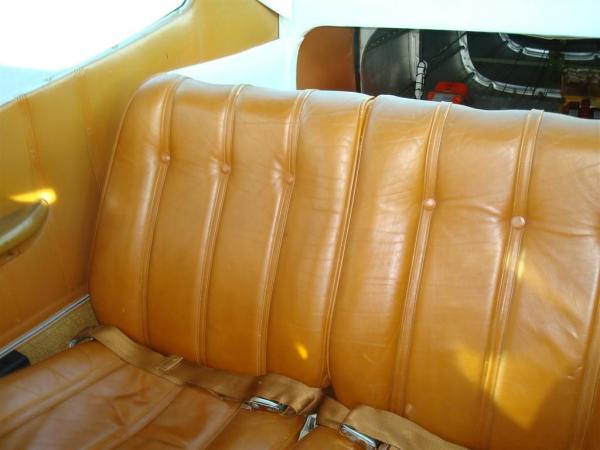

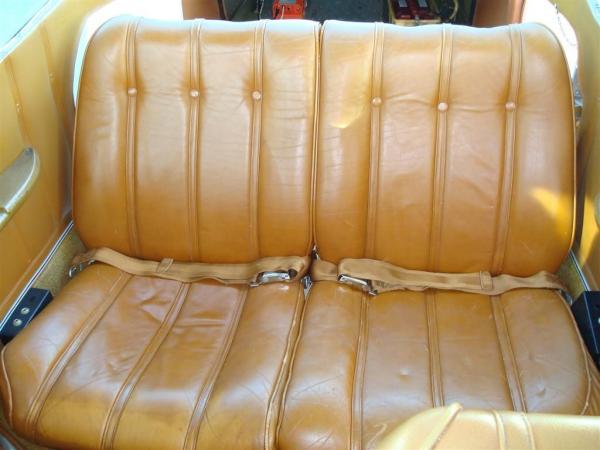

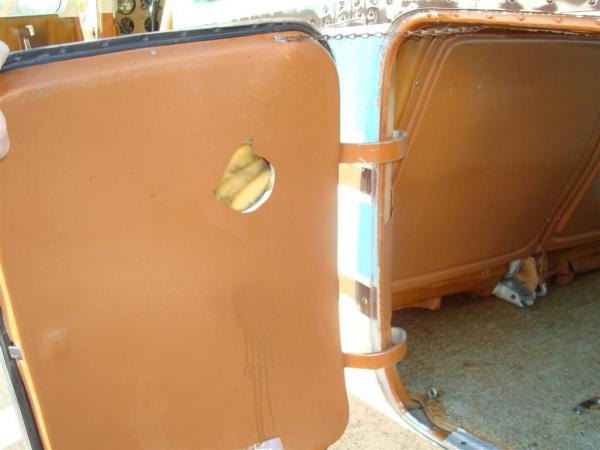

Original Brown Leather w/ Brown Carpet and Tan Seatbelts – Pilot & Co-Pilot Seats
Re-upholstered in 1990 - Very Good Condition (7/10)

Inspection Status:
Annual Due: 07/09
Transponder Due: 07/09
Static System Due: 07/09
ELT Battery Due: 06/09
