| Equipment Specifications |
 |
|
| Year |
2004 |
| Manufacturer |
CESSNA |
| Model |
CITATION EXCEL |
| Price |
|
| Location |
Parsippany, New Jersey |
| Condition |
USED |
| Serial Number |
560-5369 |
| Registration Number |
N504PK |
| Total Time |
2084 Hours |
| Number Of Seats |
8 |
| General Information |
| Aircraft available for sale or lease, Sale Price $8,995,000, Call for Lease Options, On Cescom, Phase I-V scheduled Sept. 2008. |
| Detailed Description |
Airframe:
2084 Hours, Landings 1911
Engine Specs:
P&W 545A
Both Engines: 2084 Hours, Estimated Cycles: 1911
Avionics/Radios:
FMS/GPS: Honeywell Primus 1000 integrated w/CD-820 & permanent DTU
COMM: Dual Honeywell TR-833
NAV: Dual Honeywell NV-850
ADF: Dual Honeywell DF-850
DME: Dual Honeywell DM-850
XPNDR: Dual Honeywell XS-852B Mode S Non-diversity Transponder
RAD/ALT: Honeywell AA-300
HF COMM: Honeywell KHF-950
ELT: Artex ELT 110-4
FDR/AP/EFIS: Honeywell P-1000 Integrated FD/AP & 3-tube EFIS
RADAR: Honeywell Primus 880 Color
AFIS: Honeywell
EGPWS: Honeywell Mark V EGPWS
TCAS: TCAS 2000 – L3 Comms
AUDIO AMPLIFIER: Dual Honeywell AV-850A Digital Audio Amplifier
CVR: L3 Communication FA2100
PHONE: Magnastar C-2000 (3 handsets)
Additional Equipment:
Airshow 400, Airshow Cabin Briefing Controller, Concorde Sealed Lead Acid Battery (RG380E/44LA3). Flashing Annunciator in the center of the instrument panel to alert crew the APU generator is off line, Engine Electronic Chip Detector Test and Lights in Tailcone.
Year Painted:
2004
Exterior:
Overall white with blue and yellow stripes.
Year Interior:
2004
Interior:

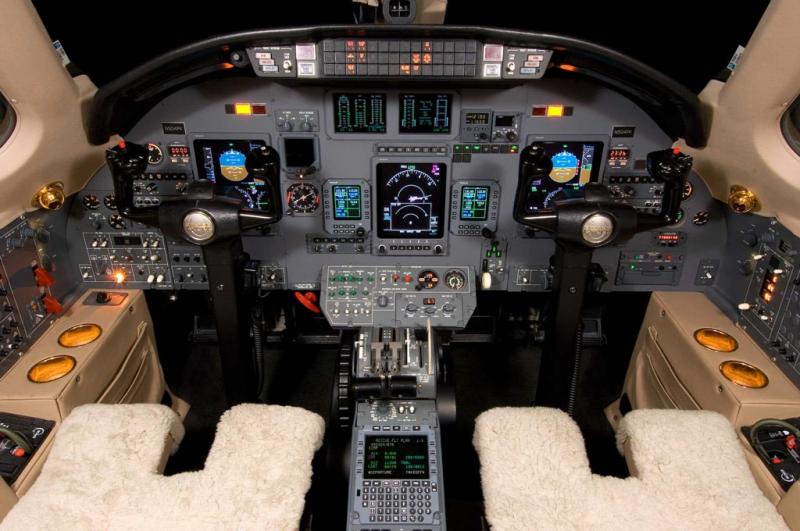

The cockpit is equipped with standard crew seats, monorail sun visor, LH & RH 3-book navigation cases, Magnastar telephone handset, and special smoke goggles stored in a pouch on the forward side of the cockpit divider. The cockpit closure is a one piece, half-length curtain.

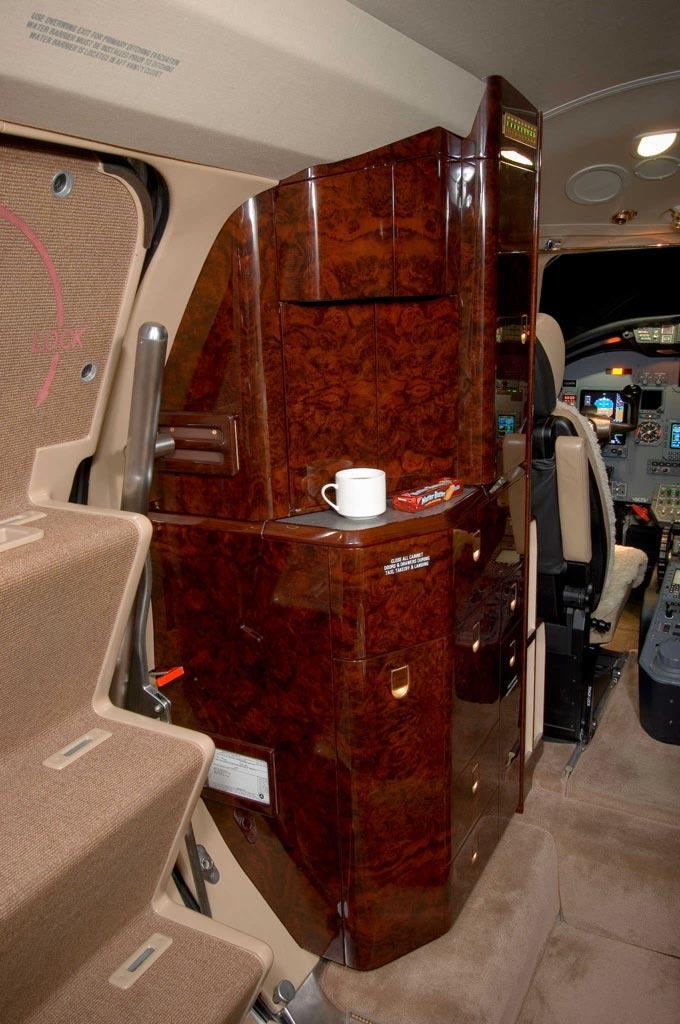

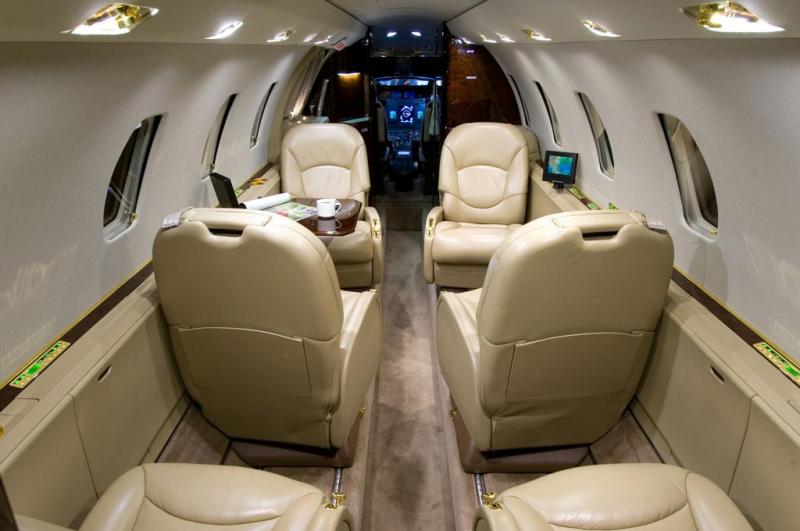

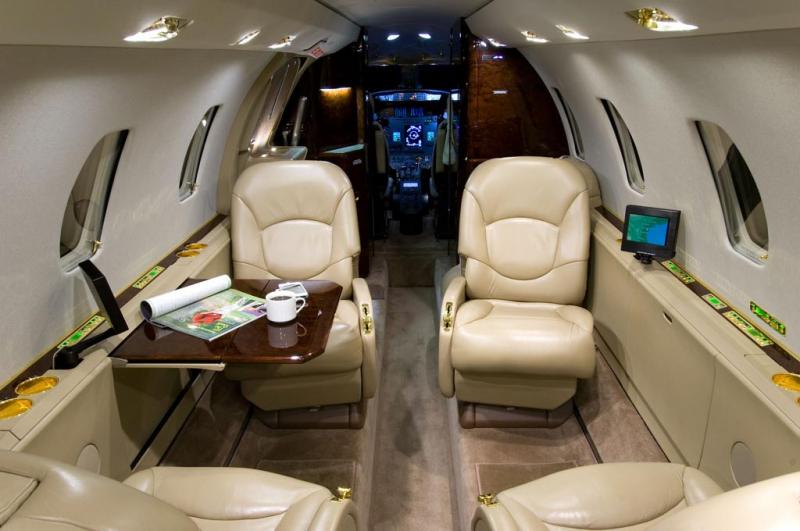

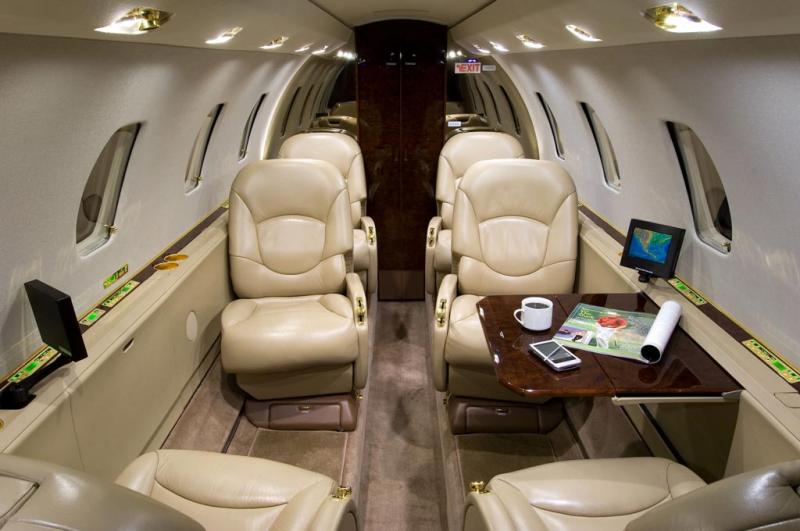

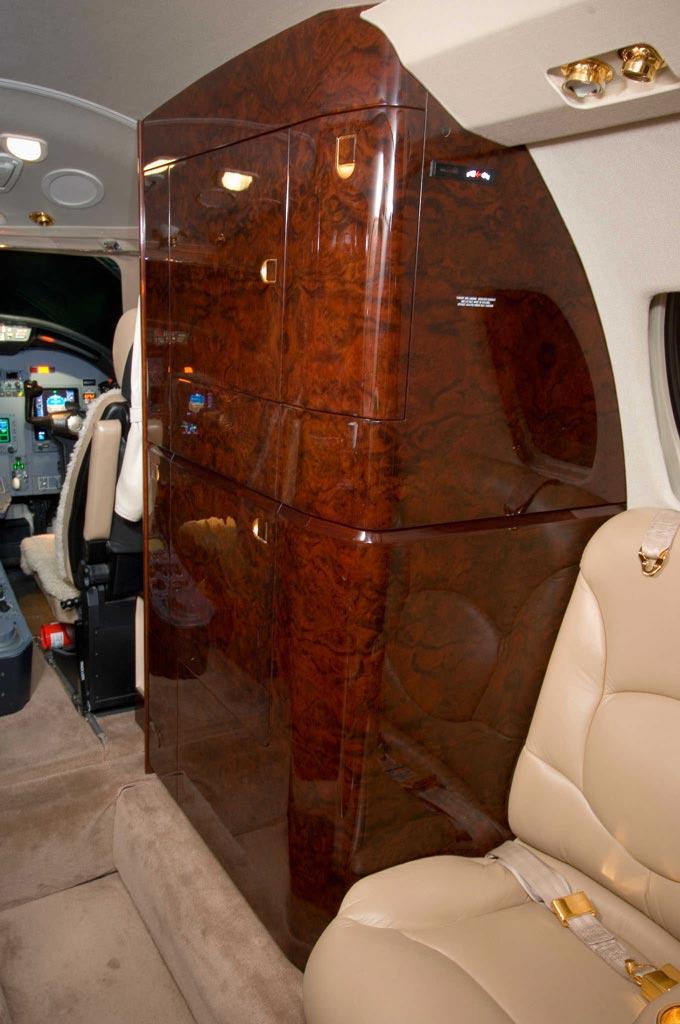

The 8-seat cabin is configured with a center club seating arrangement with six pedestal seats and a RH forward side-facing seat, a LH forward refreshment center, a RH forward closet with dual DVD, DVD storage, Airshow 400 and storage, and a 110 VAC outlet, a VIP location at number 6 seat including Magnastar Phone handset, 110 VAC electrical outlet and fax/data port, and remote cabin temperature controller, a second electrical outlet, fax/data port and telephone handset at the number seven seat, video monitor provision at all pedestal seats with (4) portable 5.6” Rosen monitors, 2 full-size executive tables with veneer table tops in the center club area, 2 slim-line executive tables with veneer table tops at the aft two seats, partial floor tracking at the number 5 and 6 seat locations, a RH aft magazine rack, and mirror treatment on the upper portion of the forward side of the aft dividers. Additional equipment includes crew seat sheepskin slipcovers which are sewn in place and over-water life vests.
Inspection Status:
On CESCOM. Phase I-V inspections scheduled for completion early October 2008. |
|
|
 |
