Aircraft Summary
Inspection Documents 2, 3, 4, 7 and 9 thru 14 completed August 2010, CESCOM Computerized Maintenance Tracking Program


    Airframe:
  • TOTAL TIME: 1165 hours
  • LANDINGS: 567
  • --------------------------------------------------------------------------------
    Engine Specs:
  • Left Engine:
  • Rolls Royce AE3007C1
  • Serial Number: 330451
  • Hours: 1165
  • Cycles: 567
  • Overhaul Due: 4500

  • Right Engine:
  • Rolls Royce AE3007C1
  • Serial Number: 330450
  • Hours: 1165
  • Cycles: 567
  • Overhaul Due: 4500
  • Engines enrolled on Rolls Royce Corporate Care Program.

  • APU: Honeywell 36-150CX; S/N P-334, 586 hours.
  • --------------------------------------------------------------------------------
Avionics

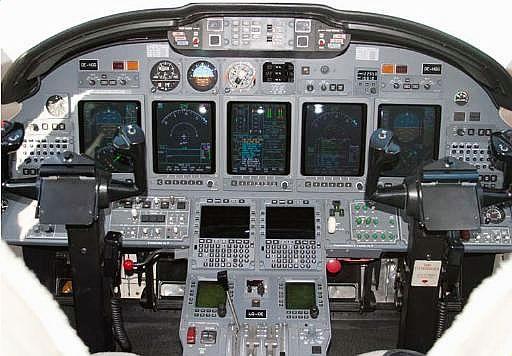

  • Honeywell Primus 2000 Integrated Flight Computer System:
  • Five Tube (8" X 7") EFIS display System
  • Dual AZ-840 Digital Air Data Computers
  • Engine Indication/Crew Alerting System (EICAS)
  • Primus 880 Color Weather Radar
  • Dual P-2000 Flight Management System w/GPS
  • Dual Honeywell LASEREF IV
  • Honeywell AFIS
  • Primus II Integrated Radios with Dual RCZ-833K Comms with 8.33 spacing, Dual RNZ-850 Navs, ADF, Dual DME and Dual Mode S Transponders w/ Enhanced Flight ID
  • Honeywell TPU-67A TCAS II Enhanced Surveillance w/Ch 7
  • Dual King KHF-950 HF Radios w/SELCAL
  • Honeywell EGPWS
  • Fairchild FA2100 Cockpit Voice Recorder (120-minute)
  • Provisioned for Flight Data Recorder
  • 406 MHz Emergency Locator Transmitter
  • --------------------------------------------------------------------------------
Additional Equipment
  • RVSM, RNP-5, RNP-10, MNPS
  • JAA Provisions Package
  • 76 cu/ft Extended Range Oxygen Supply
  • Precise Flight Pulselight System
  • DeVore Tail Logo Floodlight
  • Dual Nickel-Cadmium Batteries
  • EROS Oxygen Masks
  • Universal TT-5000 Aero-1 SATCOM System
  • Airshow Network

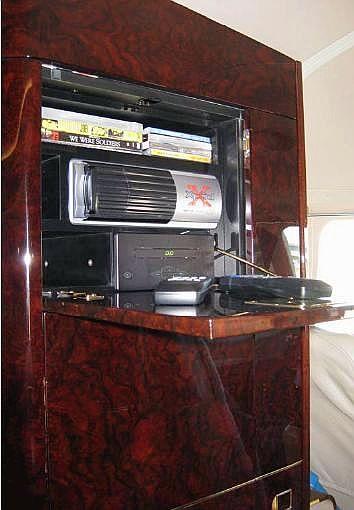

  • DVD Player w/Remote Control

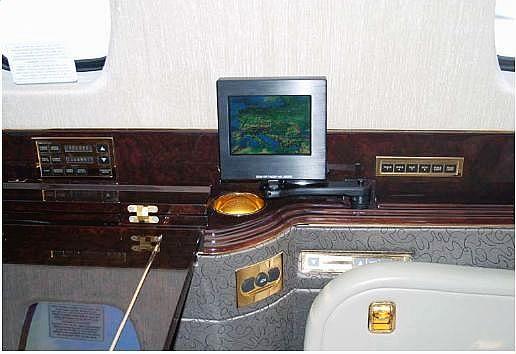

  • Four 5.6 Pedestal Seat Monitors
  • 110 VAC Cabin & Lavatory Outlets
  • Single-Point Refueling System
  • Thrust Reversers
  • --------------------------------------------------------------------------------
Interior
  • Original interior completed June 2004.

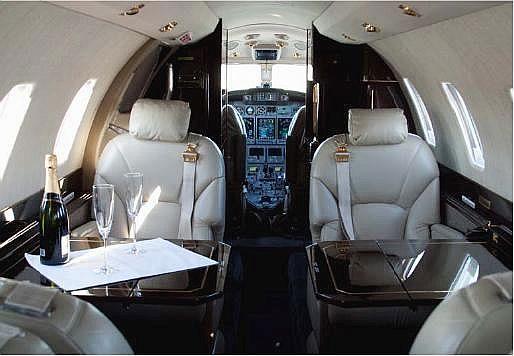

  • The cabin features an eight (8) passenger interior.

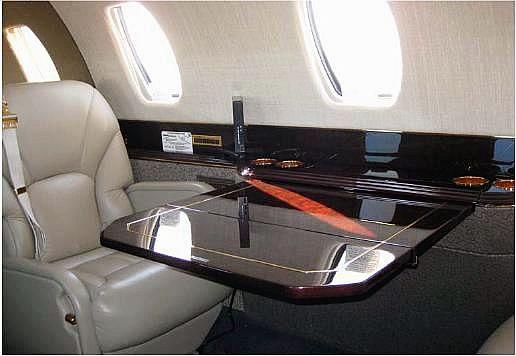

  • Forward and aft cabin have double club seating configuration with four Walnut Burl executive tables.
  • The overhead and window reveals are covered in light gray fabric.
  • The lower sidewall is covered in a dark gray fabric with matching cut-pile carpet.
  • The cabinetry is finished in Walnut Burl veneer with satin gold finished hardware.
  • Additional features include a L/H forward closet and large R/H forward galley.

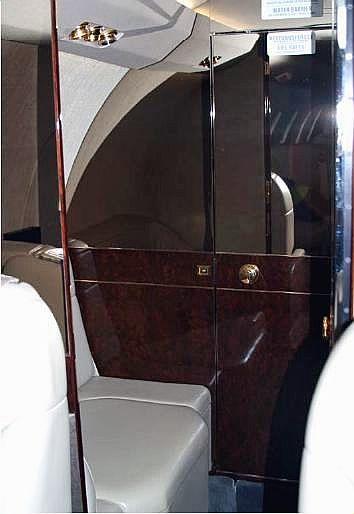

  • Aft lavatory with sink and vanity cabinet.
  • Cabin seats are fireblocked.
  • --------------------------------------------------------------------------------
Exterior
  • Original paint completed June 2004.

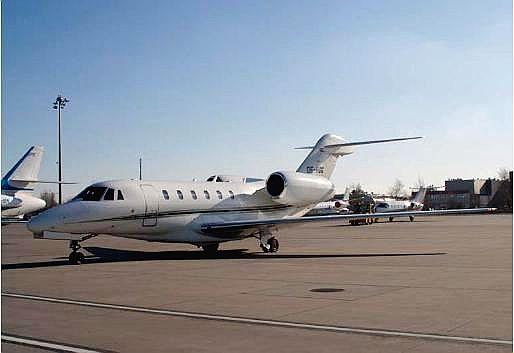

  • The aircraft is white with silver and black accent stripes.
  • --------------------------------------------------------------------------------
Remarks
  • Gross Weight (Ramp): 36,400 lbs
  • Max Take off Weight: 36,100 lbs
  • Max Landing Weight: 31,800 lbs
  • Zero Fuel Weight: 24,400 lbs
  • Current Empty Weight: 21,560 lbs
  • Fuel Capacity: 13,000 lbs
