| General Information |
| Collins Pro Line 21 EFIS System, Part 135, Extended Rudder Travel Mod, RVSM, FM Immunity, XM Weather |
| Detailed Description |
Airframe:
Total Time: 7,396.8 hrs
Total Cycles: 5,164
Engine Specs:
Left Engine: Type: GRT TFE 731-3-1C, TSN: 7,307.8 hrs, CSN: 5,314
Center Engine: Type: GRT TFE 731-3-1C, TSN: 7,337.8 hrs, CSN: 5,312
Right Engine: Type: GRT TFE 731-3-1C, TSN: 7,246.5 hrs, CSN: 5,372
All Engines Enrolled on MSP
APU: GRT GTCP 36-100A
Total Time: 3,818 hrs
Avionics/Radios:

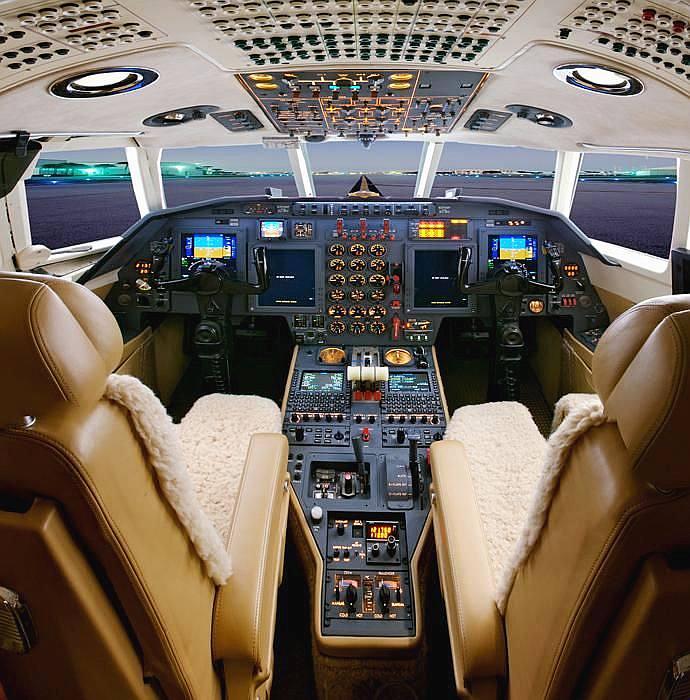

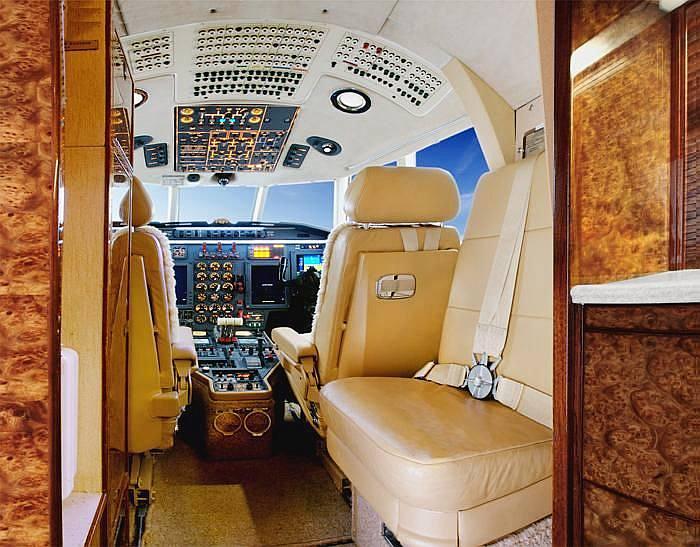

Collins Pro Line 21 EFIS System featuring:
Triple Collins VHF-4000 Comms
Dual Collins ADF-4000s
Dual Collins VIR-4000s Navs
Dual Collins DME-4000s
Dual Collins FDS-4000 Flight Display Systems
Dual Collins APS-4000 Autopilots
Dual Collins ADS-80K Air Data Computers
Dual Collins HF Comms w/ SELCAL
Dual Collins FMS-6000 Flight Mgmt Systems
Dual Collins TDR-94D Trpndrs w/ Enhncd Mode S
Collins ALT-4000 Altimeter
Collins TWR-850 Radar
Collins TCAS-II
EVS-1000 Enhanced Vision System
Allied Signal Mark VII EGPWS
Additional Equipment:
Part 135 Compliant
Extended Rudder Travel Mod
RVSM
FM Immunity
8.33 Comms
XM Weather
Third FMS
Dual FSU Electronic Charts
Fairchild A100 Cockpit Voice Recorder
Satcom Provisions
N-1 DEECS
MNPS
RNP5
RNP10
AC Inverter
Year Painted:
2007
Exterior:

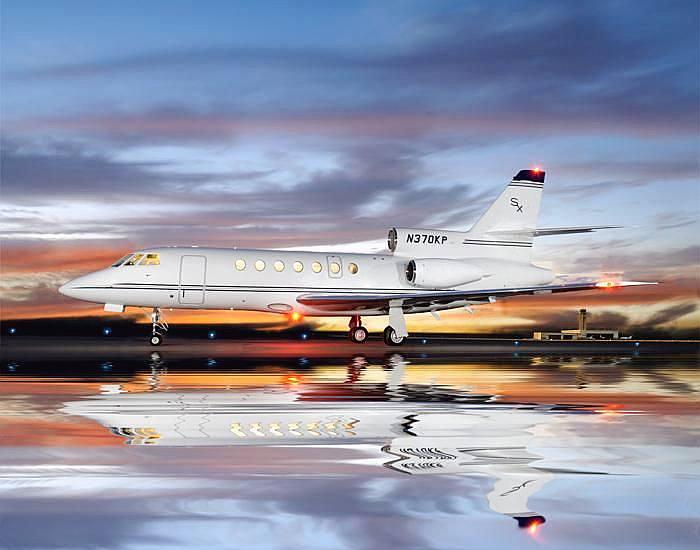

New 2007. Overall Matterhorn White w/ two Navy Blue accent stripes surrounding one Grey stripe running along the length of the fuselage, lower and upper tail. Upper tail has Navy Blue accent.
Year Interior:
2007
Interior:

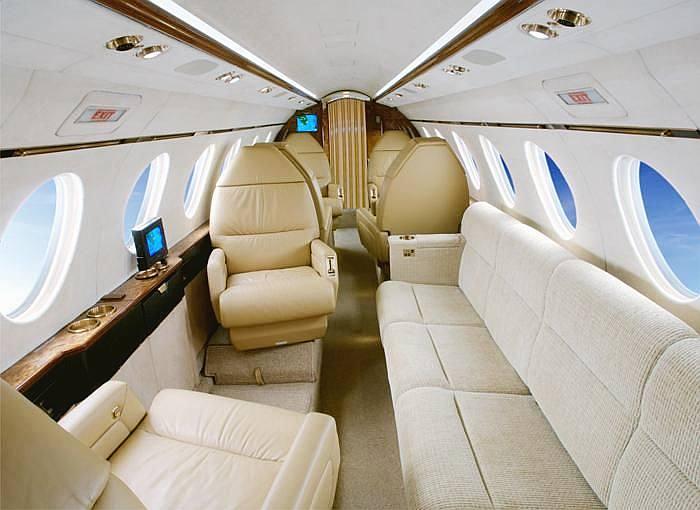

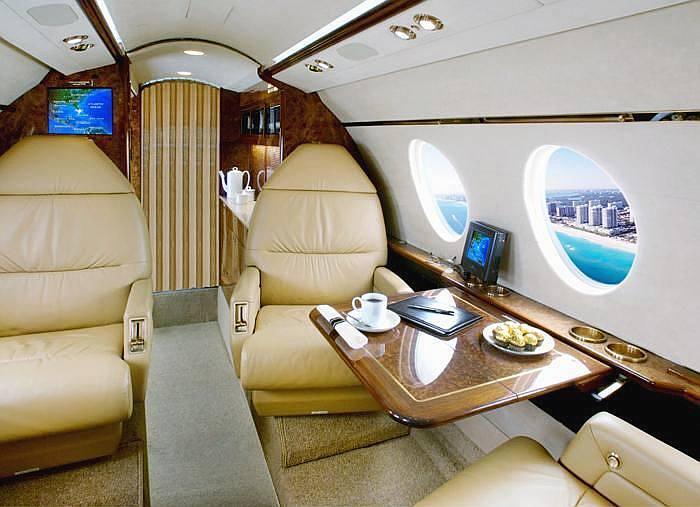

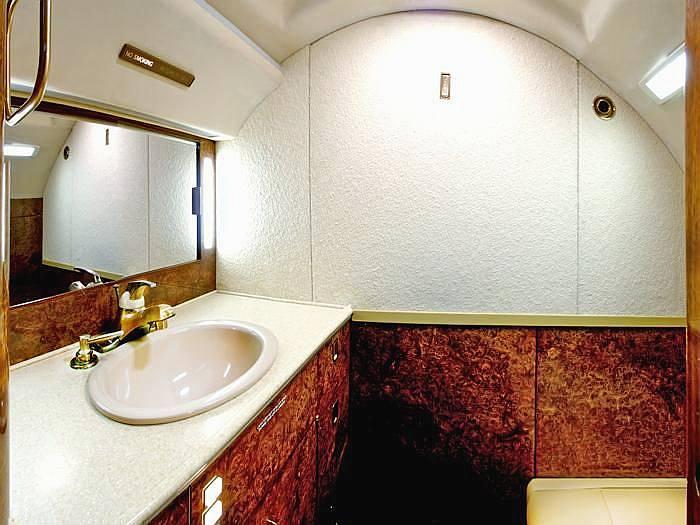

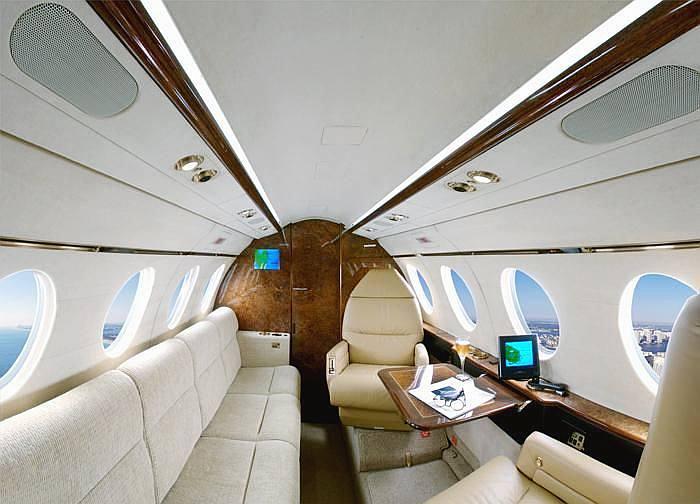

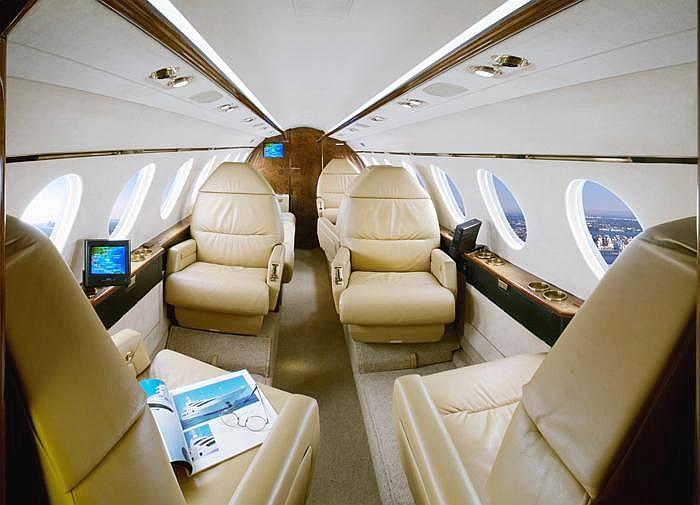

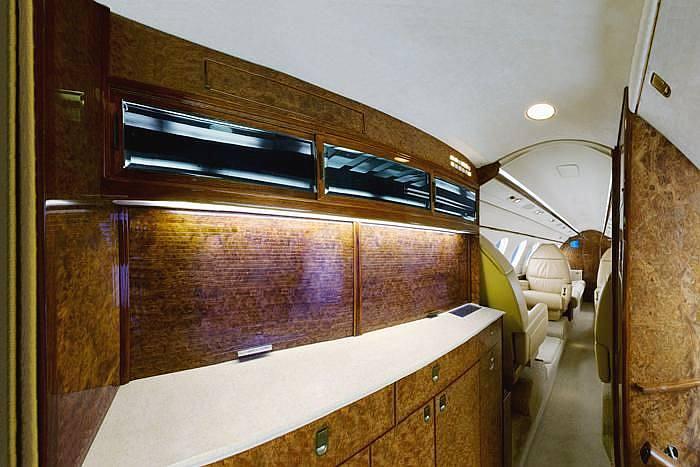

New 2007. Ten (10) passenger executive interior in Light Tan leathers. Forward 4 place club seating with large captain’s chairs, 2 aft left side opposite facing captain’s chairs, and right side 4-place divan done in Cream colored fabric. Large right side forward galley with microwave oven, coffee maker and storage. Corian countertops compliment the high gloss cabinetry. Aft lavatory. Genesys Airshow, Rosen DVD player, forward & aft mounted large LCD monitors and 3 mid-cabin LCD displays complete the entertainment system.
Inspection Status:
A/A+ Inspections c/w December, 2008
2A/2A+ Inspections c/w June, 2008
4A/4A+/B/2B/3B Inspections c/w June, 2007
C/2C & Landing Gear OH c/w March, 2005 |
|
|
| |
| |
|
| |
| |
|
|
| |
|
| |
|
|
