Airframe:
Metal structure and skin panelingAnti-corrosion protection treatmentElectrical flaps with integrated track and dissymetry detector
Bank control through ailerons and spoilers
Retractable gear with electro hydraulic control
Hydraulic disc brakes
Large cabin and baggage compartment

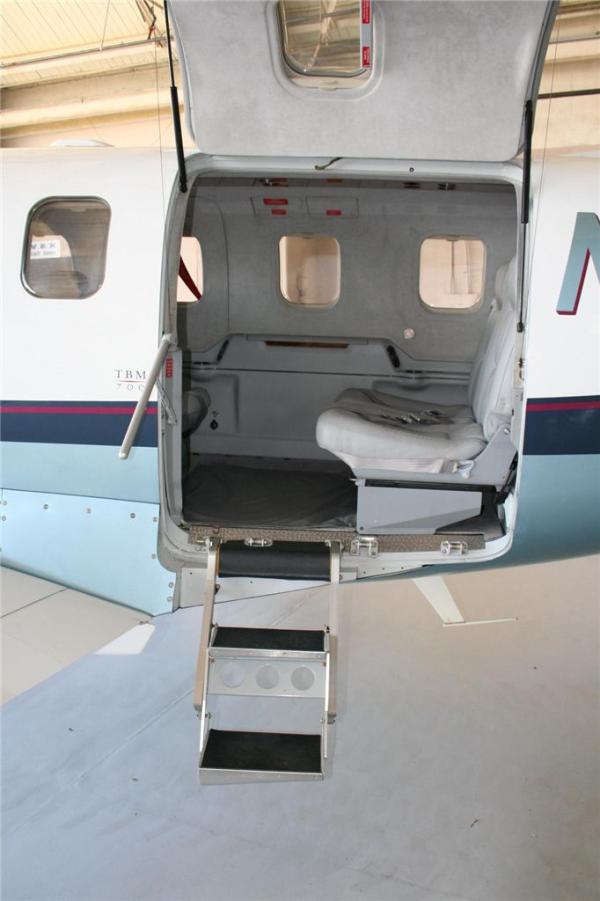

Large access door with retractable stairway
Front baggage compartment (not pressurized) with external doorEngine Trend
Emergency exit
Rear fuselage servicing door
Tie-down attachments
Jacking points
Painting and decoration
High-speed pneumatic de-icing equipment
Easy maintenance access doors
Engine Specs:
PRATT & WHITNEY PT6 A64
De-iced four bladed HARZELL propeller Spinner
Electrical starter/generator
Oil cooler
Inertial separation anti-icing air inlet
Dual exhaust
Avionics/Radios:

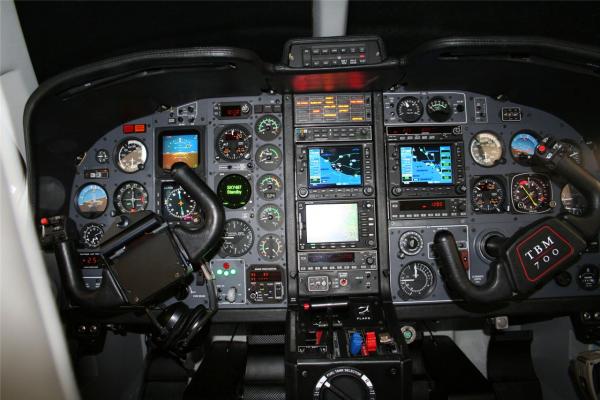

INSTRUMENT PANEL:
Integral instrument panel with spare locations for options
Airspeed Indicator
Sensitive altimeter
Vertical speed indicator
Electrical turn and bank indicator
Magnetic compass
Thommen needle chronometer
Tachometer generator
Propeller tachometer
Fuel management panel
Engine Trend Monitoring System (ETM 700 Shadin),
fuel flow and Air Data Computer
Oil pressure indicator
Torque indicator
Turbine temperature indicator (ITT)
OAT Indicator
Landing gear control and monitoring panel
Flaps position indicator
Trim position indicator (elevator, rudder and ailerons)
Voltmeter and ammeter
Electric generator control and monitoring
on overhead panel
Instrument panel lighting
Advisory panel with master caution, master warning
and aural warnings
Environment control system
Airframe de-icing control panel
Stall warning system
AVIONICS PACKAGE GARMIN/HONEYWELL
Garmin Audio control panel stereo with music input capability and markers
EHSI/EADI EFIS 40 with symbol generator, KVG 350, KCS 305 with comparator alarm and switching mode
Garmin 530 GPS/VHF/VOR-ILS (8.33 Mhz spacing)
Garmin 530 GPS/VHF/VOR-ILS with GI 106 indicator (8.33 Mhz spacing)
RDR 2000 radar. No display, displayed on GMX-200
WX 500 Stormscope with indicator and output to GMX-200
KNI 582 RMI Indicator connected to heading nº2
DME KN 63 with output to the EHSI
Honeywell KDR-810 Traffic Advisory System displayed on GMX-200/Garmin/HSI
Dual Amtek 2000 Altimeters, RVSM Capable.
ELT 97 (USA) tri-band with aircraft identification and connection to GPS
KFC 325 3 Axis digital Auto Pilot with pre-select Altitude and Yaw damper
Stand-by vacuum Artificial horizon
Shadin ETM Engine Trend Monitor.
Honeywell Enhanced Ground Proximity Warning System (EGPWS) displayed on KMD-540
Right hand
KRA 405 B Radar Altimeter
KDI 574 DME indicator
Dual Garmin GTX-327 Transponders
Electrical Artificial horizon
Vertical speed indicator
Airspeed indicator
HSI KCS 55 A and KI 525 A, connected to heading nº2
Electric trim control
Additional Equipment:
MISCELLANEOUS
Map reading tablet
Refreshment cabinet LH
Hour meter airborne
Electrically heated windshield on the Right Hand side
Pulse light anti-collision system
Supplementary Gaseous Oxygen system
Honeywell Air Conditioning
Becker Stereo with AM/FM/CD
Dual Video Screens Aft Seats
ELECTRICAL EQUIPMENT
Lead Acid battery 24V-40A/h
Starter generator 28V
Auxiliary generator
High safety electrical power center for regulation
and switching
Circuit breakers
Anti-collision strobe lights
Navigation lights
Taxiing and landing lights
Ice detector light
Ground power plug receptacle
Ground clearance energy saver

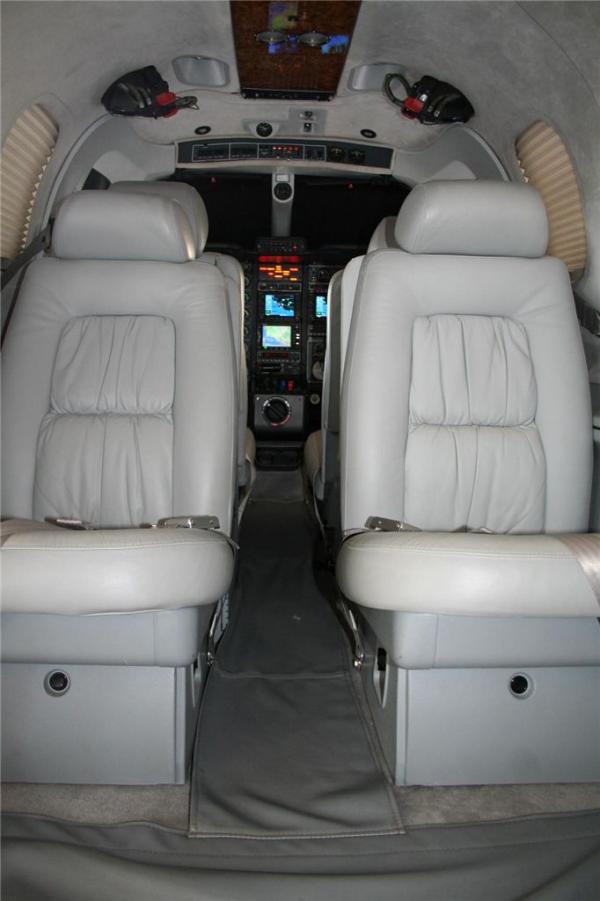

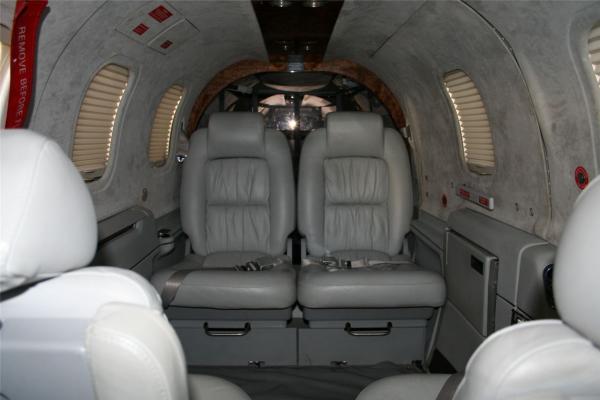

CABIN FITTINGS
Pressurized cabin (6.2 PSI)
Carpeting and upholstery
Sound-proofing and thermal insulation
Air conditioning
Individual vents and lightings
Sun visors and curtains
Fully adjustable pilots seats (height and depth)
All seats with adjustable backrests
Front and head rests with folding armrests and headrests
Reel up 3 points safety belts at all seats
Ashtrays
Retractable working table
Air way charts cabinet
Refreshment cabinet
Supplementary Oxygen system
Baggage compartment with straps and net
Rear mirror in baggage compartment
Coat-rack
CONTROLS
Dual flight controls
Electrical pitch and rudder trim (LH only)
Adjustable rudder and nose wheel steering pedals
Central console including:
-power control
-propeller pitch control
-condition lever
-manual control override
-electric flaps control
-fuel selector control
-ailerons electric trim
Dual toe brakes
Parking brake
INTERIOR EQUIPMENT
Platinum Edition including:
-high comfort leather seats
-wooden made overhead panel
-wooden made baggage compartment frame
-wooden made retractable working table
-black chrome color metallic finishing
-smoked brown mirror in baggage compartment
-carpet runner
FUEL EQUIPMENT
One structural fuel tank per wing
Constantly operating mechanical fuel pump
Stand-by electrical fuel pump
Fuel tank selector with automatic sequencer unit
Capacitance gauging with low-level warning

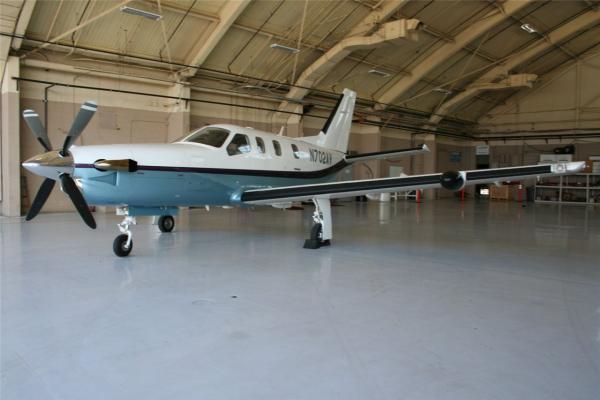

Exterior:
Allover White with Light and Dark Blue Accents.
Interior:
Medium Grey Leather Interior, with Black Metallic Trim and Dark Wood Trim.
|
