| Airframe: |
|
Total Time: 5,313 Hours
|
| Landings: |
|
3,330
|
| Engine(s): |
|
TFE 731-40-1C
|
| |
|
MPI Interval for Engines is 2,500 Hours
|
| |
|
CZI Interval is 5,000 Hours
|
| |
|
Engine Program: Engines are Enrolled in MSP Gold
|
| |
|
| |
|
#1 |
|
#2 |
|
#3 |
| Serial Number: |
|
P115150 |
|
P115154 |
|
P115153 |
| SNEW: |
|
5,041 |
|
5,194 |
|
5,194 |
| Cycles: |
|
3,180 |
|
3,286 |
|
3,286 |
| Last MPI (Hrs/Cycles): |
|
4,627/2,965 |
|
4,780/3,071 |
|
4,780/3,071 |
| Next MPI due: |
|
7,127 |
|
7,280 |
|
7,280 |
| CZI Accomplished: |
|
4,627/2,965 |
|
4,780/3,071 |
|
4,780/3,071 |
| CZI due: |
|
9,627 |
|
9,780 |
|
9,780 |
|
| APU: |
|
Honeywell GTCP36-100A
|
| |
|
SNEW: 3,041, Serial Number: P-375
|
| |
|
Hot Section Accomplished: 2,740 Hrs (2,100 Hr Interval)
|
- No Known Damage History
- Two Fortune 500 Owners since New
- Date of Manufacture: 9/18/1997
- Date of Service: 12/22/1997
- Interior Fireblocked
- Owner will Retain Current Aircraft Registration Number
- Aircraft available: TBD
- Max Ramp Weight: 40,780 Lbs
- Max Take-off Weight: 40,780 (SB 161)
- Max Landing Weight: 35,715 Lbs
- Max Zero Fuel: 25,570 Lbs
- Empty Weight*: 21,430 Lbs
- Bow (Over Water): 22,446 Lbs
- Min Flight Weight: 18,959 Lbs
|

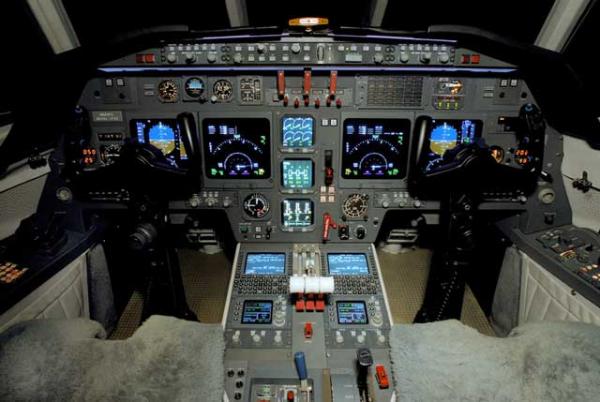

Collins Pro Line 4 Avionics System w/ 4-Tube EFIS
- Communications: (3) Collins VHF 422C with 8.33 Spacing
- Navigation: (2) Collins VIR 432
- Autopilot / Flight Director: Collins APS-4000 Autopilot and FCC4009
- EFIS: Collins ProLine 4
- Radar: Collins TWR-858 with Dual Control Panels
- Transponder: (2) Collins TDR 94D with Mode S and Enhanced Flight ID
- Automatic Direction Finder: Collins ADF 462
- Distance Measuring Equipment: (2) Collins DME 442
- Radio Altimeter: (2) Collins ALT 55B with Dual Antenna
- Flight Management System: (2) Collins FMC 6100 v 6.1 with Dual Collins GPS 4000A
- Long Range Navigation: (2) Honeywell LaserRef
- Altitude/Heading Reference System: (2) Honeywell LAZEREF IV and (1) Collins AHS-85E AHRS
- Air Data Computer: (2) Collins ProLine 4 Version 6.1
- Traffic Collision Avoidance System: Collins TCAS 94 (TCAS II with Change 7)
- Enhanced Ground Proximity Warning System: Honeywell (AlliedSignal) EGPWS Mark V ver. 6.X
- High Frequency Radio: (2) Collins HF-9000
- Selcal: Caltech (2 Channel)
- Lightning Detection: BF Goodrich WX-1000E Stormscope
- ELT: ELT 97 (3 Freq)
- Flight Data Recorder: Provisions only
- Cockpit Voice Recorder: Honeywell (AlliedSignal) SSCVR (30 Minutes)
- Airborne Flight Information System: DMU AlliedSignal SATAFIS with Sky Printer
- Flight Deck Audio: Dual Baker B1045 with Observer Interphone
- Standby Flight Display: Smiths - WL1001KCA1
|
- 8.33 kHz Channel Spacing for Comms: Yes
- RVSM: Yes
- FM Immunity: Yes
- Fireblocked: Yes
|
- Aircell Access EZ Iridium SATCOM Phone with 2 Channels. One Handset in Cockpit and Two in Cabin
- Cabin VIP Temperature Controller
- Airshow 400
- Video Cassette Player
- 13" Retractable Forward Bulkhead Monitor
- EROS Crew Oxygen Masks
- FMS Data Loader: Collins PDC-3000
- Pulse Light System
- Devore Logo Lights
- Microwave Oven
- Coffee Maker
|
- Original by DFJ, Little Rock.

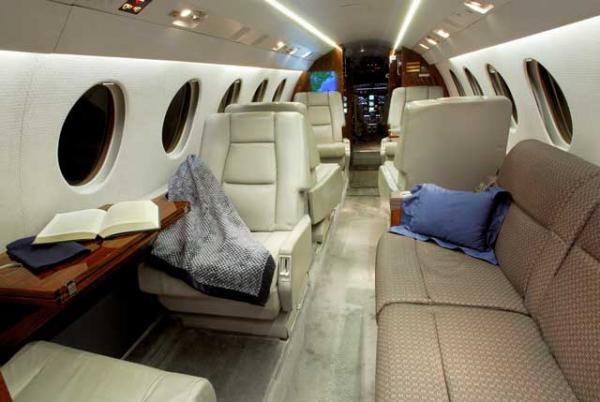

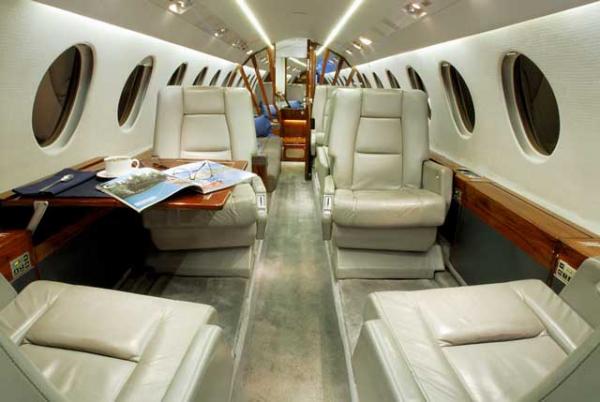

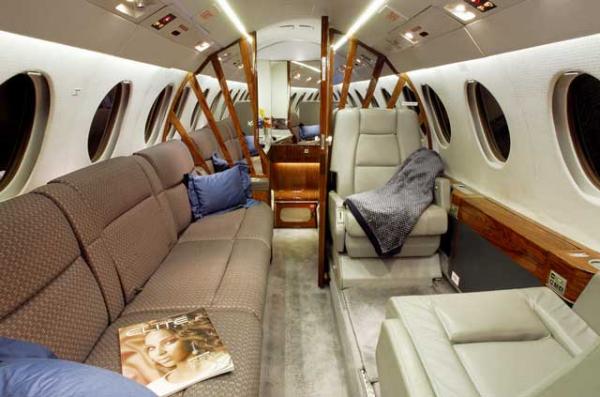

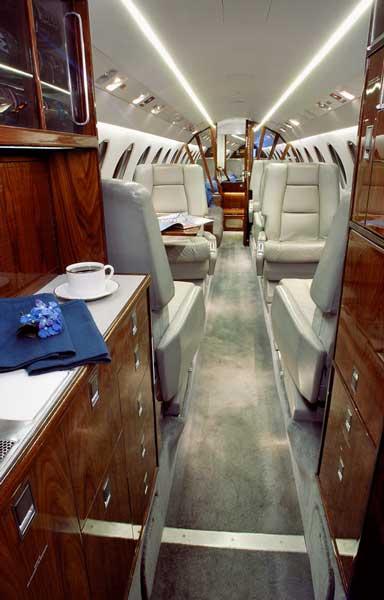

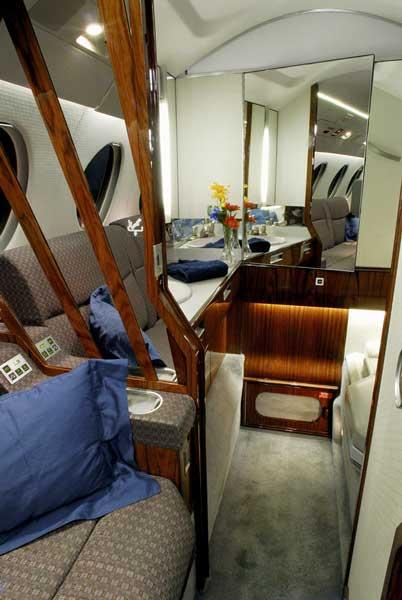

9 Passenger Interior that includes a forward jump seat, Forward Galley and Aft Lavatory Configuration w/ 4-place Forward Club, One aft 3-place Divan and Two aft Seats in Club Configuration. Headliner is Almond color. The cabin seats are Light Gray Ash colored leather. The three place divan is covered in fabric with a rectangular pattern. The carpet is Light Grey. All hardwood is Light Walnut in color. Cabinetry and woodwork is finished in Light Mahogany color.
|

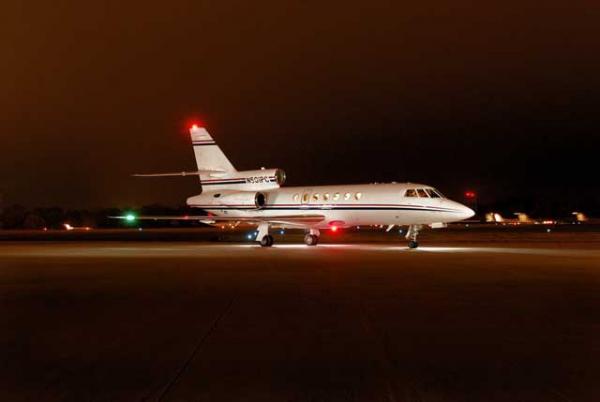

- Original Paint, December 1997at Dassault Falcon Little Rock.
Matterhorn White with Blue and Red stripes.
|
Maintenance & Inspections:
|
- Maintenance Tracking by CAMP
|
-
| Inspections |
|
|
Last Completed |
|
|
Next Due |
| A |
|
|
5,140 Hrs/Sep 2007 |
|
|
5,440/Mar 2008 |
| B |
|
|
5,130 Hrs/Feb 2006 |
|
|
5,630 Hrs |
| 2A |
|
|
4,900 Hrs/Apr 2007 |
|
|
5,500 Hrs/Apr 2008 |
| C (6 Yr) Inspection |
|
|
Oct 2003 |
|
|
Oct 2009 |
| Gear 6 Year Dimensional Check |
|
|
Oct 2003 |
|
|
Oct 2009 |
|
|
|
