Airframe:
2768 Total Hours, 1662 Landings (As of April 14, 2008)
Engine Specs:
Pratt & Whitney Canada PW306A ESP Enrolled & Phase 4 Status
Left: PCE CC-0106 2657 Hours, 857 SMOH, 1557 Cycles (9/06)
Right: PCE CC-0107 2657 Hours, 857 SMOH, 1557 Cycles (9/06)
APU: Honeywell GTCP36-150 on MSP, 950 Hours, 1815 Cycles
Modifications/Conversions:
Phase 4 Engine Status
RVSM, MNPS and RNP5/10 Approved
Avionics/Radios:
Dual Collins VHF-422D Coms 8.33 Spacing
Dual Collins VIR-432 Navs FM Immunity
Dual Collins TDR-94D Mode S Transponder(ESC)
Dual Collins DME-442 DME’s
Collins ADF-462 ADF
Dual Collins FCC-4005 Autopilot System
Dual Collins AHC-3000 AHRS
Dual Collins ADC-850C Air Data System
Dual Collins RTU-4220 Radio Tuning
Dual Collins GPS 4000A
Collins EFD-4077 Five Tube EFIS/MFD
Dual FMS 6100 Flight Management System
AFIS with FMS 6100 Interface
Collins WXR-850 Weather Radar w/ Turb Det
Collins ALT 4000 Radar Altimeter
AlliedSignal Mark V EGPWS w/ Windshear
Collins TTR 4000 TCAS II w/ Chg 7 Software
Dual Bendix/King KHF 950 w/ SELCAL
3M WX 1000E Stormscope
Additional Equipment:
Magnastar C-2000 Digital Telephone System
Aero I 3 Channel SatCom
3 Handsets for Telephone System
Runway Accident Avoidance System
(4) 115 AC Cabin Outlets/Data Ports
Passenger Cabin Master Control Unit
Honeywell AR 256 Flight Data Recorder
Universal CVR 120 Cockpit Voice Recorder
Airshow 400
Dual DVD/CD Player
15” Forward & Aft Bulkhead Monitors
10 Gallon Water System
Year Painted:
2004

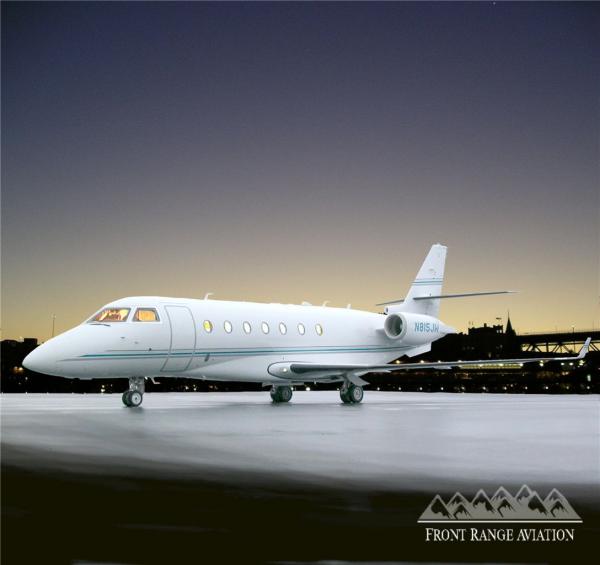

Exterior:
Overall Matterhorn White with Nordic Gray, Medium Gray, Stars & Stripes Blue and Dawn Gray Stripes.
Year Interior:
2002
Interior:

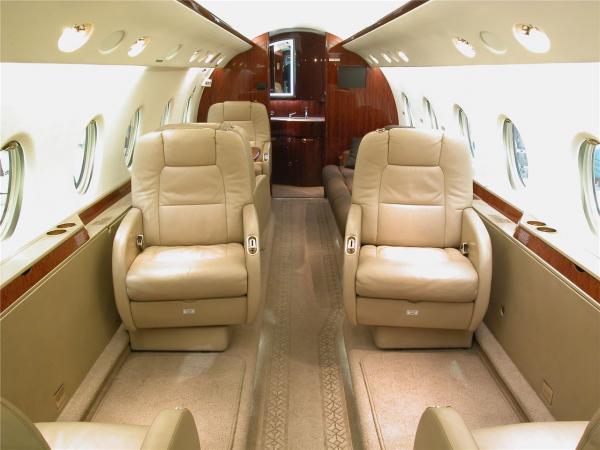

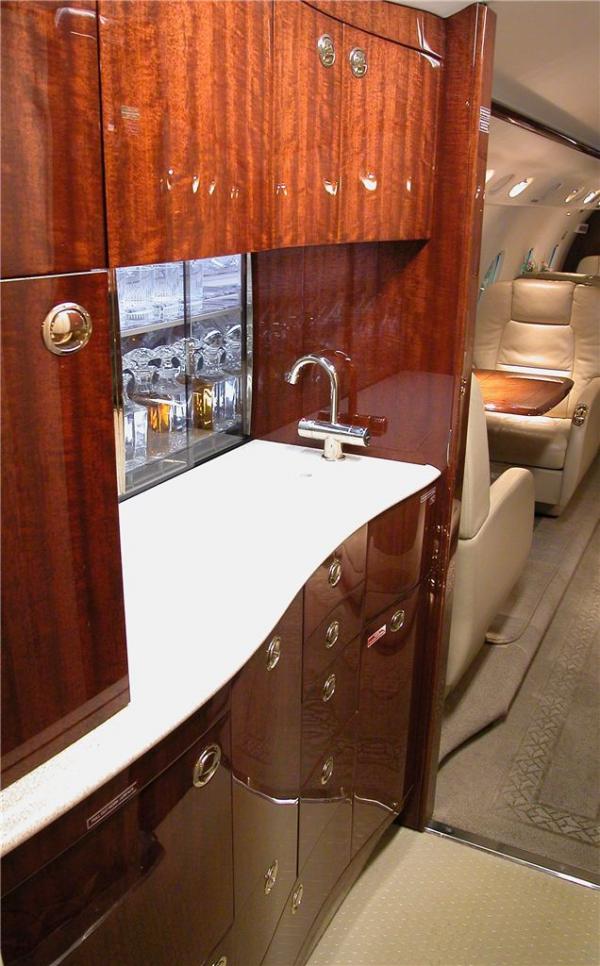

The Universal 9: Nine Place Leather Seating Includes Four Forward Seats in Club Configuration, Two Aft Right Hand Seats in Half Club Configuration and Aft Left Hand 3 Place Berthable Divan. Large Pull-Out Tables Between each Set of Single Seats, Side Ledge Storage Boxes, Underseat Storage, Beverage Holders, Individual Reading Light and Head Set Controls, Forward Right Hand Galley with Warming Oven/Coffee Maker/Sink/Ice Drawer/Liquor Storage, Aft Lavatory with Vanity and Sink.
Inspection Status:
Gulfstream MSG3 Maintenance Program, Gulfstream CMP Maintenance Reporting.
|
