| Airframe: |
|
14073 Hours Total Time
|
| |
|
8,687 Landings
|
| Engines: |
|
Rolls Royce Spey MK511-8 Engines
|
| |
|
| |
Left |
Right |
| Hours since Overhaul: |
6,523 |
5,452 |
| Hours TBO: |
8,000 |
8,000 |
| Due: |
11/03/2010 |
7/31/2010 |
|
| APU: |
|
Garrett 36-100
|
| |
|
5,383 Hours Total Time
|
- Landing Gear has 1,222 Landings Remaining until Overhaul
- Bulkhead 580 due 2/22/2011
- Fresh 24 Month Inspection
- 72 Month due 1/28/2010
|
| |

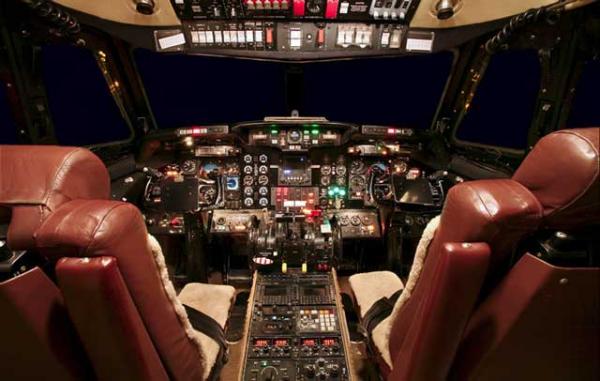

- Flight Director: Dual Collins FD-109
- Autopilot: Sperry SPZ-800
- Radar: Sperry Primus 400
- Communications: Dual Collins VHF-21D/Collins VHF-20B
- Navigation: Dual Collins VIR-31A
- Distance Measuring Equipment: Dual Collins DME-40
- Automatic Direction Finder: Dual Collins ADF-60
- Transponder: Dual AlliedSignal MST-67A Mode S
- INS: Dual Delco Carousel IV INS
- Flight Management System: Dual UNS-1C with GPS
- Rad Alt: Dual Collins ALT-55B
- High Frequency: Collins 671-U4 w/Selcal
- Traffic Collision Avoidance System: AlliedSignal TCAS II with Change 7
- EGPWS: Sundstrand Mark VII
- AFIS: Universal SAT
|
| |
- Fireblocked 15 passenger, two single seats forward RH, four-place forwarddivan LH, mid-cabin 4-place conference group, mid-cabin single seat, 2-placeKibitzer seat, 2 single seats aft with work tables. Seats completed in Creamcolored leather. Divan and Kibitzer completed in Cinnamon and Gold fabric.Taupe carpet with custom inlays. Gold-plated metal fixtures, Lou Martinaccordion style window shades. Full aft galley with warmer, microwave, hot cup,sink, wet bar and coffee maker. Aft Lav with flushing potty and lighted vanitywith sink. Refurbished 6/2000.
|
| |
- Matterhorn White with Metallic Brown, Cashmere and Coral Trim - 11/1997.
|
| |
- 8.33 Spacing
- BKM Nose Wheel Steering
- 300 Amp Trans Rectifier
- Dual Inverters
- Long Range Oxygen
- 65,500 G.T.O.W.
- Teledyne Angle of Attack
- FM Immunity
- BKM Master Warning
- Pulse Light Visual Contact System
- Airshow 400
- 45,000 Ft. Altitude
- BKM Speed Brake Handle
- Radio Master
- RVSM Certified
- Auto Cabin Briefing System
- Ipeco Crew Seats
- Safe Flight Scat System
- Drag Brace
- Dual Davtron Clocks
- High ASC Status
- GIII Radome
- 6,000 Ft. Cabin
|
| |
|
|
 |
