| Equipment Specifications |
 |
|
| Year |
1987 |
| Manufacturer |
GULFSTREAM |
| Model |
IV |
| Price |
Call |
| Location |
Bedford, Texas |
| Condition |
USED |
| Serial Number |
1041 |
| Registration Number |
N366F |
| Total Time |
7495 Hours |
| General Information |
| Delivered in 1988, Honeywell SPZ-8000 IFCS Auto Pilot, RVSM Capable |
| Detailed Description |
Airframe:
4267 Landings
Engine Specs:
Rolls Royce TAY MK611-8
#1. 7,298.0 Hours Since New Cycles: 4177
#2. 7,250.1 Hours Since New Cycles: 4153
APU:
Honeywell GTCP 36-150

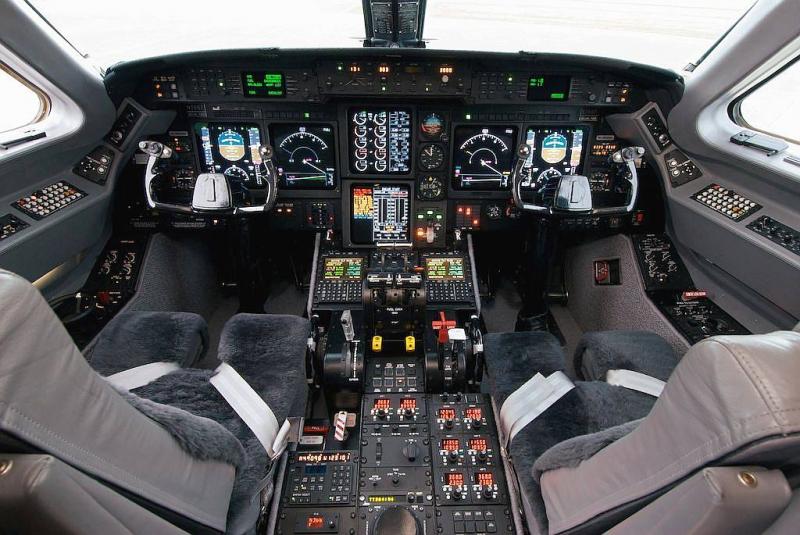

Avionics/Radios:
Honeywell SPZ-8000 IFCS Auto Pilot
Dual HF-190 Hi Freq w/ SELCAL
Triple Collins VHF – 422B Comms w/8.33 Spacing
DL-950 Sperry Data Loader
AFIS W/VHF Satcom Link
Dual Sperry AA-300 Radio Altimeter
Dual Collins VIR-432 Navs w/FM Immunity
TCAS II w/Change 7
Dual Collins ADF-462
Enhanced Ground Proximity Warning System
Dual Collins DME-442
Sperry Primus 870 Color Radar
Dual Collins Enhanced Mode “S” Transponders
Iridium Axxess Dual Channel Satcom
Triple Honeywell Laseref IRS
Upgraded CD-820 Display Units
Dual Honeywell NZ-2000 FMS’s w/Ver 6.0 Software
Third LASERTRAK
Dual Sperry Digital Air Data Computers
Artex 406 Mhz ELT
Sperry LSZ-850 Lightning Detection System
Fairchild A-100 Cockpit Voice Recorder
Sperry Auto Throttle System
Dual Aeronetics RMI System
Additional Equipment:
RVSM Capable
LED Lighting
Upgraded Switch Panel
Video Conferencing@ 2 Ports
Passenger Speaker System
iPod Installation
ASC-190 Completed 8/2007
Aircell Iridium Axxess Wireless Internet
Airshow 4000
One 20” LCD Monitors FWD Bulkhead
ONE 15” LCD Monitor Aft Bulkhead
One 17” LCD Monitor above Credenza
Continuous Window Panels
Electric Window Shades
Fax/Printer in Credenza
Dual Coffee Maker
Convection/Microwave Oven Combination
Inmarsat with Honeywell 7120
20 Gallon Water System
CD Changer
Dual DVD Player

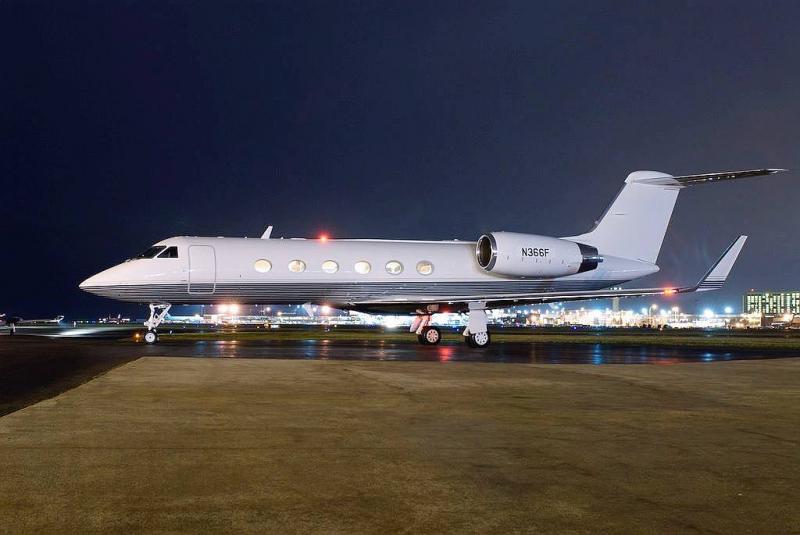

Exterior:
Overall Matterhorn White, with Granite Gray/Kingston Gray and Platinum stripes.
New Paint by Gulfstream October 2007
Interior:

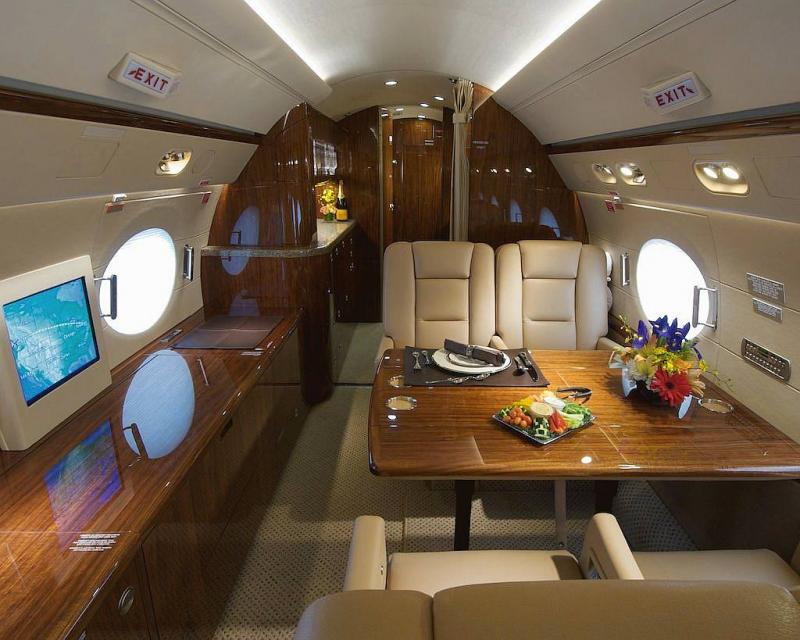

The previous interior was completely removed and replaced with components and styling found in the latest Gulfstream G450’s.
The interior configuration has been completely redone per the floorplan attached below. A forward lavatory has been installed. All new chairs and divans were installed. Other details that can’t be seen include a new water system, new soundproofing and insulation, re-conditioned heat ducts and air gaspers.
The lighting system has been upgraded to an LED system. The window panels have a continuous styling and all window shades are electric and can be controlled individually or together from a master switch panel.
The interior features the Wide-Inside look of the G450 with an additional inch of headroom from the original GIV. It has removable bulkheads that create a rest area for pilots on transcontinental flights.

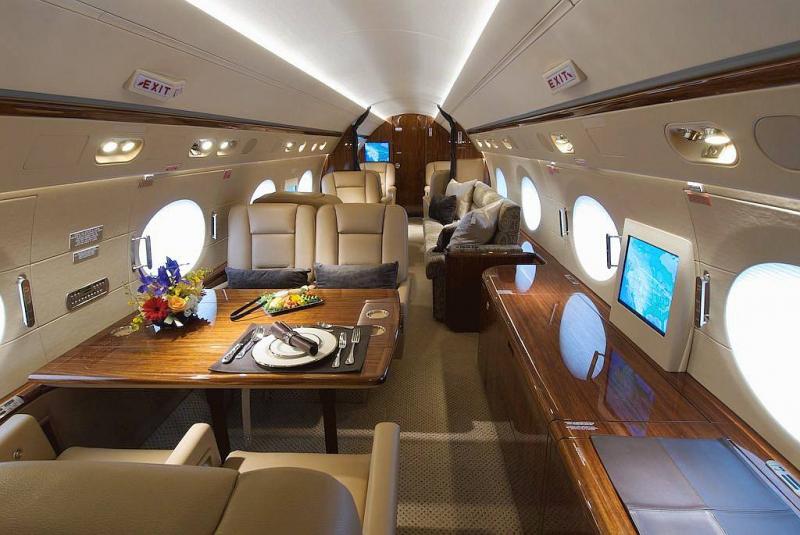

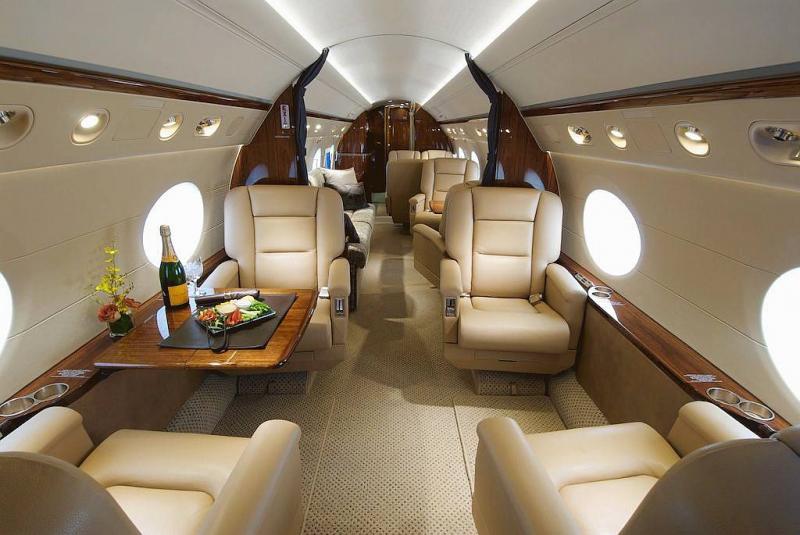

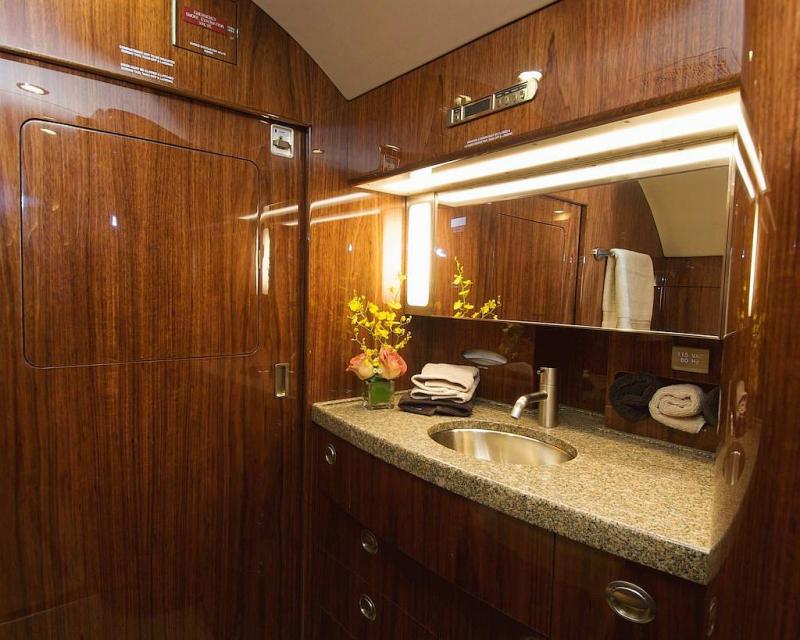

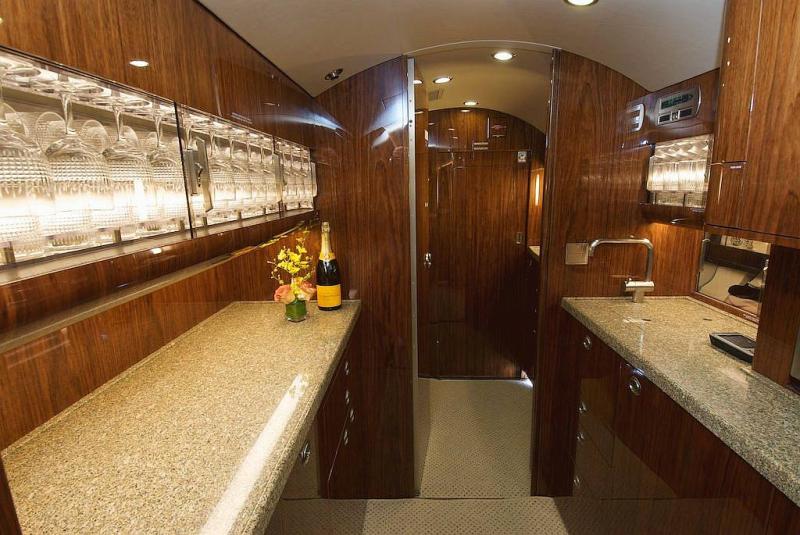

The forward area of the aircraft includes a Forward Lavatory and a Crew Refreshment Area. The Cabin consists of a Sixteen (16) passenger configuration. The first living area has Four (4) Single Seats in a Club Configuration. The second living area has Two (2) single seats on the left side opposing a Four (4) place berthable divan. The aft living area can be closed off to the forward cabin with a removable bulkhead. The aft living area has a Conference Group table with Four (4) chairs and a mechanical table that lowers to make a larger berthable bed. Opposing the Conference Group is a Credenza that has storage space and holds entertainment equipment and the Fax/Printer Machine. There is a Certified Two (2) Place Kibitzer located on top of the Credenza to provide additional seating across from the Conference Table. An extendable leaf can be added to the table to accommodate six people to sit together for dining service. The Kibitzer is certified for takeoff and landing.
The Interior has been Fireblocked for Part 135 Certification and all the placards have been installed to meet these requirements. Two new 13 passenger Life Rafts are located below the divan with 20 passenger overload capacity each.
The Entertainment System has been completed overhauled. There are Three (3) LCD monitors located in the cabin. There is a 20” LCD monitor located at the Forward Bulkhead, a 15” LCD monitor at the aft bulkhead and a 17” monitor above the Credenza. A new Dennis Tracey Speaker System has been installed and can be isolated to the forward or aft sections of the cabin. The switch panels are all new and state of the art. The Aircell Iridium Axxess Satcom System allows for WiFi connection to your laptop for Internet Access with Two (2) handsets and One (1) in the cockpit. There is a Video Conferencing Option. Additionally, you can connect any iPod into the docking station and play music through the cabin speakers or individual headsets.
The interior of the aircraft is elegantly styled with light beige and brown materials. The new wood veneer is a medium dark wood and the plating is brushed nickel.
Spare equipment included: Three (3) Single and Double Jetrest Custom Inflatable Mattresses with storage bags, blankets, flatware, China, glassware, lap trays, Full Ship set of Spare Carpeting that is cut to fit and ready to lay, Two (2) Spare entryway carpets, Two (2) Spare galley carpets, Spare Fax/Printer Machine.
Inspection Status:
Inspections:
Fresh Engine Overhaul by Rolls Royce, August 2007 72 Month Inspection c/w Gulfstream 8/2005
Gulfstream V Windshield Installed (6/2002 & 2/2004) Maintained on Gulfstream MSG-3
Enrolled on Gulfstream CMP 5000 Landings Inspection Complied with |
|
|
 |
