NOTES:
•Owner will retain current registration of N195WS
•Overall aircraft condition is excellent and records are intact and complete


BRIEF HISTORY:
Initial Certificate of Airworthiness was issued in April 1988 and delivered complete in September 1988. Aircraft was completed by Gulfstream, Savannah, GA. This aircraft has always been US Registered and owned/operated by major US corporations. Aircraft has been maintained to Part 135 standards.


Airframe:
TOTAL TIME: As of May 27, 2008
TTAF: 8,463
LANDINGS:5,018

Engine Specs:
ENGINES: (Rolls Royce Tay MK 611-8)LEFTRIGHT
SNEW:8110.18155.8
CYCLES SINCE NEW:47404782
Time Since Overhaul:480480
Serial Number:1620716187
Note: Calendar due date for Midlife is Oct 2015 Calendar due date for Overhaul is Oct 2025

APU: Garrett GTPC36-100G
TSN:6243
TSHSI: 32
Serial Number:P-430 36100G
Note: APU enrolled on MSP

Modifications/Conversions:
CAPABILITIES:
RVSM Capable: Yes
Minimum Navigation Performance Specs: Yes
FM Immunity: Yes
8.33 kHz Channel Spacing for Comms: Yes
RNP 10/5/1 Compliant- Yes

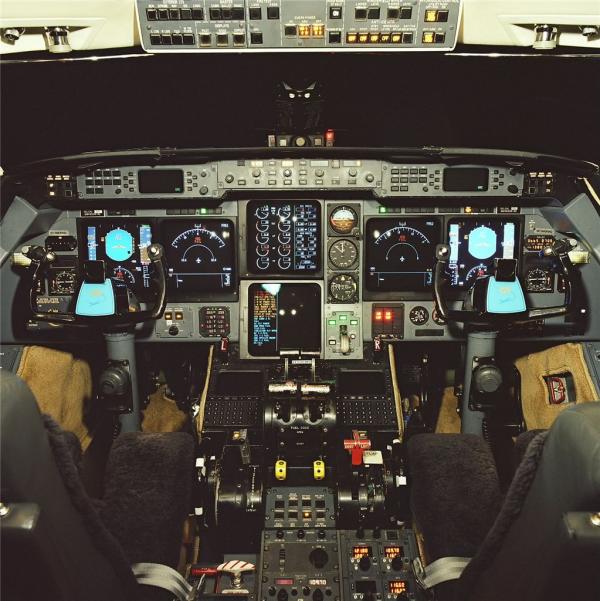

Avionics/Radios:
AVIONICS:
COMMUNICATIONS: (2) Collins VHF-422D Comms (8.33 Spacing)
NAVIGATION: (2) Collins VIR-432 NAV Receivers (w/ FM Immunity)
AUTOPILOT / FLIGHT DIRECTOR: Sperry SPZ-8000 Dual Autopilot / Flight Director System
EFIS: Sperry SPZ-8000 6-tube EFIS
AIR DATA COMPUTER: (2) Honeywell AZ 800
RADAR: Honeywell Primus-870
TRANSPONDER: Collins TDR-94D Mode S Transponders with Surveillance Flight ID
AUTOMATIC DIRECTION FINDER: (2) Collins ADF-462 ADF
RADIO ALTIMETER: (2) Honeywell RT-300 Radio Altimeter System
DISTANCE MEASURING EQUIPMENT: (2) Collins DME-442 DME
TRAFFIC ALERT & COLLISION AVOIDANCE SYSTEM: Honeywell RT910 TCAS II
GLOBAL POSITIONING SYSTEM: Honeywell
LONG RANGE NAVIGATION: (3) Honeywell IRUs HG1075AE03
FLIGHT MANAGEMENT SYSTEM: (2) Honeywell NZ-2000 FMS
TAWS: AlliedSignal Mark VII EGPWS
HF: (2) Collins HF- 9000 Radios
SELCAL: Yes
FLIGHT DATA RECORDER: Provisions Only
COCKPIT VOICE RECORDER: Fairchild A100 CVR
ADDITIONAL:Artex 406 MHz ELT

Additional Equipment:
OPTIONS & FEATURES:
Airshow 400
Magnastar C2000 Phone System
CD Player, VCR/DVD Player
Fax Machine
Gables Flight ID
Lasertrak
Forward Closets (left and right)
Dunlop Wheels and Brakes

Exterior:

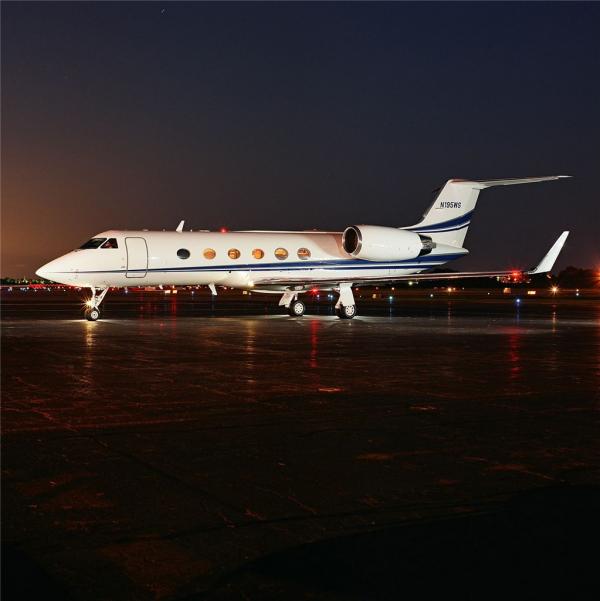

EXTERIOR: (Painted in June 2004 by Midcoast Aviation)
Overall Matterhorn White w/ Team Blue and Gun Grey stripes.

Interior:
INTERIOR: (Refurbished: 2006)

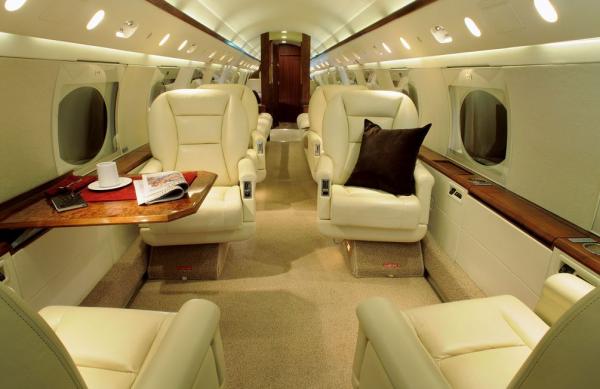

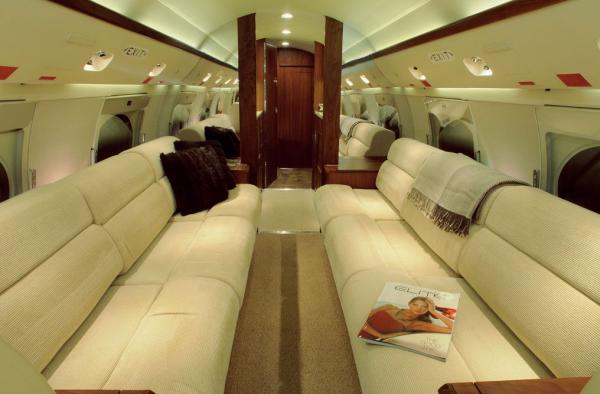

Part 135 fireblocked, 14 passenger configuration. The forward cabin features a 4-place club arrangement of tan leather seats. The mid-cabin features two forward facing leather seats and the aft cabin has two facing four place berthable divans. The aircraft features an aft lavatory and forward crew lav and refreshment center.

Inspection Status:
MAINTENANCE:.
•Aircraft enrolled in Gulfstream CMP Maintenance Tracking
•72 month Inspection completed October 2006
•NLG OH completed 2005 with 5000 landing inspection
•MLG ASC 266 complied with Feb 1994
•Calendar due date for Midlife is October 2015. Calendar due date for Overhaul is October 2025.
•APU HSI accomplished at 6211 hrs.
•APU enrolled on MSP

ASC 266 (Dunlop Wheel & Brake Installation):
This service change replaces existing wheels, brakes, hydraulic lines, unions, brake pedal bungees and brake electronic control unit (ECU). New tires are provided and modification to the Ground Spoilers will also be performed.
