Learjet 35 / 36 for sale - 1975 LearJet 35A, 35-036, N90AH for sale on AircraftDealer.com



TT: 11420

Engines: Garrett TFE 731-2-3B

TSN: 11064/10992
TBO: 4200/4200
SMPI: 840/505
SCORE: 840/1990
CYCLES: 10504/10511

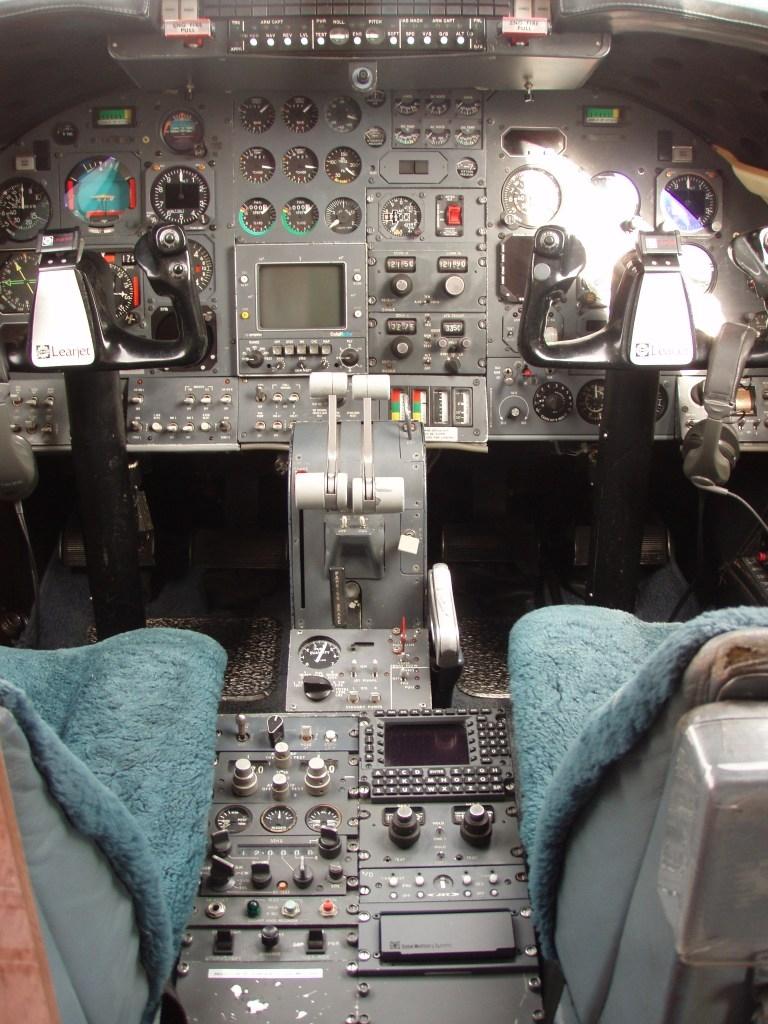

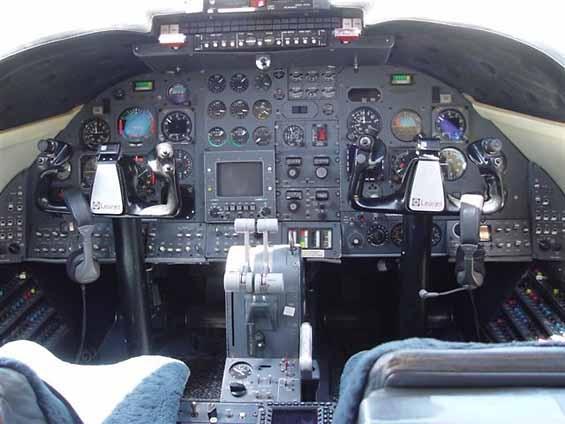

AVIONICS:

Dual Collins VHF-20’s

Dual Collins VIR-30’s

Collins ADF-60

Collins DME-42

Dual Collins TDR-90

Sperry Primus 400 Color Radar

Collins FD-108Y

Global GNS-XLS FMS w/Global AFIS

B.F. Goodrich WX-1000+

Sandel 2100 w/ Color Moving Map

Collins 718-U5 w/ SelCal

Collins ALT 50A

Wulfsburg VI Flitefone

Fairchild CVR

Collins PN-101 Co-pilots HSI

B.F. Goodrich Skywatch I Traffic Avoidance

J.E.T. FC-200 Fully Re-certified/Overhauled for RVSM

ADDITIONAL FEATURES:

Aeronca Thrust Reversers, Completely Overhauled 2002

24” Executive Door – 5th and 6th Cabin Window Modification

Century III/SoftFlight Wing Modification, All 35A Modifications, 18,3000 Gross TOW

Auxiliary Cabin Heater

Global A.F.I.S.

Lead Acid Batteries

N-1  Digital Electronic Engine Computer’s (DEEC’s) Both Engines ($100k mod)

3rd Standby Altimeter – RVSM Lear Factory Solution

All 35A Mods and Upgrades Installed, Shear Web Complied with, No Cracks.

MAINTENANCE:

All and only Learjet factory maintenance since new by Lear Factory, AMR Combs, Duncan or Garrett/Landmark Augusta since new.  Same Captain last 13 years.  All AMK’s and Service Kits installed.  RVSM Certified 2002, Learjet Factory Solution, Over $220,000 spent at Wichita Lear Factory.  Shear Web Inspection complied with 1200 Hour Interval No Cracks, AMK Access Panel Mod.  1st – 12 Year/6000 Landing Complied with May, 1987 @ 5,005 AFTT by Duncan Aviation, Lincoln, NE.   2nd – 12 Year/6000 Landing Inspection Completed – 1999 by Landmark, Augusta, GA. at 9,850 hours total time, over $250K spent.  300/600/1200/2400/12 mo/24 mo/48 mo/96 mo. Complied with December, 2002 at 10,400 hours AFTT at Garrett/Landmark Augusta.  Fresh 300 / 600 / 1200 Hour Inspections by Landmark, Augusta, GA just done January 17, 2007.  No Known Damage History, Excellent and Complete Records, Only 2 Major US Corporate Owners Since New.  Was Spirit of 1976 Around-the-World Aircraft Flown by Arnold Palmer to Celebrate the Bi-Centennial.

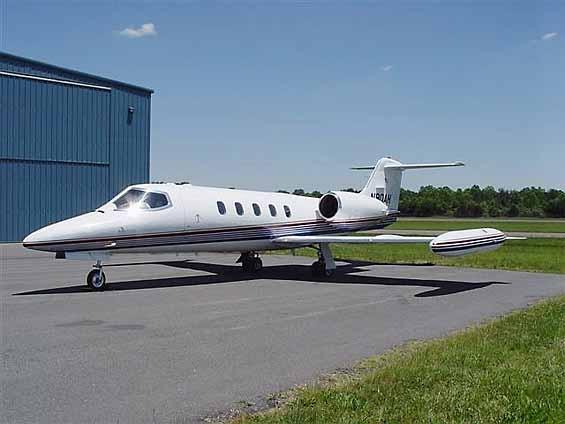

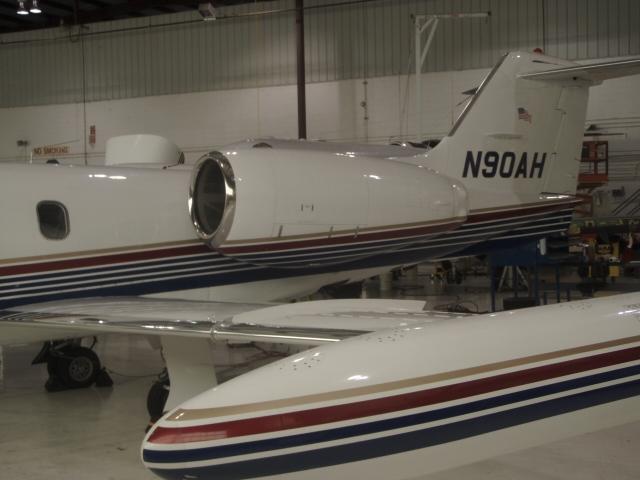

EXTERIOR:

Overall Matterhorn White with Las Vegas Gold, Royal Blue and Ruby Red stripes.  Always hangared and in like new condition.  Done 1999 by Eagle Aviation, Columbia, SC.   Rated an 8+.

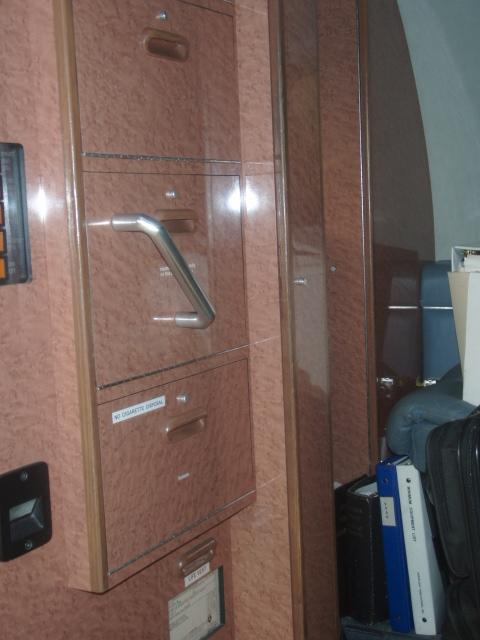

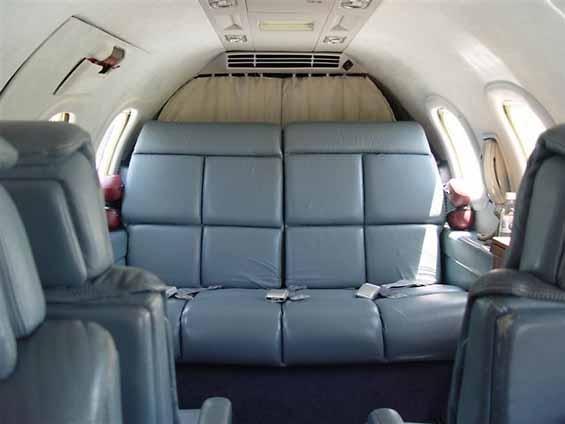

INTERIOR:

Eight passenger mid-cabinet interior configuration with the seats completed in Medium Blue leather, matching carpet, and Mahogany cabinetry.  Excellent Condition. Done New by Eagle Aviation in Columbia, SC in 1999.  Fireblocked.  Rated a 7+.  All windows like new.






Western Aviation
6701 Highway Blvd Ste 120
Katy, TX 77494
Phone: 800-913-JETS
Cell Phone: 281-391-2510
Fax: 281-391-2531
