Aircraft Summary
Airshow 410, Wired Cockpit and Wireless Cabin Handsets With Data port at Seat 2, Cabin Audio/Video with Single DVD Player & 10 CD Changer


    Airframe:
  • TOTAL TIME: 774 hours
  • LANDINGS: 736
  • --------------------------------------------------------------------------------
    Engine Specs:
  • Left Engine:
  • Honeywell TFE 731-20BR-1B
  • Serial Number: P-116871C
  • Hours: 774
  • Cycles: 736
  • HSI due: 3000
  • CZI due: 6000

  • Right Engine:
  • Honeywell TFE 731-20BR-1B
  • Serial Number: P-116870C
  • Hours: 774
  • Cycles: 736
  • HSI due: 3000
  • CZI due: 6000

  • APU: Allied Signal RE100LJ S/N P-379, 570 hours.
  • Engines and APU enrolled on the Honeywell MSP Program (Contract # 26319).
  • --------------------------------------------------------------------------------

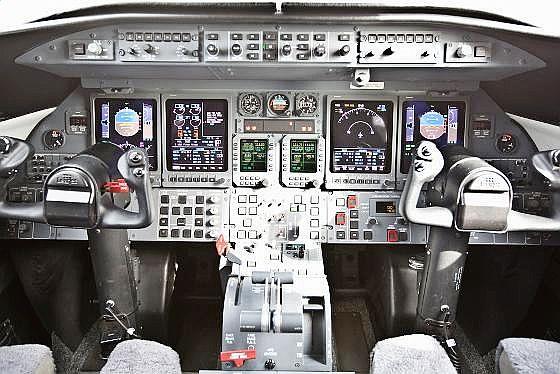

Avionics
  • Honeywell Primus 1000 System:
  • Four Tube DU-870 EFIS/MFD with 7" X 8" Displays
  • Engine Instrument/Crew Alerting System (EICAS)
  • Dual IC-600 Integrated Avionics Computers
  • Dual Universal UNS-1E FMS ( 802.7scn) w/ Internal GPS
  • Honeywell Primus 880 Color Radar w/Turbulence Detection
  • RT-300 Radio Altimeter
  • Honeywell Primus II Integrated Radio System Includes:
  • Dual RM-855 Radio Management Units (RMU)
  • Dual RCZ-833K Integrated (8.33 MHz) Comm Units Includes: VHF Com & Mode S Transponder (Enhanced Surveillance)
  • Dual RNZ-851 Integrated Navigation Units Includes: VHF Nav
  • (FM Immunity), Single ADF and Dual DME
  • Honeywell TCAS 2000 w Change 7
  • Honeywell Mark V Enhanced GPWS with -218 Software
  • Honeywell Solid State CVR 30
  • --------------------------------------------------------------------------------
Additional Equipment
  • RNP 1 / PRNAV / RNP5 / MNPS / RVSM Capable
  • Artex 406-2 MHz ELT
  • Dual Electronic Flight Bags w/ XM Graphical Weather
  • ICS-100 Iridium Single Channel Telephone System
  • Wired Cockpit and Wireless Cabin Handsets With Data port at Seat 2
  • Airshow 410
  • Cabin Audio/Video with Single DVD Player & 10 CD Changer
  • 2 Heated Liquid Dispensers
  • Forward and Aft 10.4" Bulkhead Monitors
  • Galley Rest Seat (in-flight use only)
  • Exterior lighting Package
  • Pulsating Recognition Light
  • Cockpit Speaker Mute
  • 110VAC Outlets in Cabin at Seats 1,3,4,8 & Lav
  • Concorde 38 Amp Hr Main Batteries
  • Honeywell CD-850 Clearance Delivery Unit
  • 1200 VAC Inverter
  • --------------------------------------------------------------------------------
Interior
  • Interior furnishings installed November 2007 by Learjet Inc. Wichita Kansas.

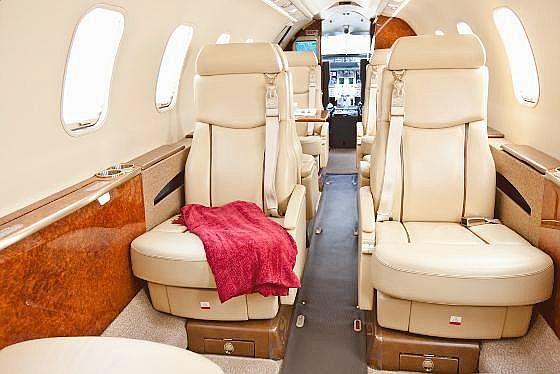

  • Fireblocked; Nine (9) passenger including belted lavatory seat, double club seats with executive foldout tables.

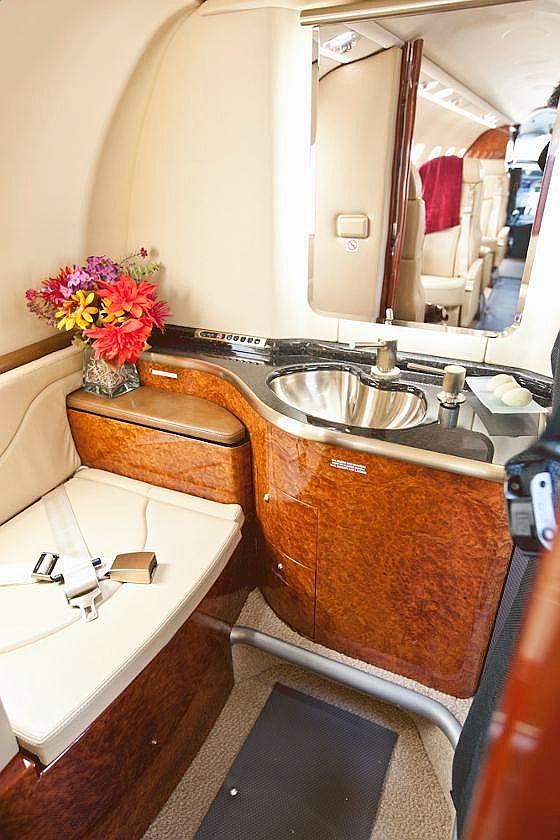

  • Fwd galley and standard lavatory located aft of the main cabin.
  • External baggage compartment.

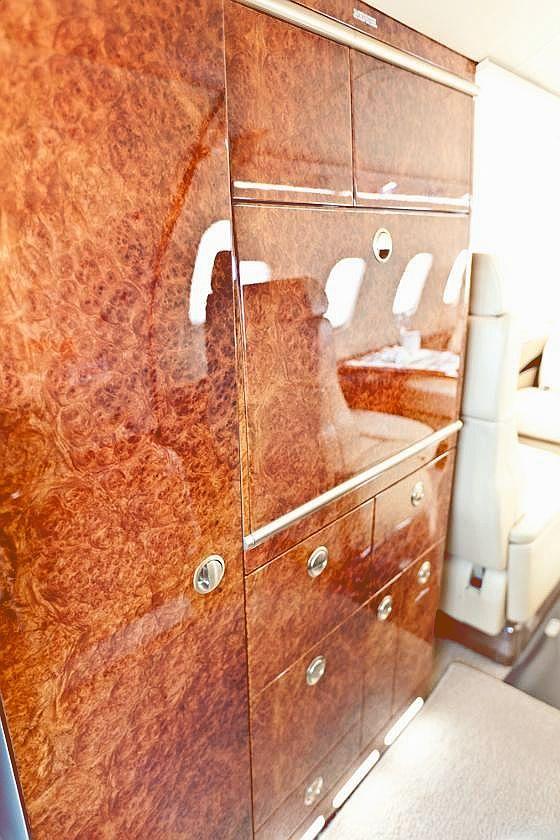

  • Cabinetry wood veneer is High Gloss Finish.
  • --------------------------------------------------------------------------------

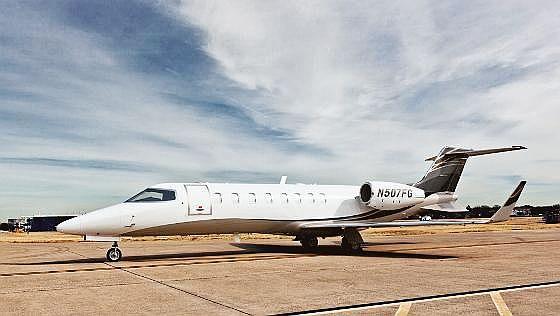

Exterior
  • Painted November 2007 by Learjet Inc. Wichita, Kansas using DeSoto paint.
  • Base fuselage is Matterhorn White.
  • Wings, belly and lower tail are Star Silver.
  • Main stripe is black Metallic.
  • Upper tail and elevators are dark Charcoal.
  • Accent stripes are Star Silver and Vegas Gold.
  • --------------------------------------------------------------------------------
Remarks
  • Phase A due at 1074 hours or March 2012
  • Phase B due at 1374 hours or March 2013
  • Phase C due at 1200 hours or October 2011
  • Maintenance Tracking Program: CAMP
  • Enrolled on Smart Parts Program
  • Weights
  • Gross Weight (Ramp): 21,750 lbs
  • Max Take Off Weight: 21,500 lbs
  • Max Landing Weight: 19,200 lbs
  • Max Zero Fuel Weight: 16,000 lbs
  • BOW: 14,433 lbs
  • Empty Weight: 13,858 lbs
