Registration No: N9070P
Serial No: 24-4538
Total Time: 4720.5 hours

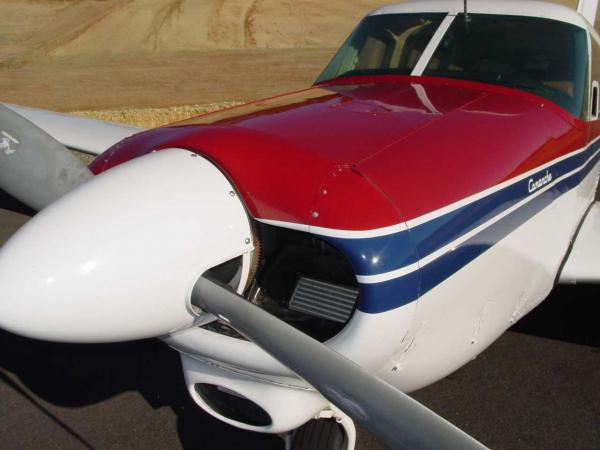

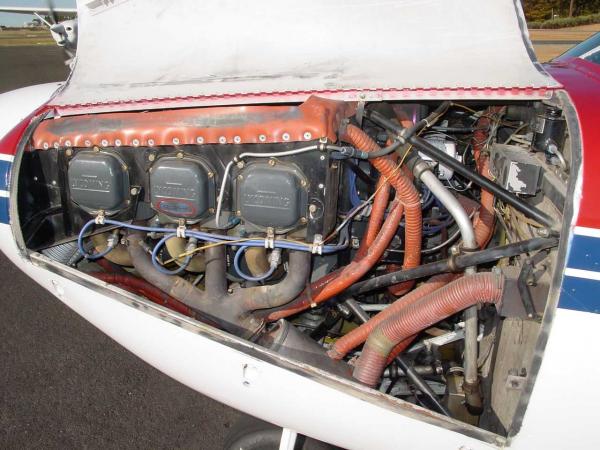

Engine Time: 1225.88 Hours SMOH on Lycoming IO-540-D4A5 with 6 Factory New Cylinders to Factory New Standards by Johnston Aircraft Service, Inc, Tulare, Ca in 1996. (FAA Certified Repair Station #BG4R075M). Mags, Starter and Fuel System were overhaul to Factory New Standards.
Prop time: 1387.5 Hours SPOH on Hartzell HC-C2YK-1B Two Blade. (Ser# CH1615) Webco Aircraft A-750 Vernier Control.
Annual Due: 8/2008
Useful Load: 1172 LBS.

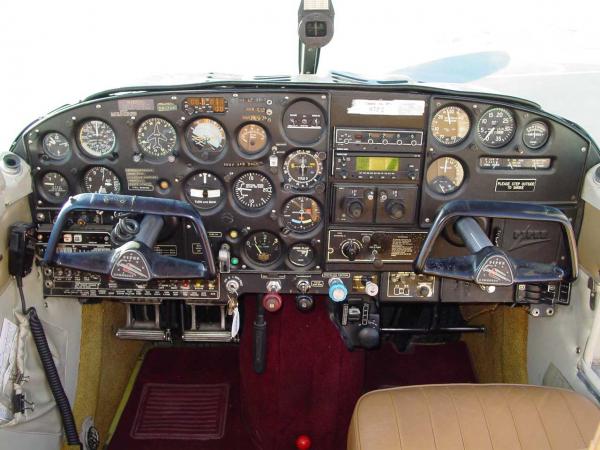

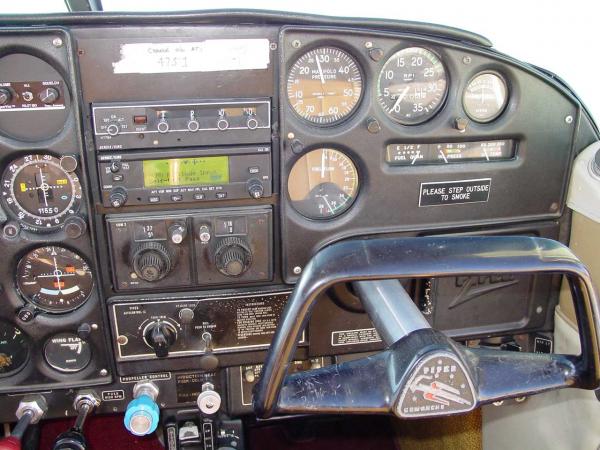

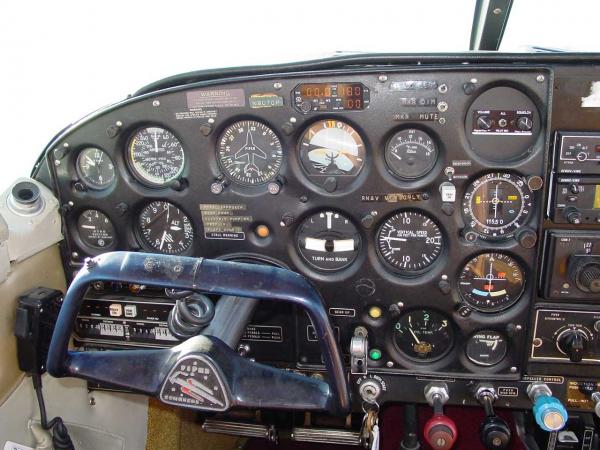

AVIONICS
Basic IFR Equipped
Piper Audio Panel with Narco PM-1 Remote 3 Light Marker Beacon

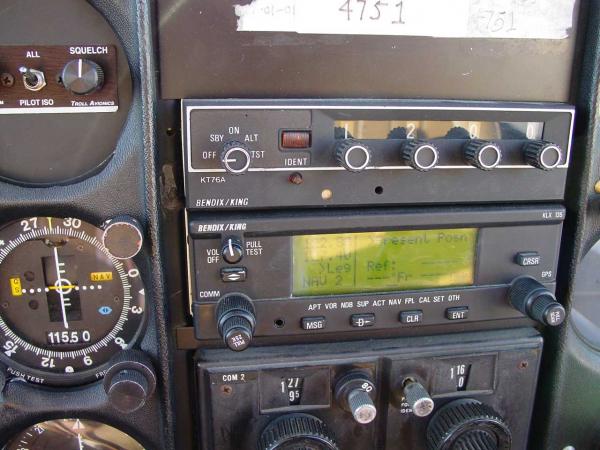

Bendix King KLX-135A Panel Mounted GPS/Com
Narco Remote VOR/Glide Slope Indicator
Narco Mark 12 Nav/Com
Narco Localizer/VOR/Glide Slope Indicator
Bendix T12C ADF
Narco 195 DME
511 ARNAV
Bendix King KT-76A Transponder with Mode C
Piper Autocontrol II Autopilot
Hpervox 4 Place Intercom
EGT/OAT/CHT Gauges
Piper Fuel Flow Indicator
Remote Compass
True Airspeed
Pilot's side yoke mounted Push-to-talk
Clock
AIRFRAME
90 Gallons Long Range Fuel (Four Tanks)
Baggage Door
Webco Aircraft Alternate Air (STC'd)
Bogert Aviation Copper Electrical Cables (STC'd)
United Instruments Altimeter
Electric Flaps
Wingtip Strobes
Wingtip nav lights
Dual Wing Tip Landing Light
Pitot Heat

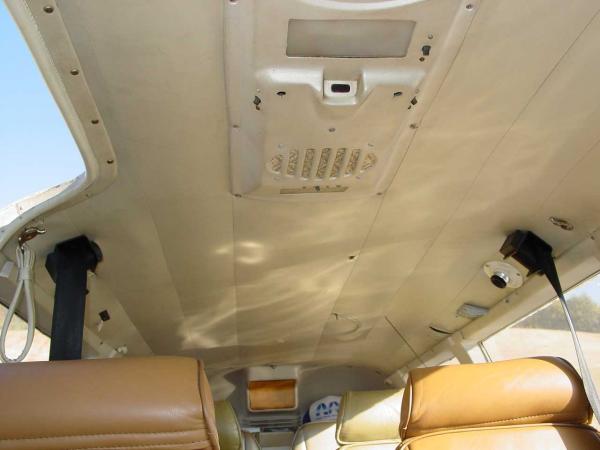

Overhead Lighting and Air Vents
Pilot and Copilot Inertia Reel Harnesses
Six seats
Bracket Air Filter (STC'd)
Full Flow Oil Filter
Rudder Trim
Whelen Cabin Mounted Rotating Beacon
Fire Extinguisher
New Tires
INTERIOR

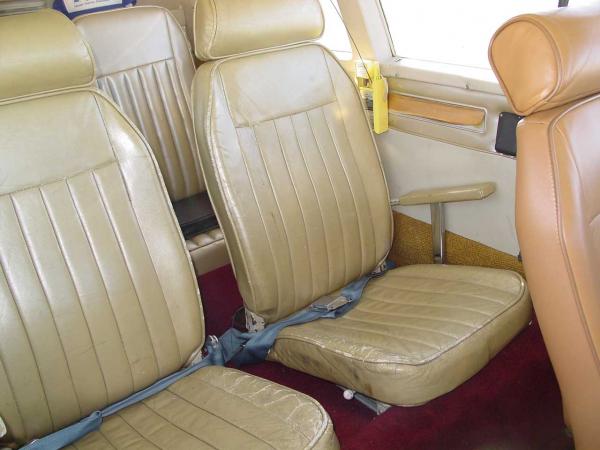

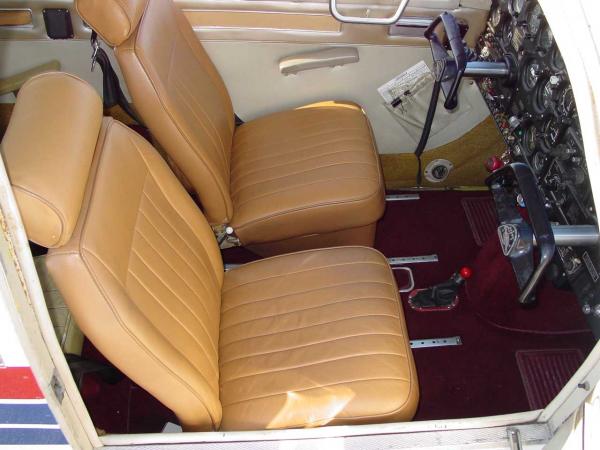

Tan Leather seats with original side panel. Six place seating. Rated 6 out of 10.
EXTERIOR

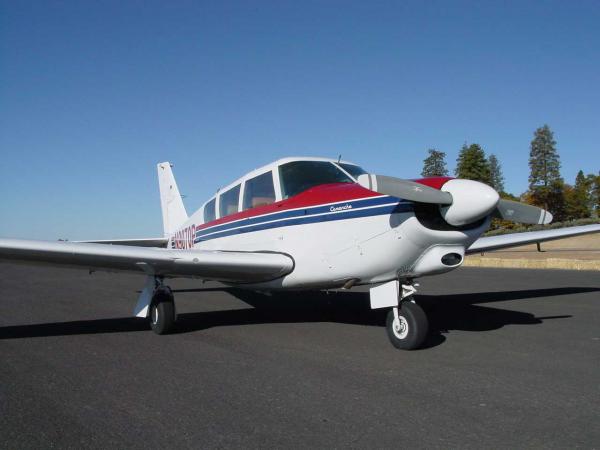

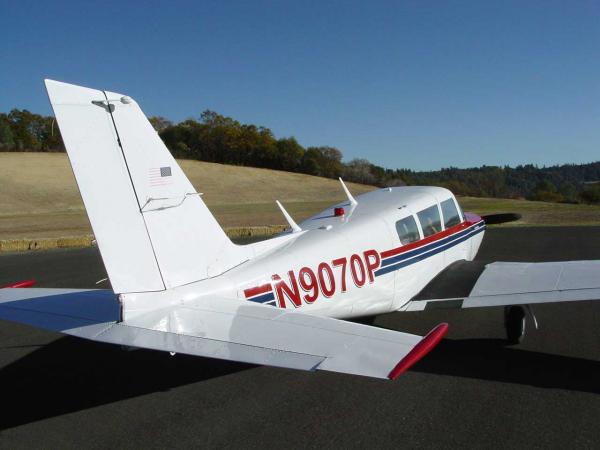

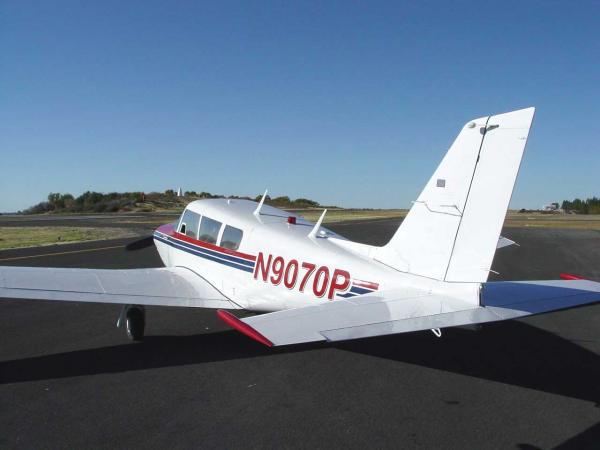

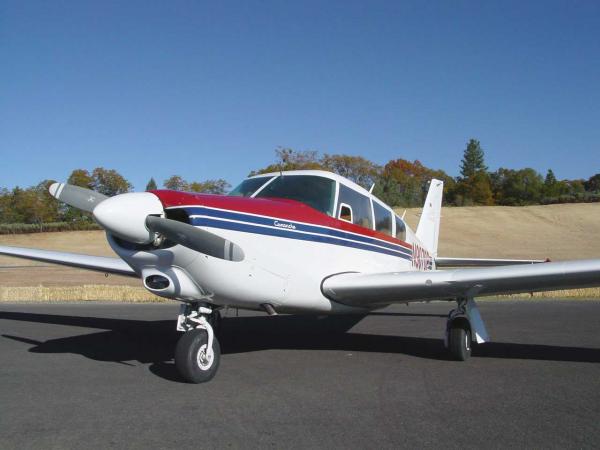

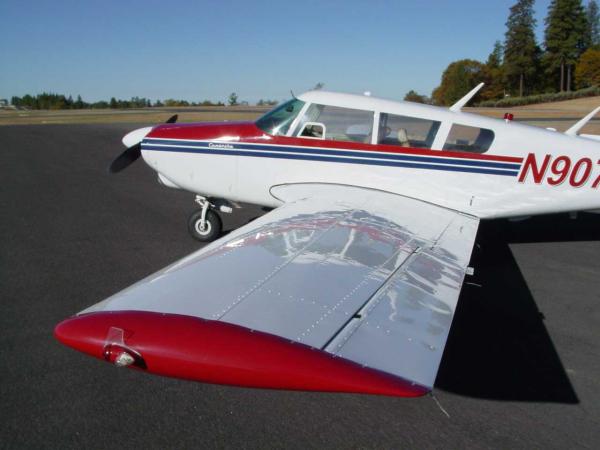

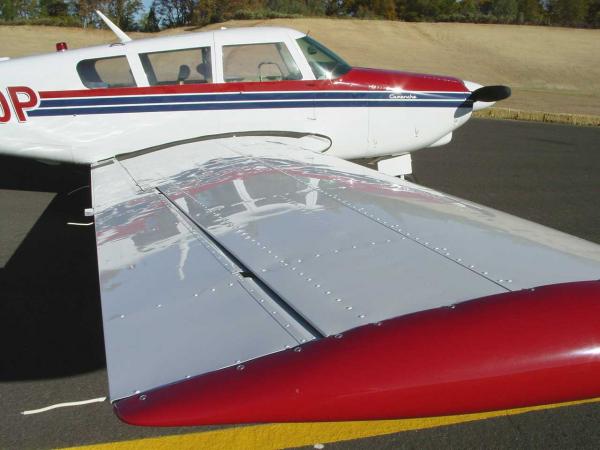

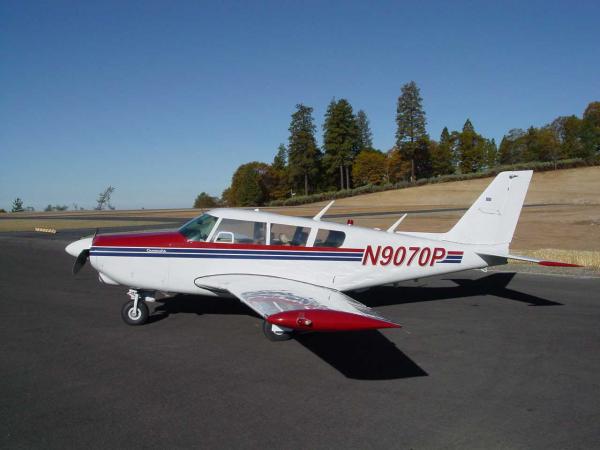

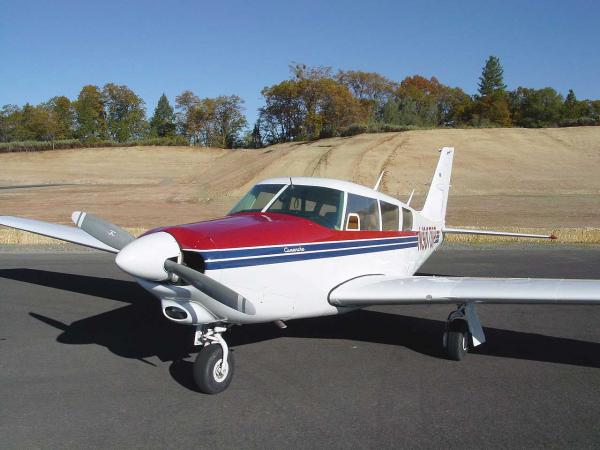

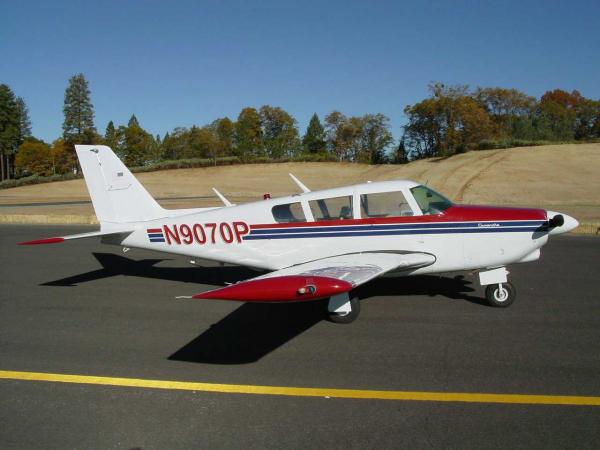

Like new paint in Overall Vestal White with Red Major and Blue Minor. Exceptionally nice airframe. No dents. Rated 9 out of 10.
HISTORY

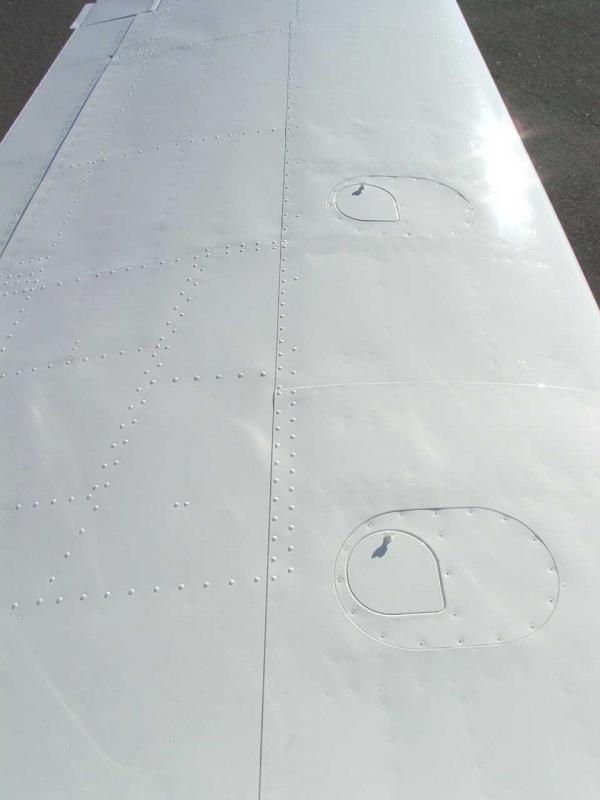

Complete history will be posted upon receipt of FAA records. We own this aircraft and is now hangared at our facility in Placerville, Ca. All logs since new, Right wing tip and right stabilator skins replace with new in 1971. No reason given. No hail. For first right of refusal our policy is a signed order (Subject to Inspection by Purchaser) and a $5000 refundable deposit.
PRICE
$69,900 USD
Get an Insurance Quote HERE
|
| The values portrayed here are from manufacturers' data and are not representative of any particular aircraft. |
PIPER PA24-260B COMANCHE
| Engine: LYC O-540-D |
75% Cruise: 158 kts |
Wingspan: 36.00 ft |
| Horsepower: 260 |
Stall: 56 kts |
Length: 25.25 ft |
| Rec'd TBO: 2000 hrs |
Range: 725 nm |
Height: 7.42 ft |
| |
Svr Ceiling: 21400 ft |
Empty Wt: 1728 lbs |
| Std Fuel: 60 gal |
Rate of Climb: 1370 ft/min |
Gross Wt: 3100 lbs |
| Max Fuel: 90 gal |
|
|
Takeoff (over 50 ft obstacle): 1725 ft
Landing (over 50 ft obstacle): 1435 ft |
Takeoff: 1260 ft
Landing: 925 ft |
|
|
|
 |
