Aircraft Summary

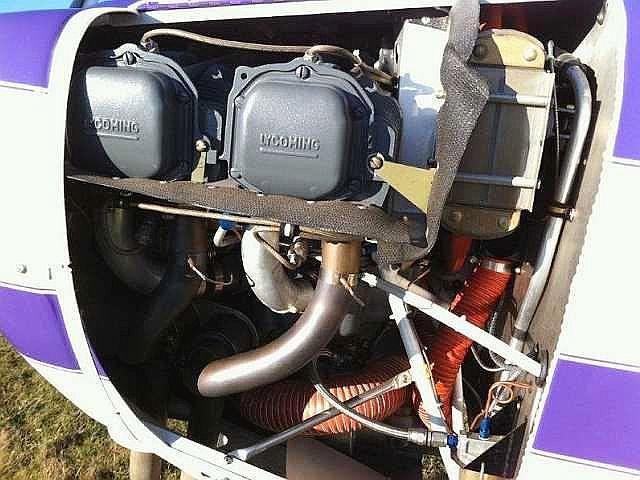

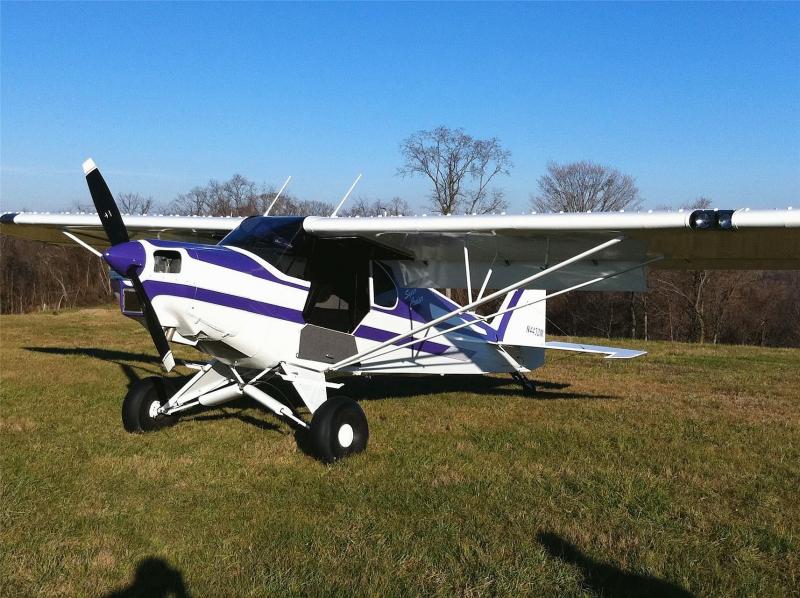

This PA-12,(N4433M), is a Cubs Unlimited masterpiece with over 30 major modifications. A few of them are the new Dakota Airframes replacement fuselage, a factory new O-360-A2A engine, Atlee Dodge 30.5 gal tanks with left, right, both selector, Cub doors on both sides, 96” flaps, lower and upper baggage, welded float fittings, 26” tires. The airplane has less than 40 hours since it was built. Words cannot do justice to this airplane, it must be seen!

    Avionics

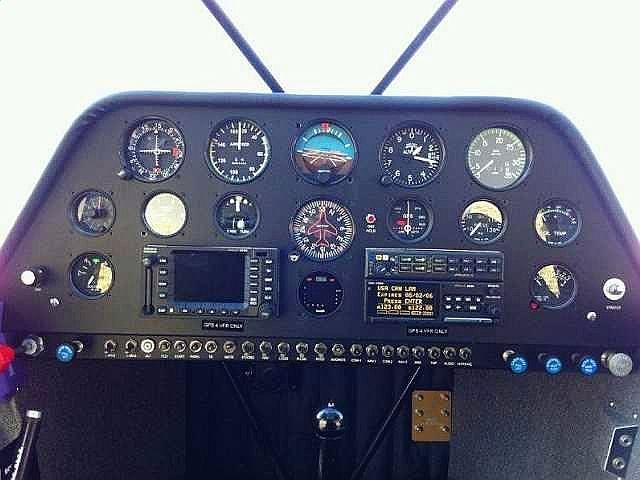

    • PS Engineering PMA 7000 Audio Panel • Garmin CNX80/WAAS/NAV/COM • Apollo GX60/Com • Insight Engine Analyzer • MD200-302 Series Course Deviation Indicator • M40 Course Deviation Indicator • Apollo SL 70R Mode A/C Transponder • Apollo SL15 Audio Selector Panel • ACK A-30 Altitude Encoder • Marker Beacon Antenna • Apollo A-33 GPS Antennas (2 ea) • Transponder Antenna • Comat Industries Vee Dipole Antennas (2 ea) • Ameri-King Corp. AK-450 ELT
    Additional Equipment
    • McCauley 1A200/DFA 8245 Propellor • PA18 Spinner Assembly • Interav 60 Amp. Alternator • Rear Mounted Oil Cooler • Bracket Air Filter • Custom Fiberglass Engine Cowling • Atlee Dodge 30.5 gal. Fuel Tanks in both wings • Vernier Mixture Control • Modified Fuel System (left, right, both, off) • Air Wolf Engine Oil Filter • New Dakota Airframes Replacement Fuselage • Extended nd Squared-off Wings with Fiberglass Tips • BLR Vortex Generators and Strakes • Ailerons moved outboard • 96" flaps installed • Squared-off Rudder and Elevators • Left Side Cabin Door installation • Lower Extended Baggage Compartment • Cargo Tie Down Rings • Upper Baggage Compartment • Right Side Cargo Door • Custom Cabin Interior and Baggage Compartment Panels • Custom Enlarged Square Instrument Panel • Gross Weight Increase Modification • F.Atlee Dodge Rear Seat Heater • F.Atlee Dodge Windshield Defroster • PA18 Front Seat Assembly • PA18 Style Landing Gear installed with 6" extension • Overhead Skylight • Welded on Float Fittings • Heated Pitot System • Inertia Shoulder Harnesses with Belts, front and rear • Whelen Strobe Lights with Nav Lights • Landing Lights in both wings • Cleveland Wheels and Brake assemblies • Goodyear 26" Tires and Tubes • Landing Gear Safety Cables • Scott 3200 Tail Wheel Assembly with HD Pawnee Spring • Sealed Lifetime Univair Wing Struts • Mitchel Tachometer • Kollsman Altimeter • Sigma-Tek Directional Gyro • S.I.R.S. Navigator Compass • UMA T16-31 Airspeed Indicator • RC Allen Turn and Bank Indicator • Mitchell Electric Clock • UMA Electric Oil Temp. Gauge • UMA Dual Amp/Volt Gauge • UMA Oil Pressure Indicator • UMA Vertical Speed Indicator • Vacuum Gauge • UMA Instrument Lighting System
    Interior
    • New Custom Interior
    Exterior
    • New Stitts Poly with Epoxy Primed Frame. New Glass, Custom Exterior Paint.
