Aircraft Summary
June 2011 Annual, New Prop, GEM/FF, Speed Mods, GAMIs, King IFR w/Altimatic IIIC A/P, Complete Logs, Paint 1996, Interior 1996

  • T-Tail Stability Advantages!
  • *Pitch Configuration Changes Not As Strong as the Low Tail.
  • *Enhanced Rudder Effectiveness.
  • *Less Vibration

  • Complete Logs. JUNE 2011 ANNUAL by Solley Aviation – KCPC. IFR Certification Due: Now. Based at KCPC Airport, NC


    Engine Specs:
  • Lycoming IO-540-K1G5D, S/N L-19134-48A (Replaced L18126-48A in 1986) 300HP, 2000-TB0, 634-SMOH, 4557-TTE
  • 2010 Compression Readings, Cylinders 1-6: 74, 72, 70, 74, 74, 74
  • 2002 O/H by Devine Engines of TX
  • --------------------------------------------------------------------------------
    Prop(s):
  • Hartzell 3-Blade Constant Speed with Polished Spinner, 217-SNEW (2006)
  • --------------------------------------------------------------------------------

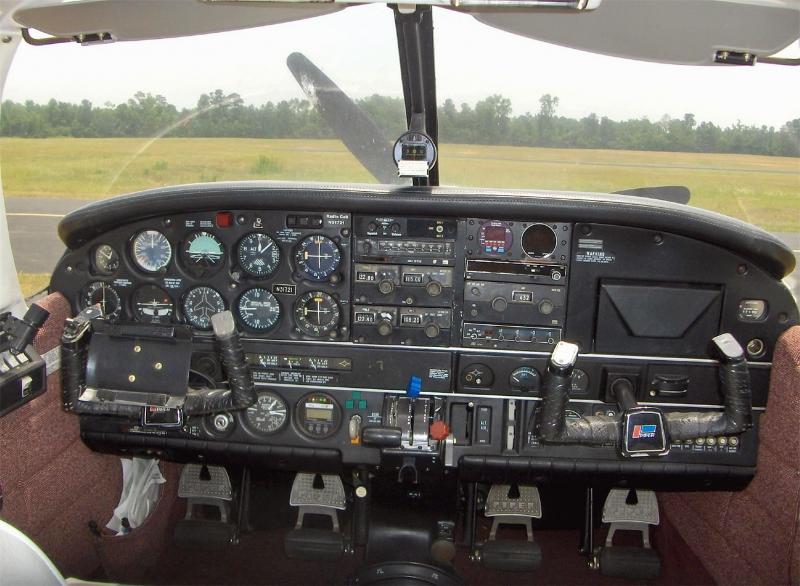

Avionics
  • King KMA-20 Audio Panel with Marker Beacon
  • King KX-175B Nav/Com #1 with Remote VOR/LOC/GS Indicator
  • King KX-175B Nav/Com #2 with Remote VOR/LOC/GS Indicator
  • King KR-85 with KI-225 Indicator
  • King KN-64 DME with KA-32 Antenna
  • King KT-76A Transponder
  • Altimatic IIIC Autopilot
  • JPI FS-450 Fuel Flow System
  • EI US-8A Digital Engine Analyzer & VA-1A Volt/Amp Gauge
  • Ameri-King AK-450 ELT (New 2011), Batteries due MAR 2016
  • Flightcom Model 403MC Intercom
  • Horizon P-1000 Digital
  • --------------------------------------------------------------------------------
Additional Equipment
  • Electric Trim
  • Clock
  • Arm Rests
  • OAT
  • Wingtip Strobes
  • Map & Courtesy Lights
  • Heading Bug on DG
  • EGT
  • Overhead & Floor Mounted Vents
  • Brackett Air Filter
  • 94 Gallons Fuel Capacity
  • Dual Toe Brakes
  • Utility Door for Rear Baggage
  • Oil Separator
  • Forward Baggage Area
  • Courtesy Step & Handle
  • RMD Wingtip Recognition Lights
  • Beverage Console
  • GAMIjectors
  • Sun Visors
  • Crew Shoulder Harnesses
  • Pitot Heat
  • Alternate Static Source
  • Alternate Air
  • Static Wicks
  • External Power Plug

  • Knots 2 U Speed Mods Including: Wing Root Fairings, Gear Lode Fairing,
  • Flap-Aileron, Flap-Fuse, Stab & Gap Seal Kit, Flap Hinge Fairings
  • --------------------------------------------------------------------------------
Interior

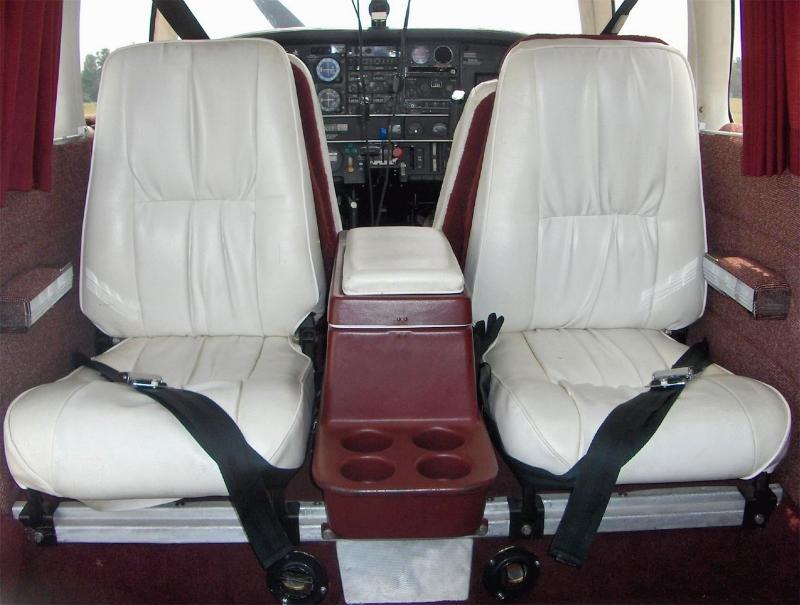

  • (Rated 7/10): 1996 Refurbishment Club Seating Pearl Leather Upholstery, Maroon Side Walls, Carpet & Curtains
  • --------------------------------------------------------------------------------
Exterior
  • (Rated 6/10):
  • 1996 Paint DuPont White IMRON Base, Maroon, Gold Trim
  • --------------------------------------------------------------------------------
Remarks
  • *Approximately 100 flown between 2010 & 2011 Annuals.
  • *Recent Maintenance 2010: Installed Overhauled Vacuum Pump, 2008: All Rocker Box Gaskets Replaced, 2006: Installed New Aircraft Battery, 2005: Installed Overhauled Gear Hydraulic Power Pack, 1997/92: Treated with ACF & Corrosion X.
  • Performance:
  • 165 Knots Max Speed
  • 156 Knots Cruise
  • Service Ceiling: 15,400 Feet
  • Gross Weight: 3600 lbs.
  • Range: 748 nm
  • REPAIR NOTES:
  • NOV 2005: Prop Strike due to Gear Collapse during Landing at K1A5 Airport
  • Engine Tear Down by TRIAD Engines, New Prop Installed
