| Equipment Specifications |
 |
|
| Year |
1989 |
| Manufacturer |
PIPER |
| Model |
MALIBU MIRAGE |
| Price |
Call |
| Location |
Camarillo, California |
| Condition |
Used |
| Serial Number |
4622037 |
| Registration Number |
N61FL |
| Total Time |
3790 Hours |
| Flight Rules |
IFR |
| Number Of Seats |
6 |
| General Information |
| 230 SMOH, Full Garmin Panel w/ Garmin 530 WAAS, 430, 340, GTX330, Complete Logs, Known Ice Protection |
| Detailed Description |
Ready to move quickly, nice upgrades including a full Garmin panel, recent Paint and Interior.
This aircraft did sustain a prop strike January 11 2006 at 3224.2TT (926.8 engine). The aircraft and engine were inspected and repaired, and the aircraft received a new prop at this time.
Major overhaul was performed by Tim's Aircraft Engines FAA Repair Station T22R537Y November 7, 2007 at 3558.3TT (1260.9 engine).
Aircraft has seen extensive maintenance in the past 6 months by the prior owner to bring the aircraft to a good level of maintenance compliance.
Airframe:
Length: 28 ft 11 in (8.81 m)
Wingspan: 43 ft 0 in (13.11 m)
Height: 11 ft 4 in (3.44 m)
Wing area: 175 ft² (16.3 m²)
Max takeoff weight: 4,300 lb (1,950 kg)
Max Differential Pressure: 5.1 psi
Forward area: 100 lbs, 13 cubic feet
Rear area: 100 lbs, 20 cubic feet
Engine Specs:
Textron Lycoming TIO-540-AE2A, 6-cylinder, turbocharged, fuel-injected, horizontally-opposed engine, 350 hp (260 kW)
230 SMOH
Oil Capacity: 12 qts
Prop(s):
3 Blade Hartzell Propeller
Prop Total Time 566 hours
Modifications/Conversions:
Spoilers
New Windshield (GLASS)
New Pilot Side window

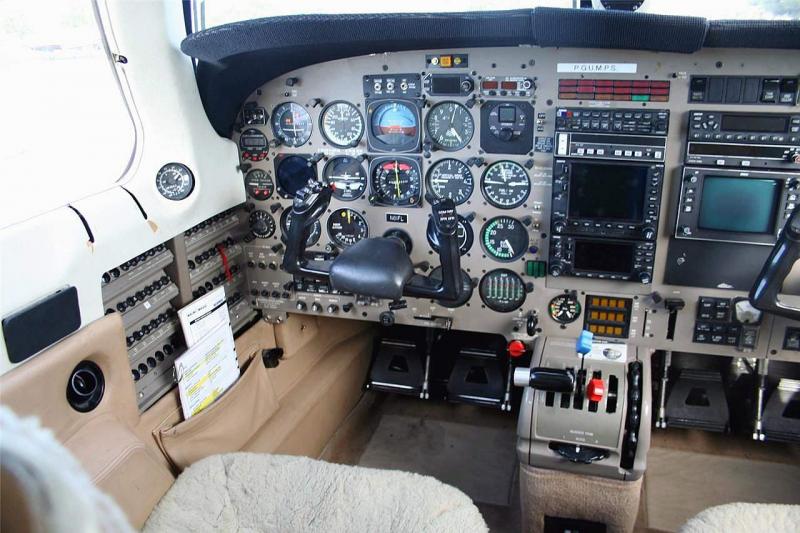

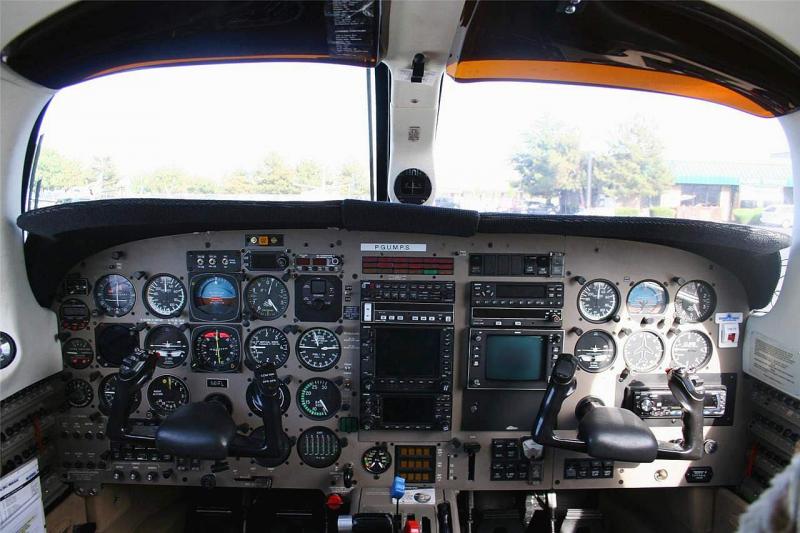

Avionics/Radios:
Garmin 530 WAAS NAV/COM/GPS
Garmin 430 NAV/COM/GPS
Garmin GMA-340 Audio Panel
Garmin GTX-330 Transponder
Garmin GDL-69A
King KFC 150 Flight Control System w/ Single-Cue V-Bar and Yaw Damper
King KAS 297B Altitude Alert & Vertical Speed Pre-Select
Bendix RDR 2000 Color Radar w/ Vertical Profile
KCS 55A Compass System with KI 525 HSI
Ryan TCAD-9900BX Traffic System.
Icarus Roll Steering Module
Tanis Heating System.
Bendix RDR 2000 Color Radar w/ Vertical Profile
Additional Equipment:
Known De-Ice Group
Co-Pilot Instruments
Air Conditioning
Shadin Fuel Computer
CHT Gauge
Ground Clearance Switch
Wing Tip Strobes & Recognition Lights
Electric Trim (Pilot)
AM/FM/CD Stereo System
Landing and Taxi Lights
Courtesy Lights
Digital Chronometer
Year Painted:
2002

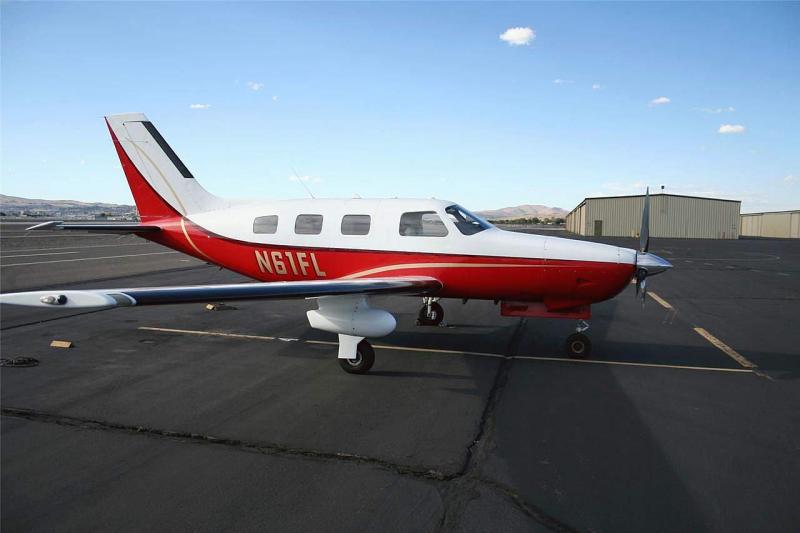

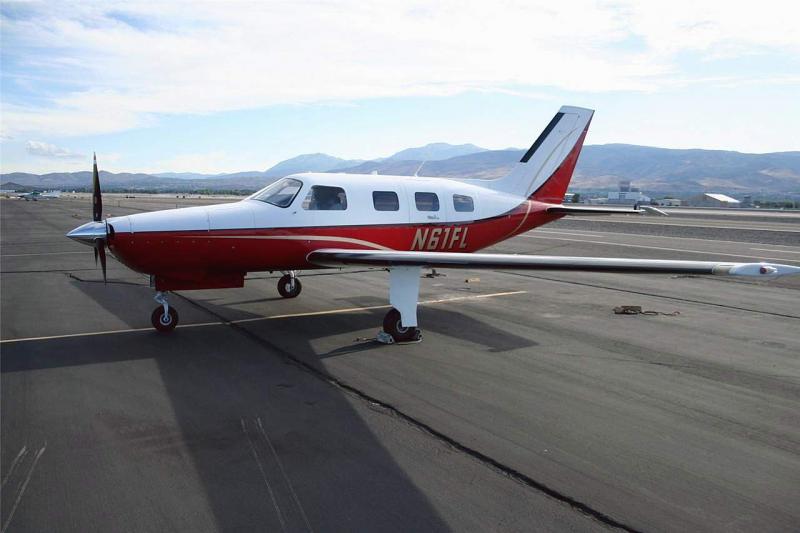

Exterior:
New Paint 2002 - White with Red, Black and Gold accents. Hangared since new
Year Interior:
2002

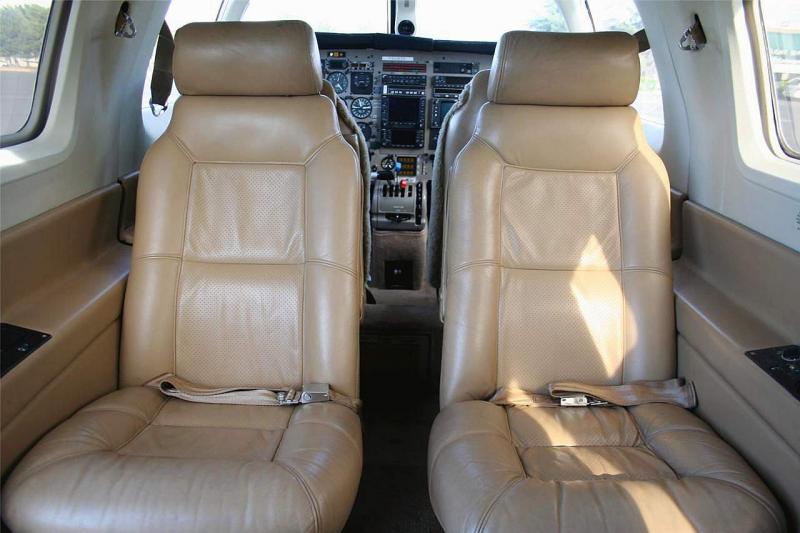

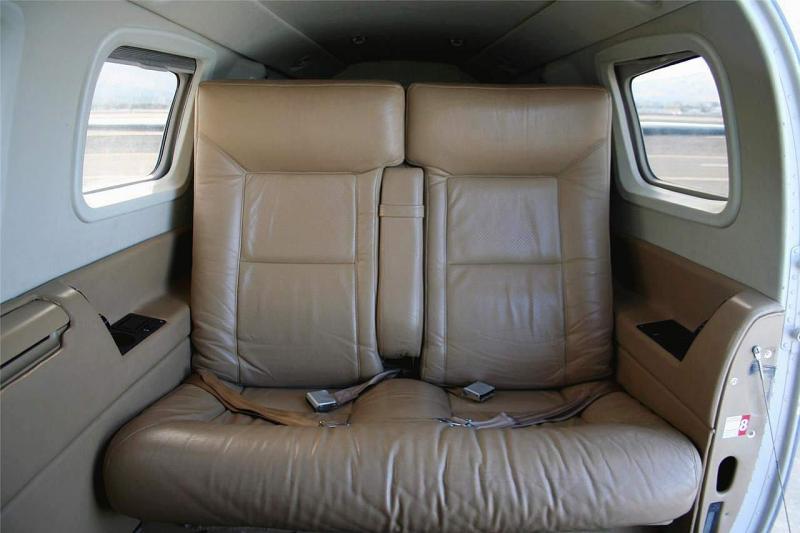

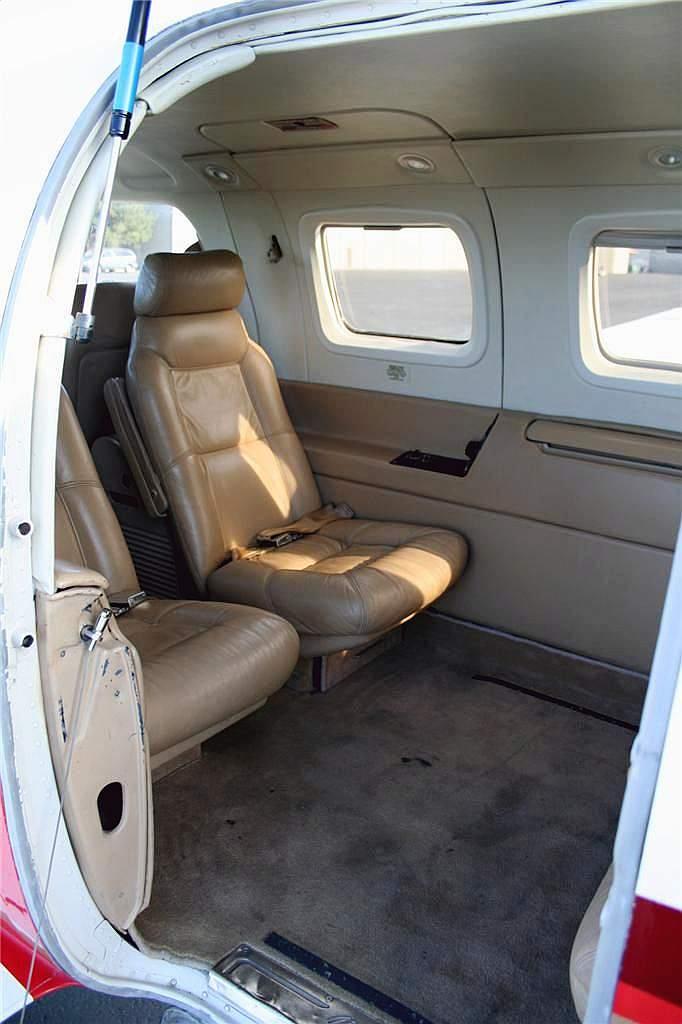

Interior:
New Interior 2002 - Full Leather seats and side panels, new carpet. Leather and Sheepskin |
|
|
 |
