| Airframe: |
|
Total Time: 774 Hours since New
|
| Powerplant: |
|
Pratt & Whitney PT-6A-42A (500 SHP, 3,600 TBO)
|
| |
|
Serial Number: PCE-RM0039
|
| |
|
Engine Total Time: 774 Hours since New
|
| Prop(s): |
|
Hartzell HC-E4N-3Q/E8501B-3.5 (Four Blade)
|
| |
|
Hub Serial Number: HH1035
|
| |
|
Blade Serial Numbers: J51821, 823, 824 & 828
|
- Two Owner Aircraft since New
- Engine Trend Monitoring since New
- No Damage History
- Empty Weight: 3474.71 Lbs*
- Useful Load: 1375.29 Lbs*
|
| |

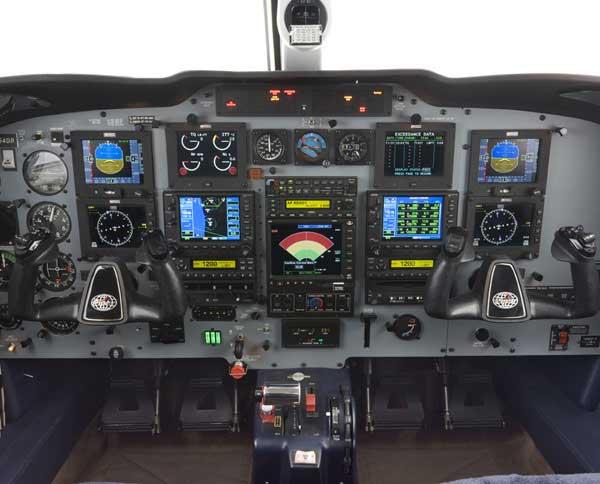

Garmin & Meggitt Avionics Suite withover $40,000 of Upgrades
- COM/NAV/GPS (1): Garmin GNS 530 w/EFIS Provisions
- COM/NAV/GPS (2): Garmin GNS 530 w/EFIS Provisions
- Transponder: Garmin GTX 330 w/EFIS, Dual GPS & Alt. Pre-SelectProvisions
- VOR/LOC Indicator: Garmin GI-106A
- ADF System: S-TEC RCR-650A w/EFIS Provisions
- DME System: S-TEC DME-451 w/450 Indicator (EFIS Provisions)
- Audio Panel: Garmin GMA 340 Audio Amp/Intercom Installation w/EFISProvisions
- Radar: AlliedSignal RDR 2000 VP w/EFIS Provisions
- Stormscope: B.F. Goodrich WX-1000E w/EFIS Provisions & Checklists
- Radar Altimeter: AlliedSignal KRA-10 w/EFIS Provisions
- ADAHRS (1): Meggitt 37002-01-01
- ADAHRS (2): Meggitt 37002-01-01
- NAV Display (1): Meggitt 84-134-1
- NAV Display (2): Meggitt 84-134-1
- Primary Display (1): Meggitt 84-133-1
- Primary Display (2): Meggitt 84-133-1
- MFD Display: Garmin MX-20 w/WSI Satellite Weather Downlink & ChartView
- TAWS: Terrain Avoidance Displayed on MX-20 System
Autopilot System & Features:
- System: Magic 1500 Upgrade S-TEC including:
- Flight Computer
- Flight Director
- EFIS Provisions
- Altitude Pre-Select
- IAS Selection
- Trim Monitoring & Full Coupling
|
| |

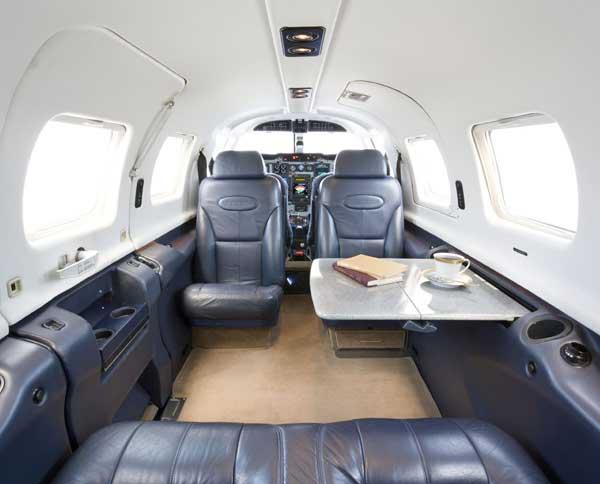

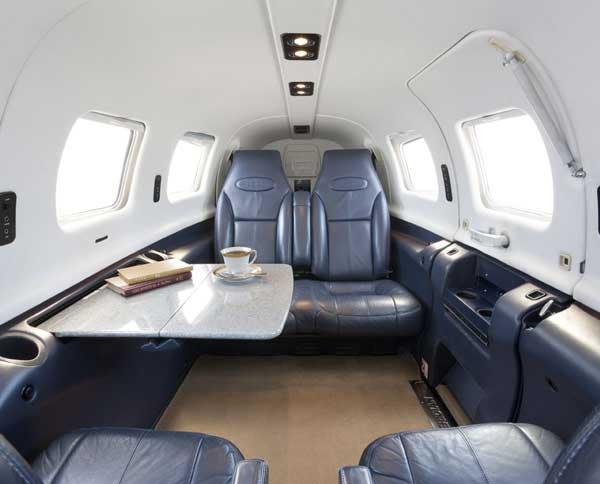

- Beautiful six passenger interior with rear 4-place club arrangement, pilot& co-pilot seating. Club seating area is Sapphire Blue Leather, withmatching sheepskin upholstered pilot & co-pilot seating. Carpeting is Topazpile. Dado panels & drink rails are Sapphire Blue Leather with a Whiteheadliner. Seat belt webbing and cargo netting is Black. Right hand refreshmentcabinet is Dark Wood Grain finished and club table is Marbled Grey Composite.
|
| |
- Paint Type: DuPont Imron 6000. Overall New Piper White (L0006HL) with NewPiper Metallic Blue (L5956HL) Underside. Accent striping in Blue (L0306HL),Black (L0001HL) & New Piper Metallic Gold (L5956HL).
|
| |
- In-Panel PS Engineering CD Player
- Pilot & Co-Pilot Seat Lumbar Support
- Factory Air Conditioning System
- Pilot Demand & Emergency Oxygen Systems
- Meggitt Fire Detection System
- Fire Extinguisher Installation
- Bose Noise Damping System
- Engine Compressor Wash Kit
- Right Hand Refreshment Center
- Relief Tube
- G-Meter
- Cabin A/C Power Adapter System
- LoPresti Nose Gear & Wing Tip 'Boom Beam' Lighting Kits (Approximately$4,000)
- Bose Intercom System (Hardwired with Plug-Ins)
- Aircraft Antenna Plug-In for Handheld Radio
Ice Protection includes:
- Left & Right Heated Pitot Heads
- Heated Propeller System
- Ice Light Installation
- Heated Pilot Window
- Pneumatic Boots (Wings, Horizontal & Vertical)
- B.F. Goodrich De-Icing Timer
|
| |
- Conklin deDecker Associates Evaluator Figures for Piper Meridian
General Comparison
- Cabin
- Height (Ft.): 3.10
- Width: 4.20
- Length: 10.20
- Volume (Cu. Ft.): 120.00
- Door Height (Ft.): 3.60
- Width: 2.00
- Baggage -Int. (Cu.Ft.): 20.00
- Typical Crew/Pass Seating: 1/5
- Exterior Dimensions (Ft.)
- Wingspan: 43.0
- Length: 29.6
- Height: 11.3
- Hangar Footprint (Sq. Ft.): 1290
- Weight
- Max Take-off (Lbs.): 5,092
- Maximum Landing: 4,850
- Basic Operating: 3,636
- Usable Fuel: 1,140
- Payload
- Full Fuel (Lbs.): 358
- Maximum: 1,580
Performance Comparison
- Range-NBAA IFR Reserves (Nautical Miles)
- Seats Full: 550
- Ferry Range: 980
- Balanced Field Length (Ft.): 2,000
- Landing Distance - FAR 121: 1,950
- Rate of Climb (Ft/Min): 1,556
- Cruise Speed
- Max (KTAS): 267
- Normal: 262
- Long Range: 225
- Stall Speed (IAS): 61
- Ceiling-Service MTOW (Ft.): 30,000
- Fuel Burn (Gallons per Hour)+15%: 44
|
| |
|
|
 |
