Aircraft Summary

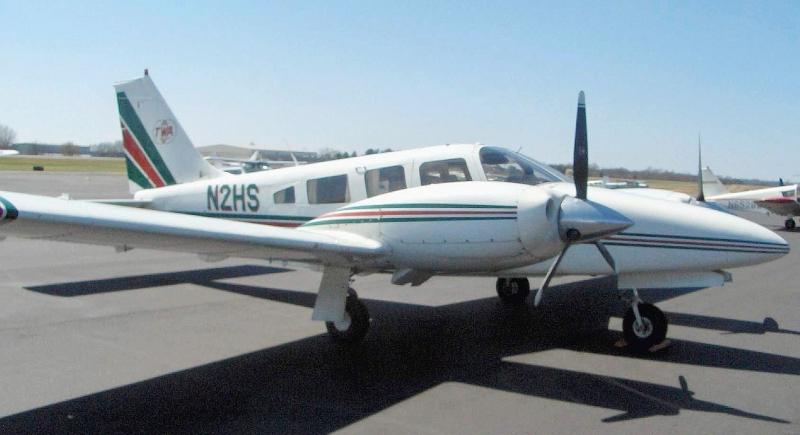

Very nice Twin Turbo Seneca II with low time engines and props. Alot of airplane for the money! Open to offers!

  • One of PLANE & PILOT Magazines 25 Best Aircraft Investments

  • One of PLANE & PILOT Magazines 10 Most Undervalued Airplanes





  • 1346 Lbs. Useful Load!

  • Complete Logs

  • Hangared at KSVH

  • Formerly N8111J


    Airframe:
  • 3989-TTAF
  • --------------------------------------------------------------------------------
    Engine Specs:
  • Engine :

  • (200-HP, 1800-TB0 with RayJay Turbochargers)





  • LE: TCM TSIO-360-EB, S/N 234638-R (0-Timed Factory Rebuilt Engine)

  • Replaced the Original Engine in 1981; 353-SMOH by Triad (2006), 2762-TTE

  • L Engine, Cylinders 1-6: 70/80, 70/80, 71/80, 65/80, 72/80, 68/80





  • RE: TCM LTSIO-360-EB, S/N 312219, 681-SMOH by K-Aero (1997)

  • R Engine, Cylinders 1-6: 74/80, 73/80, 74/80, 73/80, 74/80, 74/80
  • --------------------------------------------------------------------------------
    Prop(s):
  • McCauley 3-Blade Constant Speed, 187-SPOH by H&H (DEC 2007)
  • --------------------------------------------------------------------------------

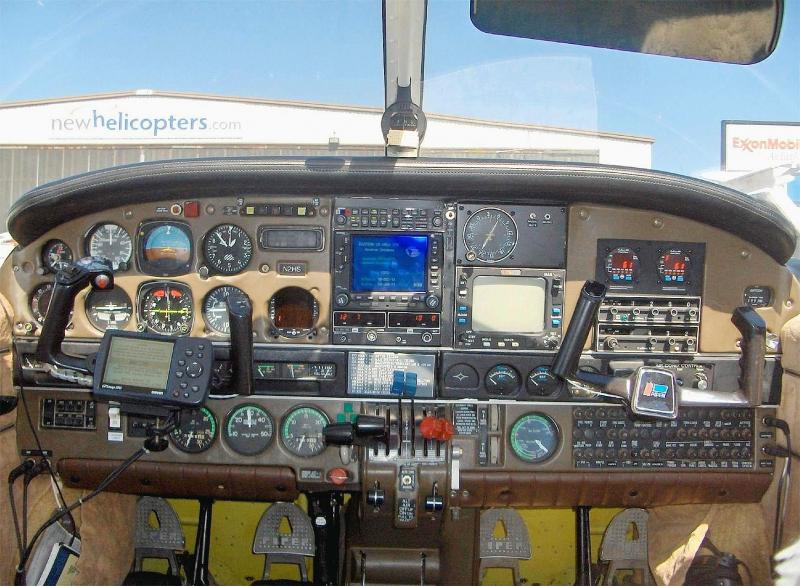

Avionics
  • Garmin GMA-340 Audio Panel with Marker Beacon & (6-Place) Intercom

  • Garmin GNS-530 Nav/Com/Color Moving Map/IFR GPS with Terrain GA-56 Antenna

  • Garmin 196 Yoke-Mounted Portable GPS/Moving Map

  • Garmin GDL-69 Datalink Weather Receiver with GA-55 Antenna

  • King KFC-200 2-Axis Fully Coupled Autopilot with ALT HOLD & Flight Director

  • King KC-295 Autopilot Computer

  • King KA-285 Mode Annuniciator

  • King KI-256 Attitude Indicator

  • King KCS-55A H.S.I. Compass System Featuring KI-525 Nav Indicator

  • King KA-51 Slaving Control & KMT-112 Magnetic Slaving Transmitter

  • King KI-208 Nav Indicator

  • King KG-102 Directional Gyro

  • Collins TDR-950 Transponder

  • Collins ADF-650A ADF w/IN-650 Indicator

  • Electric Trim

  • Bendix RDR-150 Color Weather Radar w/Beam Tilt & IN-2026A Display

  • JPI EDM-701 Engine Monitors

  • JPI FS-450 Fuel Flow Computers

  • Glide Slope Receiver (GNS-530)
  • --------------------------------------------------------------------------------
Additional Equipment
  • Push-To-Talk Buttons (Both Yokes)
  • Clock
  • Canopy Cover
  • Control Wheel Steering CWS
  • DATCON Hour Meter
  • Alternate Air
  • Polished Spinners
  • RMD Wingtip Lighting
  • Fiberglass Wingtips
  • Stainless Fasteners
  • Courtesy Step/Handle
  • Whelen Strobes
  • Overhead Vents
  • Door Seals
  • Static Wicks
  • Music Input Jack
  • Sun Visors
  • Remote A/P Disengage
  • LR Tanks: 123 Gallons Fuel
  • Dual Toe Brakes
  • Nose Baggage Compartment
  • Stainless Steel Fasteners
  • Sheepskin Inserts (Crew Seats)
  • Hat Rack
  • Utility Door for Rear Baggage
  • Auto Prop Synch
  • Dual ALCOR EGTs
  • Crew Shoulder Harnesses
  • Engine Primers
  • Portable Oxygen
  • Merlyn Waste Gate Conversion
  • Courtesy Lights
  • --------------------------------------------------------------------------------
Interior

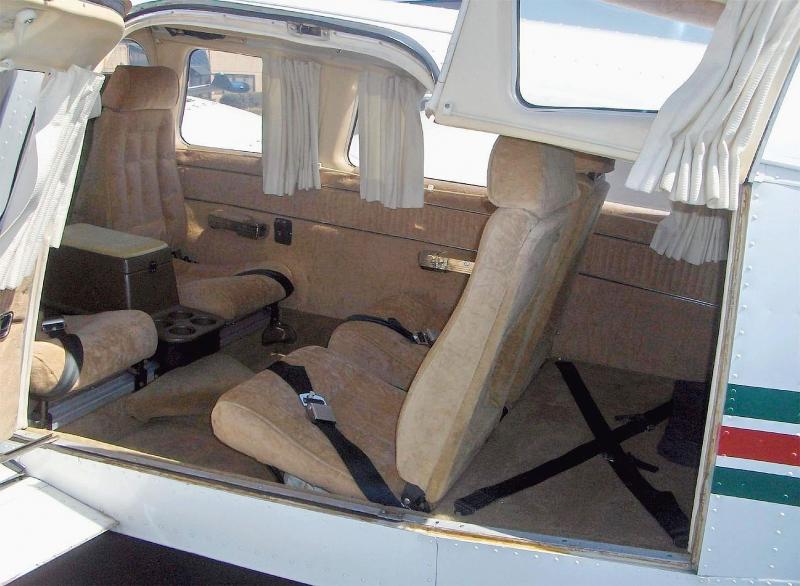

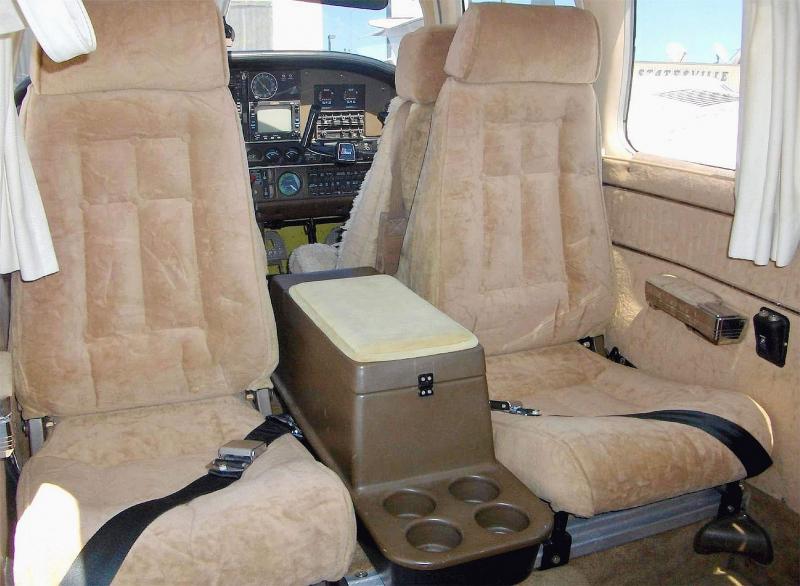

  • Original Interior, Rated 6/10. Tan Velour Seats with Perforated Inserts, Matching Side Panels, Headliner & New Airtex Carpet (2008).Club Configuration, Beverage Console, White Curtains & Plastic Trim, Head/Arm Rests
  • --------------------------------------------------------------------------------
Exterior
  • 1991 Paint: DuPont IMRON White Base with Green & Red Stripes, Rated 6/10
  • --------------------------------------------------------------------------------
Remarks
  • Push-To-Talk Buttons (Both Yokes)
  • Clock
  • Canopy Cover
  • Control Wheel Steering CWS
  • DATCON Hour Meter
  • Alternate Air
  • Polished Spinners
  • RMD Wingtip Lighting
  • Fiberglass Wingtips
  • Stainless Fasteners
  • Courtesy Step/Handle
  • Whelen Strobes
  • Overhead Vents
  • Door Seals
  • Static Wicks
  • Music Input Jack
  • Sun Visors
  • Remote A/P Disengage
  • LR Tanks: 123 Gallons Fuel
  • Dual Toe Brakes
  • Nose Baggage Compartment
  • Stainless Steel Fasteners
  • Sheepskin Inserts (Crew Seats)
  • Hat Rack
  • Utility Door for Rear Baggage
  • Auto Prop Synch
  • Dual ALCOR EGTs
  • Crew Shoulder Harnesses
  • Engine Primers
  • Portable Oxygen
  • Merlyn Waste Gate Conversion
  • Courtesy Lights
  • --------------------------------------------------------------------------------
  • Exterior:
  • 1991 Paint: DuPont IMRON White Base with Green & Red Stripes, Rated 6/10
  • --------------------------------------------------------------------------------
  • Interior:
  • Original Interior, Rated 6/10. Tan Velour Seats with Perforated Inserts, Matching Side Panels, Headliner & New Airtex Carpet (2008).Club Configuration, Beverage Console, White Curtains & Plastic Trim, Head/Arm Rests
  • --------------------------------------------------------------------------------
  • Inspection Status:
  • June 2011 Annual Inspection by Iredell Air Care/SVH Airport
  • IFR Certification Due: November 2011
  • ELT battery pack due April 2012


  • 1997: Prop Strikes Due to Nose Gear Collapse. Repairs Documented.


  • N2HS ADDITIONAL INFORMATION
  • 2009: Right Engine: #6 cylinder replaced with overhauled assembly due to cracks. #3 & #5 cylinders replaced with serviceable assemblies, new gaskets, new seals, and new rings from TRIAD ENGINES. New Gill aircraft battery installed.
  • 2008: All flexible fluid hoses replaced.
  • 2007: Installed overhauled alternator on right engine.
  • 2006: Merlyn Automatic Waste Gate Conversion. New turbocharger installed on right engine.
  • Left engine overhauled to manufacturers manual new limits by TRIAD ENGINES due to cylinder pre-detonation. Cost: $29,215. Cam reconditioned. Magnetos, fuel pump assembly, and fuel injector system rebuilt. New TCM cylinders, new Lamar starter, and new connecting rods installed. The counterweights were magna-fluxed, re-bushed & inspected. The crankshaft, alternator, turbo, over boost valve, oil cooler, and exhaust system were overhauled.
  • 1997: Botched landing resulting in nose gear collapse and prop strikes. Location: Stuart, FL.
  • Repairs by Stuart Jet Center, Stuart, FL completed FEB 1998 at 3309.5-TT.
  • Nose gear mount overhauled. Top fuselage skin and top instrument panel skins prepped, painted and replaced. Glass shields area recovered with black vinyl. Bent axle and thru bolt replaced. Installed new frame assembly at station 49.5, new right hand windshield, new fabricated hydraulic lines, used/serviceable nose gear bungee assembly, new nose wheel assembly, new brake reservoir, and new trim panels. All hydraulics, electrical, and avionics reconnected using new clamps and hardware. Props overhauled by Palm Beach Propeller. Left Prop received new blades, Right prop blades repaired. Engines removed for sudden stoppage - inspected and reinstalled by K-Aero, Inc.
  • Repairs by FAA CRS K-Aero, Inc. of Stuart, FL.
  • Left engine Turbo and turbine scroll inspected. Replaced engine mount, fuel vapor, parting surface gasket, and overboard exhaust tail pipe clamp (with used/serviceable Mormon clamp). Corrosion treated on surface of turbo. Installed used/serviceable fuel vapor return line from fuel pump to baffle and fabricated manifold drain lines. Returned starter cable at starter; New terminal end installed. Rebuilt, reinstalled, and resealed turbo oil supply inlet fittings. Mixture control cable repaired at fuel pump. Top overhaul at 3309.5 Tach.
  • Right engine Turbo and turbine scroll inspected, surface of turbo treated for corrosion, Replaced parting surface gasket and overboard exhaust tail pipe clamp (with used/serviceable Mormon clamp), installed used/serviceable fuel vapor return line from fuel pump to baffle and fabricated manifold drain lines. ENGINE OVERHAUL at 3279 tach.


  • 1990: Both windshields replaced.
  • 1985: Aircraft hydroplaned off departure end of runway due to heavy rain. Wings & nose repaired with factory new parts. Repairs by Wiggins Airways of Norwood, MA, FAA CRS 171.
  • Right engine overhauled by Mattituck installed at 2062 Tach.


  • N2HS has averaged 63 flight hours over the past 3 years:
  • 2008-2009: 65 hours logged
  • 2009-2010: 90 hours logged
  • 2011-2012: 35 hours logged


  • Additional notes:
  • All ADs applicable to this N2HS are recorded in the aircrafts records.
  • Aircraft is equipped with Bendix mags.
  • 20W-50 oil used
  • LoPresti Speed Mods feature gap seals, flap/hinge covers, speed spats, hub caps & engine cowlings.
  • Maintained by Iredell Air Care/KSVH Airport, NC USA.
