Total Time Since New: 6551
Serial # 36075 -
Total Time: 6029 /Overhaul Due: 664
Serial # 36076 -
Total Time: 6217/Overhaul Due: 1190
Gearboxes
Total Time Remaining Hours to TBO
Main Gearbox (Quiet)
6307.5 1061
Intermediate Gearbox
3793 1741
Tail Gearbox 4970 2418
Maintenance :
This aircraft has been maintained to the highest western standards
IAW the Sikorsky recommended maintenance schedule.
All Annual and 3 year Inspections were completed with the assistance
of either Air Hanson in the UK, Schreiner NorthSea Helicopter in the
Netherlands or Wiking in Germany.
Fresh Annual and 3 year Inspection as well as CSN 76-220A boom
modification installation kit to be completed before delivery.
Airframe features:
•Engine Air particle separator system (EAPS)
•Engine fire detection and extinguisher system
•Dual suction fuel system with crossfeed capability
•2 gravity-filled fuel tanks (281 US gallons)
•Provisions for main rotor tracker and tail rotor balancer
•Provisions for aux fuel tank, 50 gallon tank included
•Manual rotor brake system
System and Equipment features:
•Heated glass windshields
•Heated cockpit foot pads
•Emergency Flotation System
•Dual 22 Amp hour batteries
•Cabin Emergency Lightning system
•Battery power supply
•Forward-facing recognition light
•Rotor disk recognition light
Hinged/Lockable fuel filler caps
Dual windshield wipers & washers
Freon Air Conditioning (Parker-Hanifan)
Cabin/Cockpit bleed-air heating & ventilation
Dual digital battery temp indicator (Foxtronics)
Controllable nose-mounted search light
3-position strobe lights
Landing lights on left and right main gear
Pulselite system
•Under fuselage high intensity LED strobe

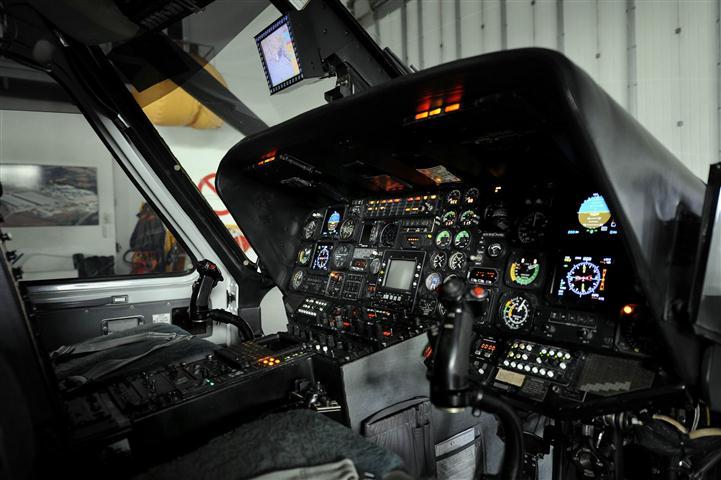

Avionics
•Sperry EDZ 705 EFIS with dual Sperry SPZ-7000 digital
automatic flight control system
•SFena H321 Stby Attitude Indicator w/ JET battery pack
•Dual Collins VHF-22A, Dual Collins VIR-32A
•Single Collins ADF-60A, Dual Collins DME-42
•Collins TDR-94D (Mode S), UNS-1A FMS
•Sperry Primus 500 Weather Radar,
•Sperry Data Nav with Checklist,
•Fairchild/Loral GA100 CVR,
•Moving Terrain w/ 12” cabin display Argus 5000 Moving Map
•Airman 750 Telex Cabin Audio Interphone (4 Headsets) 3M Ryan Stormscope
•Baker Cabin paging & chime system Wulfsberg VI Flitefone with pilot call
•Provisions for Microwave Landings System Artex C406-1 ELT

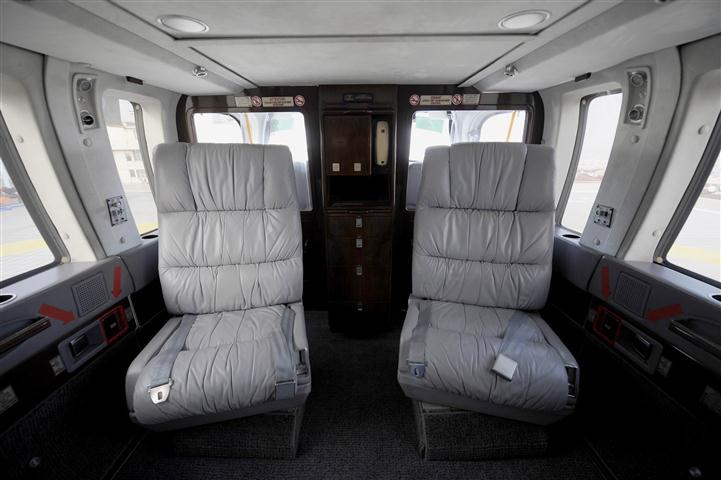

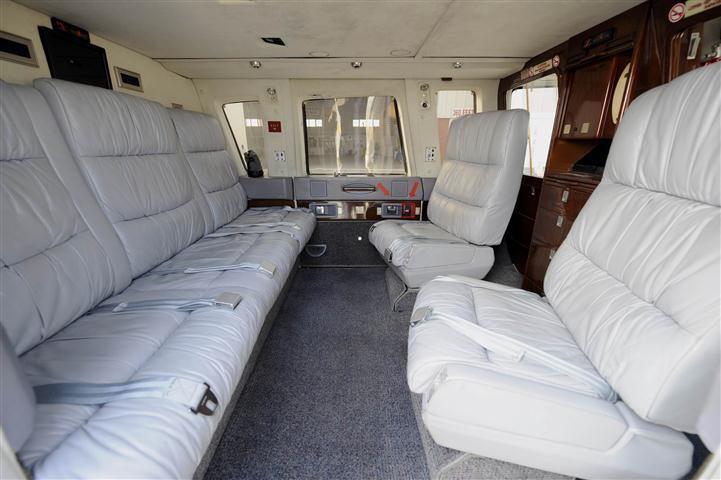

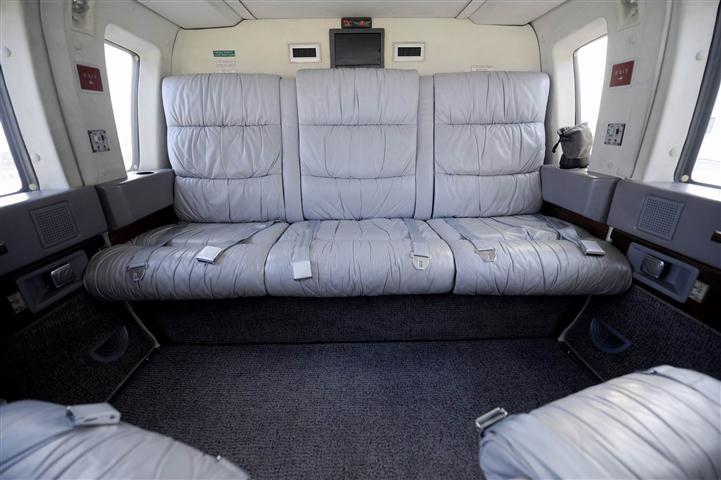

Cabin Configuration
6 pax executive interior configuration with a 4 place forward facing divan with fold-down table and 2
individual 360 degree swivel executive chairs with pull-up headrest and drop-down armrests. Floor-toceiling
refreshment credenza with hot liquid containers, ice and storage. Cabin/Cockpit divider bulkhead
with magazine racks and fold down table in front of each swivel seat. Portable Therapeutic oxygen bottle.
Gray leather seats with ultra suede sidewall and ceiling.
Keystone STC litter kit installation with included portable litter.
Alternative 8 pax configuration by installing included 4 place divan in place of the 2 aft facing executive
chairs.
Overhaul due
Engine Component /Service Life details & Calendar Inspection Schedule available upon request
Engines (PT6B-36A) |
