Collins Pro Line II Avionics Package featuring: Dual Collins VHF 22A Comms and VIR 32 Navs, Single ADF 462 ADF
|
- LANDINGS: 1955

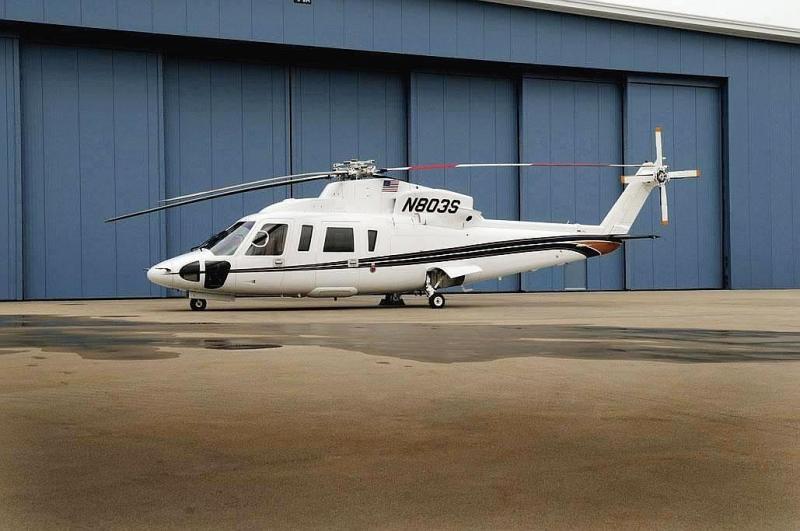

- Standard S-76C+ Aircraft featuring: two Turbomeca Arriel 2S1 Engines, Integrated Instrument Display System (IIDS), Four Blade Articulated Main Rotor System, Dual Controls, 28 Volt Electrical System with two 200 Amp Starter/Generators, Retractable Landing Gear, 281 Gallons Usable Fuel, Dual Windshield Wipers, Extensive Exterior Lighting, Bleed Air Heating and Defogging, Pilot and Copilot Seats with 5 Point Restraint/Harness, Large Cabin Area, 38 Cubic Foot Baggage Compartment.
- Customer Specific Options
- Install Eaton Fuzz Burner (1K7707 Zapper)
- 5-CD Changer/Tuner w/Remote, 4 audio jacks
- Upgrade Cabin Speakers to Premium Speakers
- Relocate Cabin ICS from Aft R/H to Aft L/H
- Additional 110 VAC outlet in cabin
- Access panels, Tail Boom & Vertical Pylon, ASB 76-55-17
- Fluid Deflector Kit
Engine Specs:
ENGINES: ARRIEL 2SI
- ON TURBOMECA TOTAL ENGINE SUPPORT PROGRAM. SERIAL NUMBER
- #1: 20590
- #2: 20589
- NOTE: GEARBOXES ON SIKORSKY POWERTRAIN ASSURANCE PROGRAM.
|
|

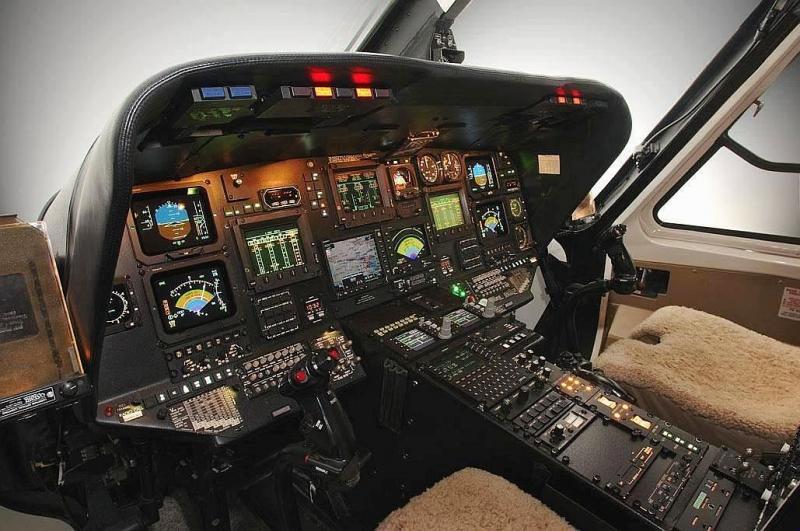

- Collins Pro Line II Avionics Package featuring: Dual Collins VHF 22A Comms and VIR 32 Navs, single ADF 462 ADF, TDR 90 Transponder, MDE 42 DME with IND 42A Indicator, 4-Tube Honeywell EDZ 756 EFIS with 5 x 6 Indicators Displaying Airspeed, Altitude and Vertical Speed, Dual Litef AHRS, Dual Penny and Giles Air Data Computers, Dual Honeywell Digital SPZ 7600 Automatic Flight control System, 3" Backup Airspeed Indicator and Altimeter, Altitude Alerter, ALT 55B Radio Altimeter with Expanded Scale ALI 55A Indicator, Dual 375 VA Static Inverters, 3" Standby Attitude Indicators, CVR 30A Provisions, Dual dB Systems Audios with ICS and VOX plus one maintenance jack in cabin and two jacks in baggage compartment, dual ICS foot switches with 45 pedestal mount, Avionics and EFIS Master Switches.
- Cabin PA/Chime System
- Passenger Briefing System PBS 250
- Electric Door Locks Cabin
- 10 KVA AC Generator
- Nose Vibration Absorber
- Windshield Washer System
- Heated Glass Windshields
- Engine Inlet Snow Protection Kit
- Garmin GMX-200 MFD With Chart View and GDL-69 XM Weather
- Artex ELT 110-406 Satellite VHF UHF ELT
- Radio Tuning Units RTU 4200
- Dual Trasnponders Mode C & Mode S. Diversity
- DME, 2nd DME 42
- Audio Jacks Emergency (std/Bose)
- Audio Jacks, Cockpit Bose
- Headset, Cabin Sennheiser Stereo (Qty 4)
- Cabin ICS w/Handset (Hanger Style)
- Cabin Call System w/Bell Ringer
- Speakers Door, Four
- Digital Airborne Telephone System MagnaStar C2000
- FD DCPL Annunciator
- Standby Attitude Indicator ADI 335D
- Nav 1/Nav 2 Switch for ADI 335D
- Nav/LRN Switch for ADI 335D
- Vertical Card Standby Compass
- FMS Universal UNS 1D+ with 803 software
- Checklist/Moving Map Data Nav V w/Cyclic Line/Page Advance
- Lightning Strike Sensor LSZ 860,
- Wx Avoidance Radar Primus 880
- Enhanced Ground Proximity Warning Sys. (EGPWS) Annunciators in I/P
- TCAS I System CAS 66A
- TCAS Control Panel CP 66B
- TCAS I TA Display, Dual TID 66A
- Cockpit Voice Recorder CVR 30A Completion w/UAB
|
|
- Captains Swivel Chairs Aft Facing
- Refreshment Center Cabinet Tall Profile
- Fwd Facing Divan Place w/Table and Armrests
- Finish, Metal Plating Polished
- Bulkhead Storage Compartment Crew (Captains Chairs)
- Magazine Rack Cabin Door, LH
- Magazine Rack Cabin Door, RH
- Cabin Coat Hooks, Two
- Cabin Cup Holder Set
- Acoustic Noise Reduction Bay Blanket Kit, Lightweight
- Sheepskin Seating Crew Seats
- Cabin Door Vents, Remove
- Lightweight Cockpit Dressing
- Boarding Step, Retractable LH
- Boarding Step, Retractable RH
- Engine Inlet Cover Storage (S-76C+)
- Maintenance Covers Exterior
- 110 VAC, 60 Hz, Cabin Outlet/Inverter, 250 VA (Qty 1)
- Remove LH Accessory Drive CSN 76-205
- C4 Environmental System
- Gooseneck Map Lights (ex.)
- Anti-Collision Light, Red Bottom Landing Light LH Main Gear
- Recognition Lights Forward Facing
- Pulse light System
- Pulse Landing Lights
- Pulse Recognition Lights
- Approach Plate Holder, Lighted Pilot
- Approach Plate Holder, Lighted Copilot
- Sun Tint Windshield
- Overhead Lateral Absorber
- Bifilar 5P
- Rotor Pedals Lube Kit
- Emergency Floatation System
- Rotor Blade Tie Down Kit
|
|

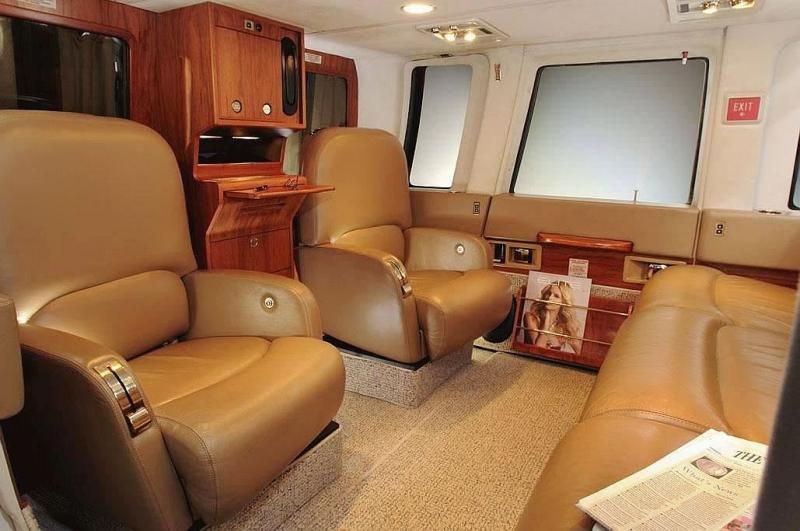

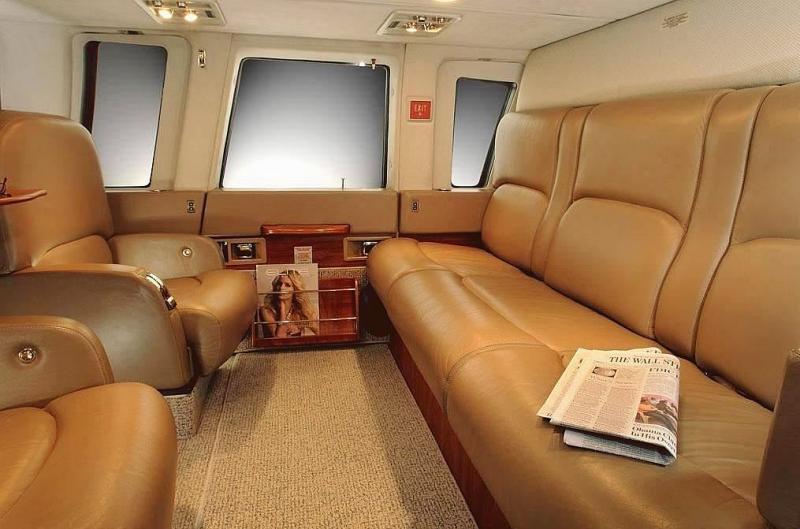

- Deluxe VIP Interior Group, featuring: Cocoon Interior Shell with Isolator Mounting, Cabin/Cockpit Divider Bulkhead, Leather Upholstery, Spare Carpet Set, Maintenance Seat Covers, Cabin Door Threshold Lighting, Membrane Switches, Cabin Decorative Plating, Bronze Inner Window Tint for all Windows, Illuminated No Smoking/Fasten Seat Belt Signs, Set of four Cabin Dome Lights with Cockpit Control, Eight Cabin Reading Lights.
|
|
- VIP Exterior paint and Finish
- Mattahorn White, Midnight Blue, with Antique Gold Stripes
|
|
- Next Annual Inspection Due December 2011
|
| |
| |
|
| |
| |
|
|
| |
|
| |
|
|
|
