Airframe:
- Airframe TSN : 215 hours
- Airframe LSN : 425
- --------------------------------------------------------------------------------
Engine Specs:
- Two Turbomeca Arriel 2S2 engines, and a four blade articulated main rotor system.
- LH S/n 42145 : TSN 215 CSN 371
- RH S/n 42150 : TSN 215 CSN 371
- --------------------------------------------------------------------------------
|
|
- Single Pilot IFR.

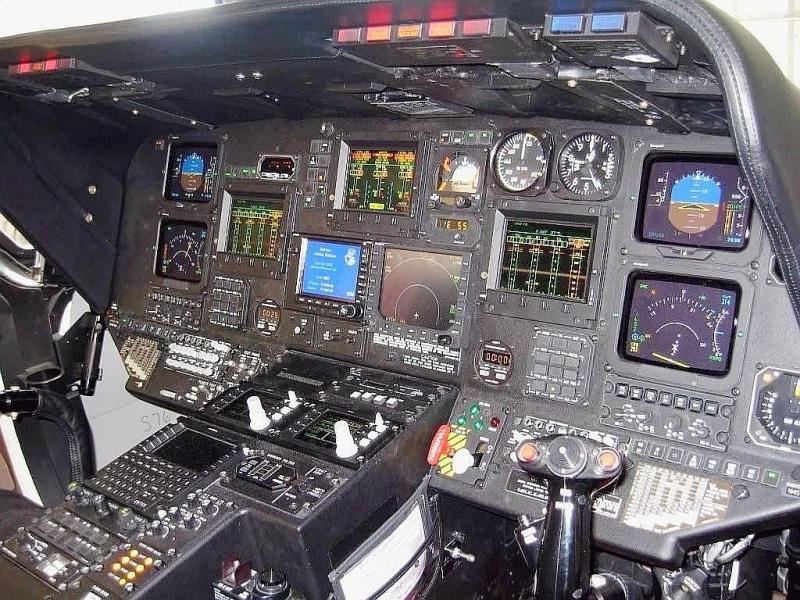

- Cockpit: An integrated Instrument Display System (IIDS) with an easy to upgrade avionics package. Bleed Air Heating Defogging System and dual windshield wipers. The Pilot and Copilot equipped with a five point Restraint system.
- • Collin Proline II: Dual Collins VHF 22A Comms and Collin VIR 32 Navs, with RTU 4200
- • Collin Single ADF 462
- • Transponder TDR 94D
- • Collin DME 42 with IND 42A indicator
- • Collins Rad ALT 1000 Radio altimeter with Expanded Scale ALI 55A indicator.
- • Honeywell EFIS/ DAFCS: 4 tube Honeywell EDZ 756 EFIS with 5”x 6” Indicator Displaying Airspeed/ and IVSI scale
- • Altitude & Vertical Speed indicator
- • Dual Litef AHRS
- • Dual Penny & Giles Air Data Computers
- • CVR/FDR Penny&Giles Multi Purpose Flight Recorder (MPFR)
- • Dual Honeywell Digital SPZ 7600 Automatic Flight Control System
- • Altitude Alert Honeywell AL 300
- • Electrical: 28 Volt Electrical System with 200 Amp Starter Generators , 10 KVA AC Generator, Dual 375 VA Static Inverters, Avionics and EFIS Master Switches.
- • Audio: Dual dB System Audio Control Panels with ICS and VOX plus three maintenance jacks. This also includes dual 45 degree pedestal mounted ICS foot switches, one six –foot walk around cord and two 30-foot walk around cords. Cabin PA/Chime System and a Passenger Briefing System – PBS 250.
- • Backup/Safety System: Enhanced Ground Proximity Warning System (EGPWS Mark XXII),
- • ADI – 335D Standby Attitude Indicator with Nav 1 / Nav 2 Select.
- • ELT C406 – N HM w/satellite frequency.
- • Electric Door Locks – Cabin.
- • Cabin/ Cockpit and Flight Director Decouple Warning System with visual and aural warnings.
- • Honeywell Weather Related System: Wx Avoidance Radar – Primus 880, Windshield Washer System, Heated Glass Windshields, and Engine Inlet Barrier Filters.
- • Garmin GPS – 500W
- Additional Avionics Items:
- • Dual Mode S Transponders w/ Diversity TDR 94D
- • DME 2nd , DME 42
- • Audio Jacks – Emergency (Bose), Audio Jacks, Cockpit & Cabin (Bose)
- • Cabin ICS with handset
- • Nav / LRN Switch for ADI 335D
- • Vertical Card Standby Compass
- • FMS – Universal UNS 1F w/Go Around Switch wired to the Collective
- • Lightning Strike Sensor – LSZ 860 w/LU 860
- • Wx Avoidance Radar – Primus 880
- • Multi-Function / Moving Map Display, Garmin GMX 200
- • Chart View Option for the Garmin GMX 200
- • Honeywell Multi Function Radar Display (MFRD) Display Radar, Flight Plan, & Checklists
- • Traffic Advisory System, Sky Watch HP L-3 Sky 899
- --------------------------------------------------------------------------------
|
|
- Boarding Step, Retractable – LH , Retractable – RH, Boarding lights, Engine Inlet Cover Storage, Maintenance Covers – Exterior, Vertical Pylon Access Panels, CSN 76-207, Annunciator – “FUEL X-FEED” ON, Hydraulic Quick Disconnect Relocation, Remove LH Accessory Drive – CSN 76-205, Pulsed Electric Engine Chip Detector System, Eaton 1K7707, Snow Kit, C4 Environmental System, Annunciator – “Land LT ON”, Annunciator – “Search LT ON”, Gooseneck Map Lights, Anti Collision Light, Red-Bottom, Landing Light – LH Main Gear, Recognition Lights – Forward Facing, Logo Lights, Pulse Light System, Pulse Landing Lights, Pulse Recognition Lights, Approach Plate Holder , Lighted – Pilot, Approach Plate Holder, Lighted – Copilot, Pencil Holder, Sun Tint – Windshield, Overhead Lateral Absorber, Bifilar 5P, Track and Balance Accelerometers Installed in Fuel Cell Extension, Rotor Pedals Lube Kit, Fluid Deflector, Annunciator – “Pilot Heat” On, Annunciator – “W/S Heat On”, Provision for Floatation gear, Co-Pilot Tail Rotor Pedal Quick Disconnect Kit, Collin Airshow 4000, 15” Airshow LCD monitor, IPOD cradle video, audio, power interface with cable connection.
- --------------------------------------------------------------------------------
|
|

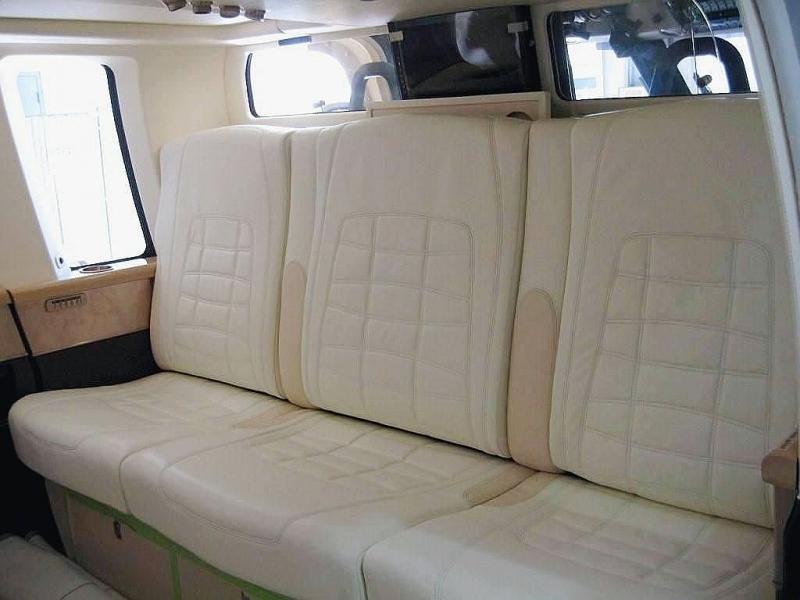

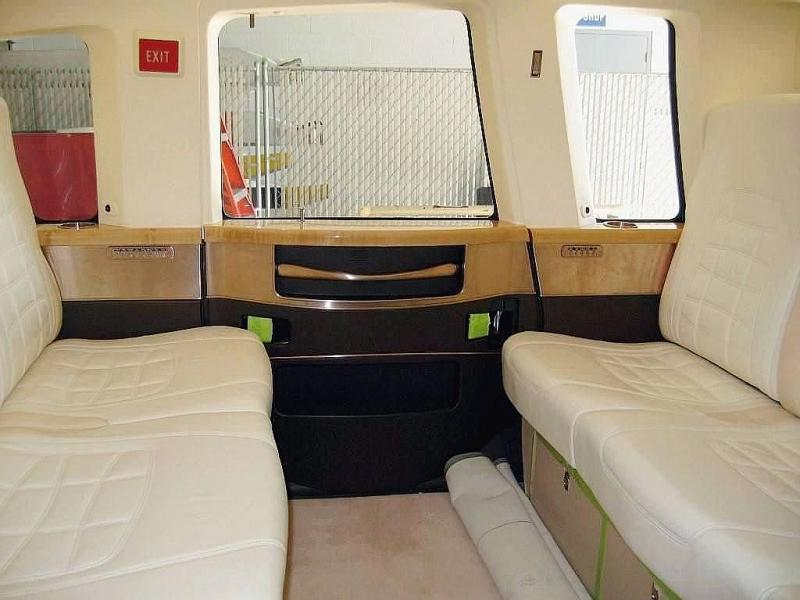

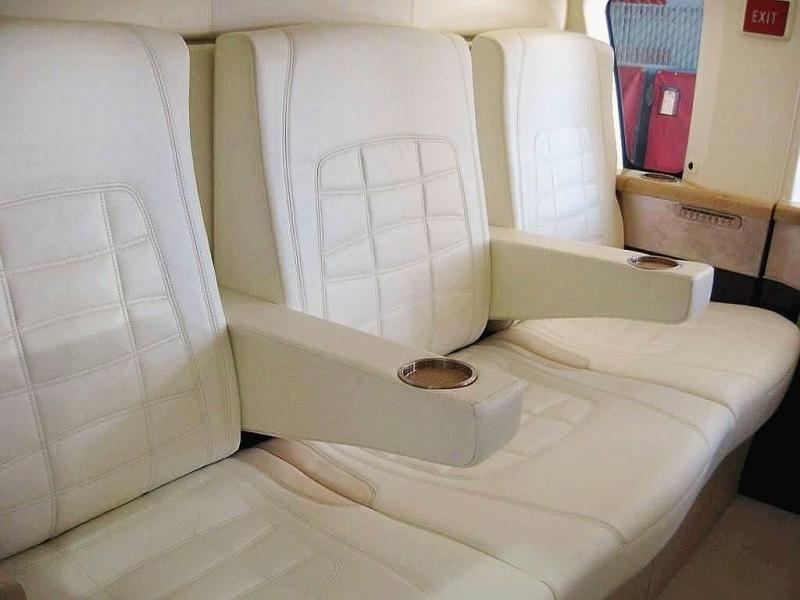

- • The aircraft has a Pininfarina interior (VIP), featuring Silencer airframe isolated interior wall panel system, ECS ducting, Acoustic Noise Reduction – Bay Blanket Kit, Lightweight, Aft Facing Bench – three/four passenger w/ Outboard Arm rests, Fwd Facing Bench –three/four place w/ fold down Armrests, fold down table and under seat storage drawers,. Bulkhead Storage Compartment – Crew ( Aft Facing Bench ), Silencer premium interior, custom switch panels, speakers.
- --------------------------------------------------------------------------------
|
|
- VIP Interior Paint Prep & Finish / VIP Exterior Paint Prep & Finish
- --------------------------------------------------------------------------------
|
|
- Publications / Subscriptions:
- Pilot’s Flight Operating Manual, Maintenance Manual, Illustrated Parts Catalog, Wiring Manual, Engine Operating & Maintenance Manual, Engine Illustrated Parts Breakdown, HELOTRAC RL ( Web based maintenance tracking & scheduling system) with all revisions.
|
| |
| |
|
| |
| |
|
|
| |
|
| |
|
|
|
