1983 BEECHCRAFT KING AIR B200
Reg # N61PE
$2,495,000
Summary
Impeccable 1983 King Air B200. Loaded with G1000 Avionics Suite, -61 Blackhawk Engines, 5 Bladed MT Props, BLR Winglets, Full Raisbeck w/Lockers, CAMP Current.
Airframe:
Total Time: 10,428
Total Landings: 11,335
Engines:
Engine 1:
Blackhawk XP61 PWC PT6A-61
LH Engine s/n PCE-HA0031
3046.7 Total Time Since New
2455 Total Cycles Since New
Engine 2:
Blackhawk XP61 PWC PT6A-61
RH Engine s/n PCE-HA0032
3046.7 Total Time Since New
2455 Total Cycles Since New
Props:
MT 5 Blade MTV-27-1-E-C-F-R(P)
Installed 21st Oct 2021
509 Hours Since New
LH Prop s/n 201622
RH Prop s/n 200208
Airframe:
Total Time: 10,428
Total Landings: 11,335
Engines:
Engine 1:
Blackhawk XP61 PWC PT6A-61
LH Engine s/n PCE-HA0031
3046.7 Total Time Since New
2455 Total Cycles Since New
Engine 2:
Blackhawk XP61 PWC PT6A-61
RH Engine s/n PCE-HA0032
3046.7 Total Time Since New
2455 Total Cycles Since New
Props:
MT 5 Blade MTV-27-1-E-C-F-R(P)
Installed 21st Oct 2021
509 Hours Since New
LH Prop s/n 201622
RH Prop s/n 200208

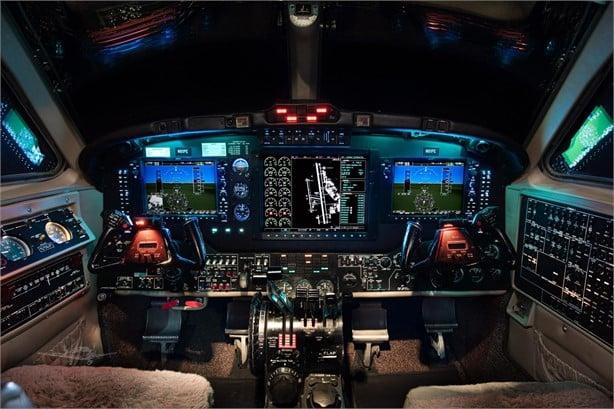

Avionics
Garmin 1000 With Synthetic Vision, Chartview and ADS-B Out
•Autopilot: Garmin GFC-700 AFCS
•Primary Flight Display: Dual Garmin GDU-1040A
•Multi-Function Display: Garmin GDU1500
•GPS: Dual Garmin GIA-63W
•Radar: Garmin GWX-68
•TCAS: BFG SkywatchSKY-497
•TAWS: Garmin Class B
•Weather Datalink: Garmin GDL-69A XM Datalink
•Comms/Navs: Dual Garmin GIA-63W
•Transponders: Dual Garmin GTX-33
•Compass System: Dual Garmin GRS-77 AHRS
•Audio: Dual Garmin GMA-1347D Audio Panels
•Air Data Computer: Dual Garmin GDC-74B
•ELT: Artex ME-406
•Emergency Power: PS-835C Standby Battery
•Standby Instruments: Garmin Altimeter and Airspeed Indicator
•Autopilot: Garmin GFC-700 AFCS
•Primary Flight Display: Dual Garmin GDU-1040A
•Multi-Function Display: Garmin GDU1500
•GPS: Dual Garmin GIA-63W
•Radar: Garmin GWX-68
•TCAS: BFG SkywatchSKY-497
•TAWS: Garmin Class B
•Weather Datalink: Garmin GDL-69A XM Datalink
•Comms/Navs: Dual Garmin GIA-63W
•Transponders: Dual Garmin GTX-33
•Compass System: Dual Garmin GRS-77 AHRS
•Audio: Dual Garmin GMA-1347D Audio Panels
•Air Data Computer: Dual Garmin GDC-74B
•ELT: Artex ME-406
•Emergency Power: PS-835C Standby Battery
•Standby Instruments: Garmin Altimeter and Airspeed Indicator

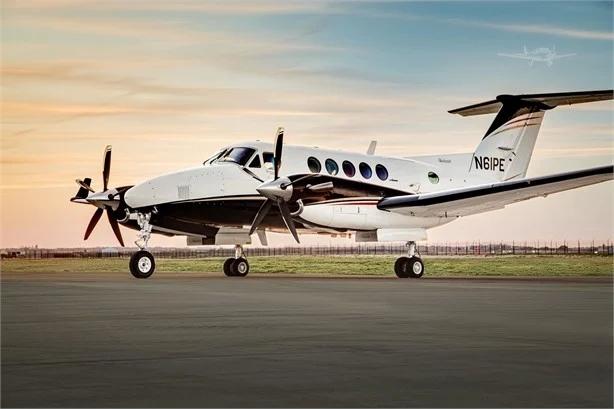

Exterior
Overall Matterhorn White with Black Velvet Metallic, Harvest Gold Metallic and Ruby Metallic Accent Stripes. New in March 2016 by Aerosmith Aviation, Longview, Texas.

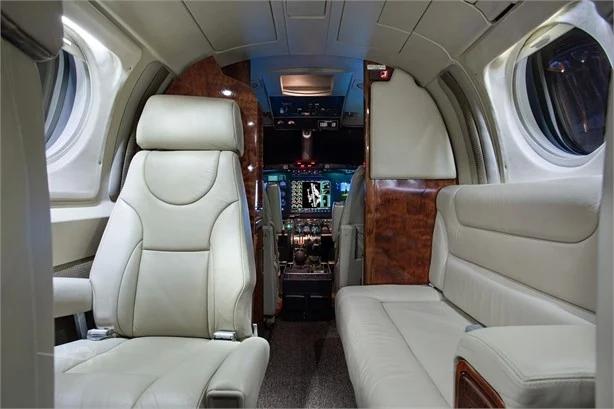

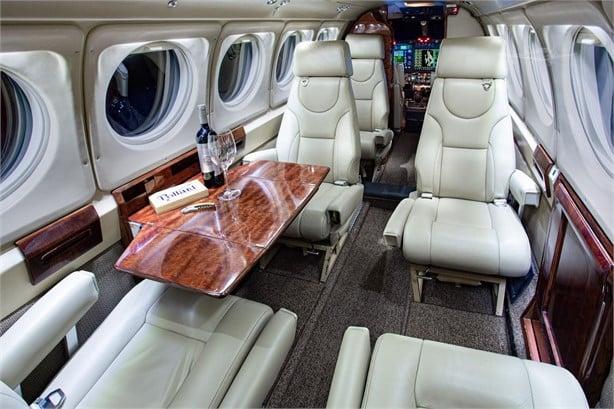

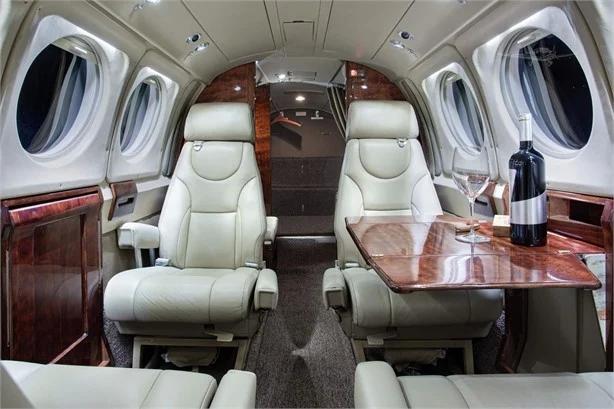

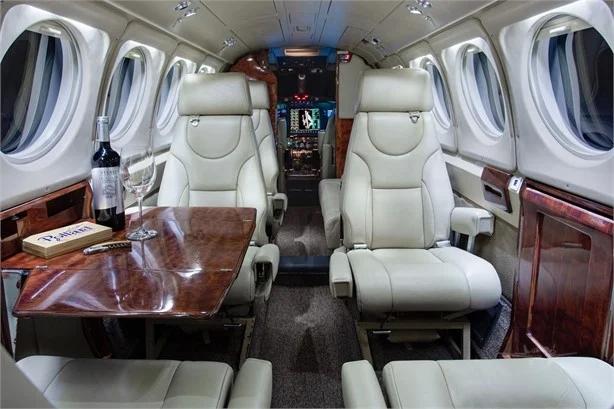

Interior
Pilot and Copilot three compartment chart cases, Forward and aft partitions with doors. Forward LS Pyramid cabinet with heated liquid dispenser, ice chest drawer, and two storage drawers. Forward LS aft-facing seat and RS two place belted couch with under-seat storage drawers. Center cabin RS narrow pyramid cabinet. Aft club seating with two aft facing chairs forward and two forward facing lateral tracking chairs. Dual executive tables with over-table reading lights. Aft LS/RS pyramid cabinets. Aft aisle facing belted flushing potty seat. Aft baggage half partition. Aft air blower. Cockpit relief tube. Cockpit and cabin fire extinguishers. Berkshire steel blue leather upholstery and upper sidewalls. Leather Seashell headliner and window panel surrounds, Curbell Plastics White Kydex middle sidewall, Blue/Gray wool carpet (new in 3/2018). Sheepskin inserts crew seats. Mahogany Gloss Laminate cabinetry. New in August 2008 by Ohio Valley Aviation, Wheeling, West Virginia.
Additional Equipment
BLR Winglets
Full Raisbeck Performance Package
Ram Air Recovery System
Enhanced Performance Leading Edges
Aft Body Strakes
MT 5-Blade Whisper Props (installed 21 October 2021)
Nacelle Wing Lockers
RVSM Approved
Blackhawk Powerplant Gauges
Frakes Exhaust Stacks
R134A Freon Cooling System
Concorde RG-380E/60K Lead Acid Battery
Engine Fire Detection and Extinguishing
Dual Door Support Cables
Butterfield Flow-Through Anti-Ice Kit
Ice Damage Protection Plates
76 Cubic Foot Oxygen System
Provisions for Aft Folding Jump Seats (Seats Not Included)
Eleven Position Puritan Bennett Auto Deploy O2 Masks
AvFab Roll-Up Window Shades
Four Place Cabin Intercom System
Dynamic Acoustic Noise Suppression System
Cabin LED Downwash Lighting System
Aft Air
Prop Sync
Dual Control Wheel Clocks
Dual Flitetronic PC-17 Inverters
Flight Hour Meter
Lights: Landing, Taxi, Grimes Rotating Beacon, Wingtip position/Strobe/Recognition, Dual
Ice, Rotating Beacon, Tail Position/Strobe
Full Raisbeck Performance Package
Ram Air Recovery System
Enhanced Performance Leading Edges
Aft Body Strakes
MT 5-Blade Whisper Props (installed 21 October 2021)
Nacelle Wing Lockers
RVSM Approved
Blackhawk Powerplant Gauges
Frakes Exhaust Stacks
R134A Freon Cooling System
Concorde RG-380E/60K Lead Acid Battery
Engine Fire Detection and Extinguishing
Dual Door Support Cables
Butterfield Flow-Through Anti-Ice Kit
Ice Damage Protection Plates
76 Cubic Foot Oxygen System
Provisions for Aft Folding Jump Seats (Seats Not Included)
Eleven Position Puritan Bennett Auto Deploy O2 Masks
AvFab Roll-Up Window Shades
Four Place Cabin Intercom System
Dynamic Acoustic Noise Suppression System
Cabin LED Downwash Lighting System
Aft Air
Prop Sync
Dual Control Wheel Clocks
Dual Flitetronic PC-17 Inverters
Flight Hour Meter
Lights: Landing, Taxi, Grimes Rotating Beacon, Wingtip position/Strobe/Recognition, Dual
Ice, Rotating Beacon, Tail Position/Strobe
Remarks
CAMP Current
Modifications / Conversions
BLR Winglets
Full Raisbeck Performance Package
Ram Air Recovery System
Enhanced Performance Leading Edges
Aft Body Strakes
MT 5-Blade Whisper Props (installed 21 October 2021)
Nacelle Wing Lockers
RVSM Approved
Blackhawk Powerplant Gauges
Frakes Exhaust Stacks
R134A Freon Cooling System
Concorde RG-380E/60K Lead Acid Battery
Engine Fire Detection and Extinguishing
Dual Door Support Cables
Butterfield Flow-Through Anti-Ice Kit
Ice Damage Protection Plates
76 Cubic Foot Oxygen System
Provisions for Aft Folding Jump Seats (Seats Not Included)
Eleven Position Puritan Bennett Auto Deploy O2 Masks
AvFab Roll-Up Window Shades
Four Place Cabin Intercom System
Dynamic Acoustic Noise Suppression System
Cabin LED Downwash Lighting System
Aft Air
Prop Sync
Dual Control Wheel Clocks
Dual Flitetronic PC-17 Inverters
Flight Hour Meter
Lights: Landing, Taxi, Grimes Rotating Beacon, Wingtip position/Strobe/Recognition, Dual
Ice, Rotating Beacon, Tail Position/Strobe
Full Raisbeck Performance Package
Ram Air Recovery System
Enhanced Performance Leading Edges
Aft Body Strakes
MT 5-Blade Whisper Props (installed 21 October 2021)
Nacelle Wing Lockers
RVSM Approved
Blackhawk Powerplant Gauges
Frakes Exhaust Stacks
R134A Freon Cooling System
Concorde RG-380E/60K Lead Acid Battery
Engine Fire Detection and Extinguishing
Dual Door Support Cables
Butterfield Flow-Through Anti-Ice Kit
Ice Damage Protection Plates
76 Cubic Foot Oxygen System
Provisions for Aft Folding Jump Seats (Seats Not Included)
Eleven Position Puritan Bennett Auto Deploy O2 Masks
AvFab Roll-Up Window Shades
Four Place Cabin Intercom System
Dynamic Acoustic Noise Suppression System
Cabin LED Downwash Lighting System
Aft Air
Prop Sync
Dual Control Wheel Clocks
Dual Flitetronic PC-17 Inverters
Flight Hour Meter
Lights: Landing, Taxi, Grimes Rotating Beacon, Wingtip position/Strobe/Recognition, Dual
Ice, Rotating Beacon, Tail Position/Strobe
