AIRFRAME:

4,150 hours Total Time Since New

ENGINE:
100 hours Since Factory Reman

Most Recent Compressions June 2025:
79/80, 78/80, 79/80, 78/80, 79/80,79/80.

Make: Continental / Model: TSIO-520-P6B / Serial #: 1046282

PROPELLER:
100 Hours Since Factory New

Make: Hartzell / Model: HC-13YR-1RF / Serial #: 123

MODS:
O & N Aircraft Modifications STC'd 29.4 Gallon Aft Aux Fuel Tank  (STC # SA532NE)
118.4-Gallon Fuel Capacity  (5 hours plus reserve)

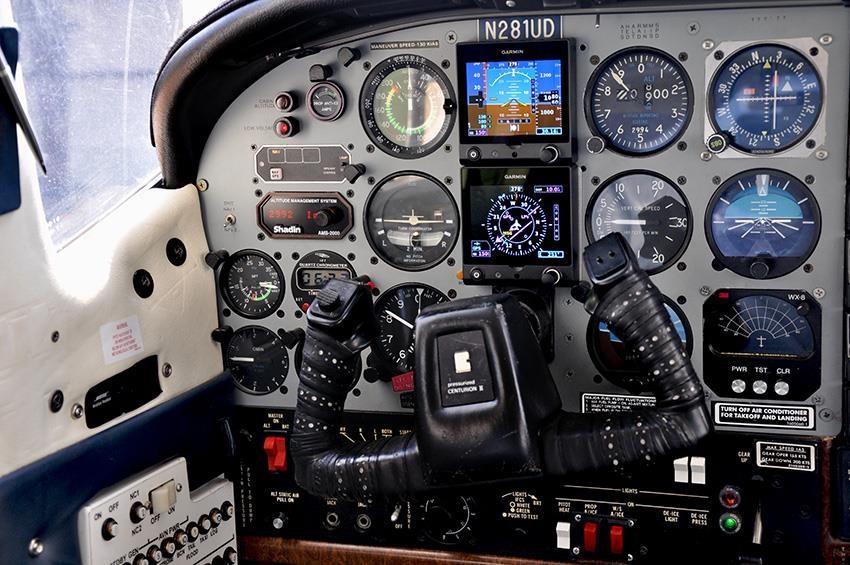

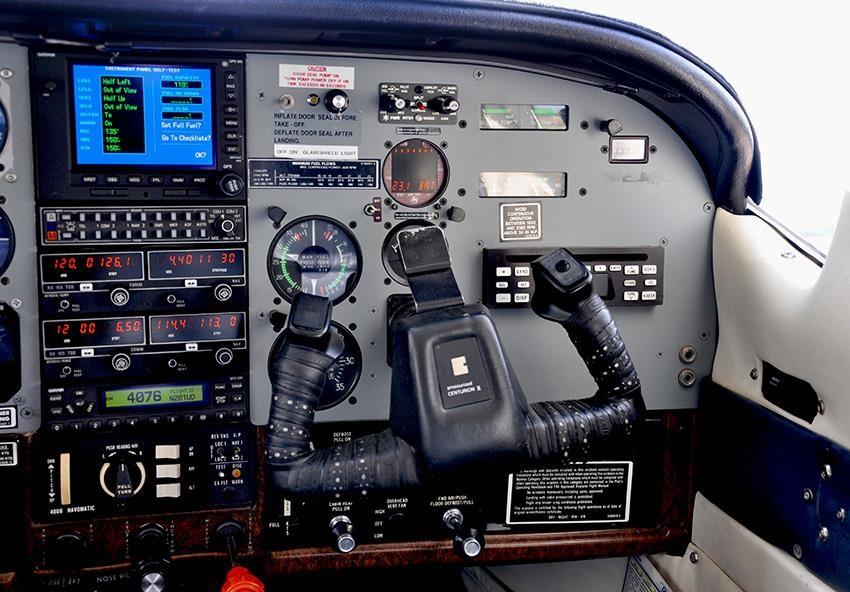

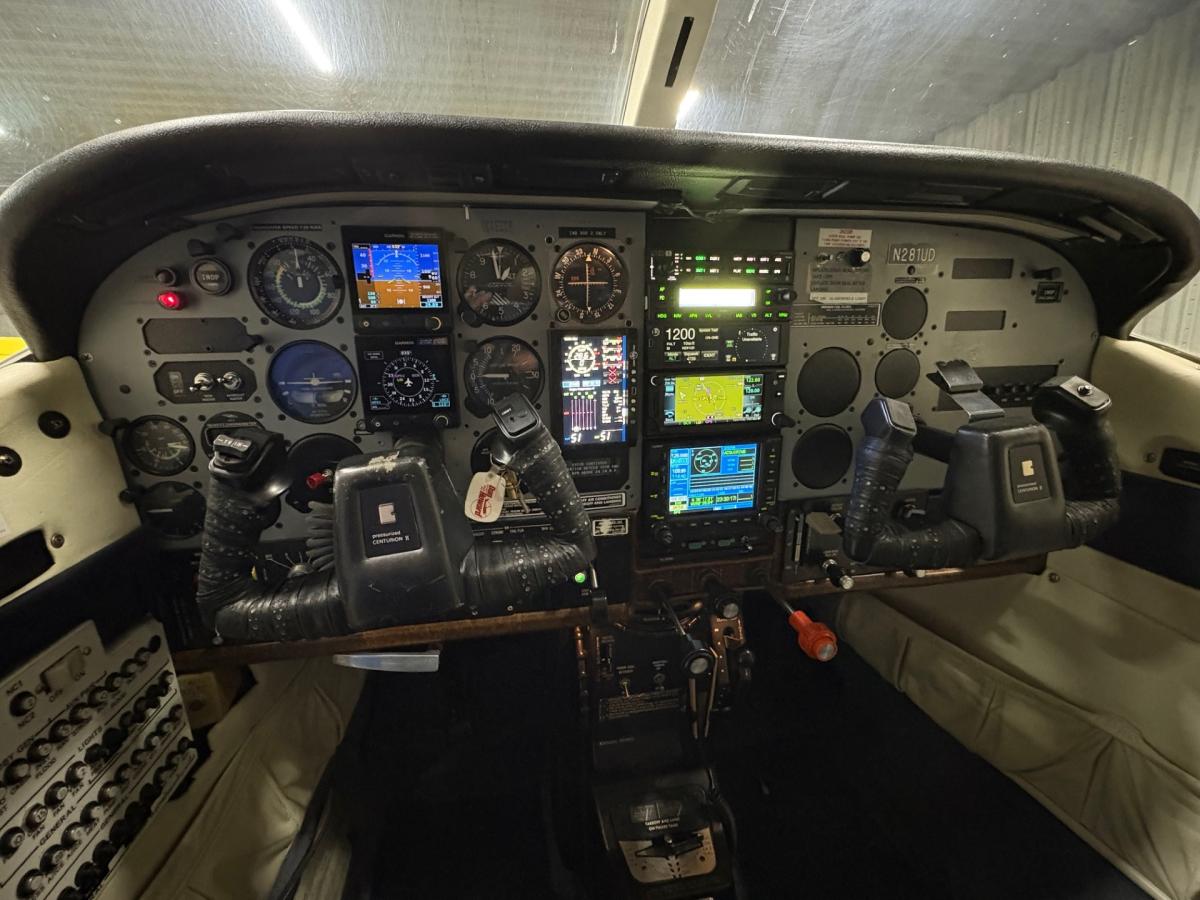

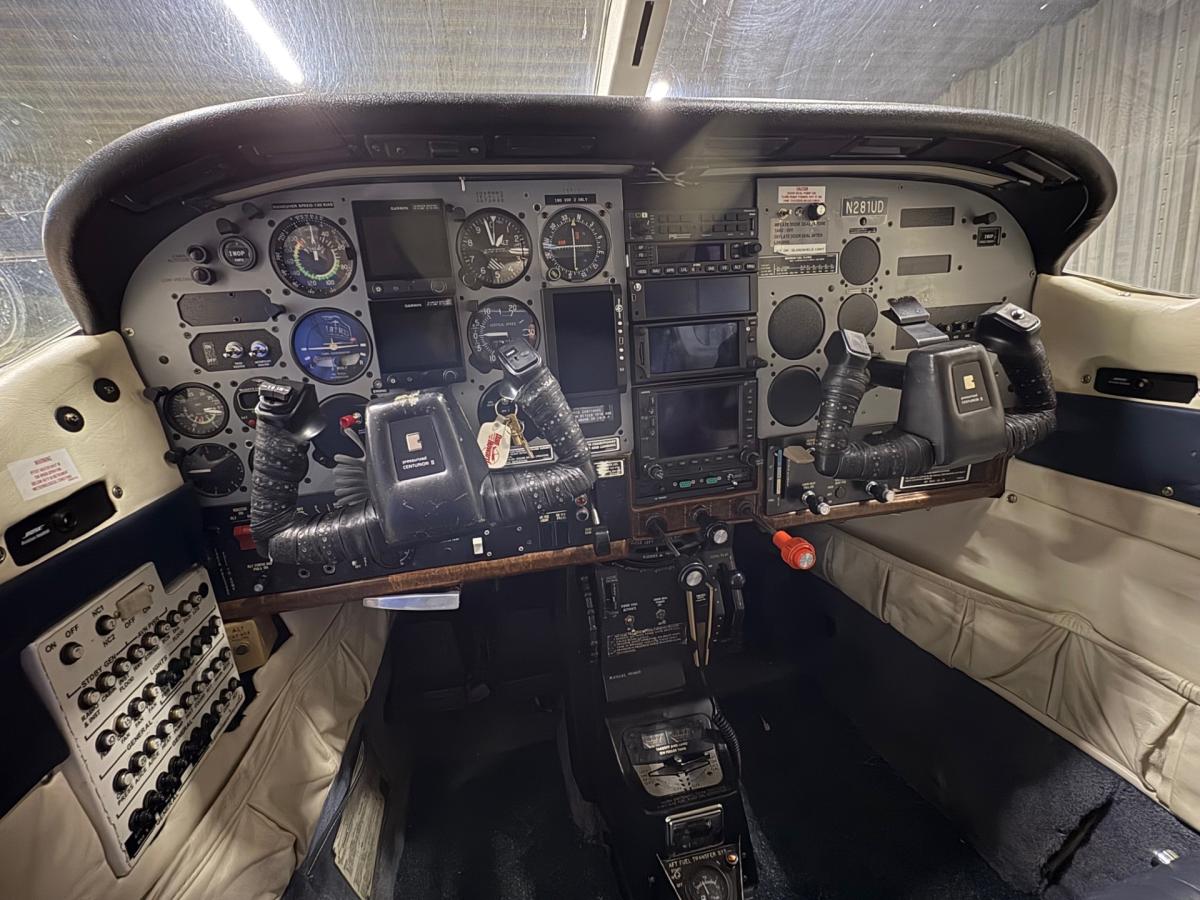

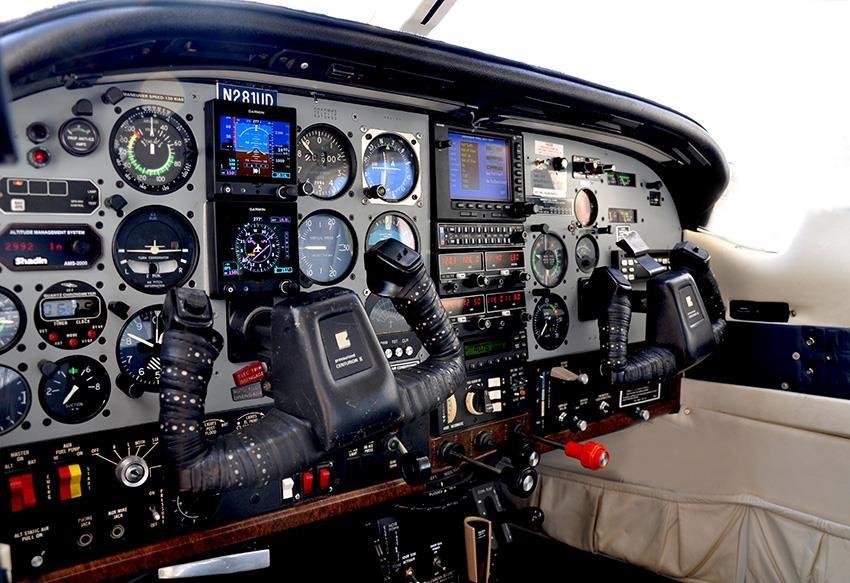

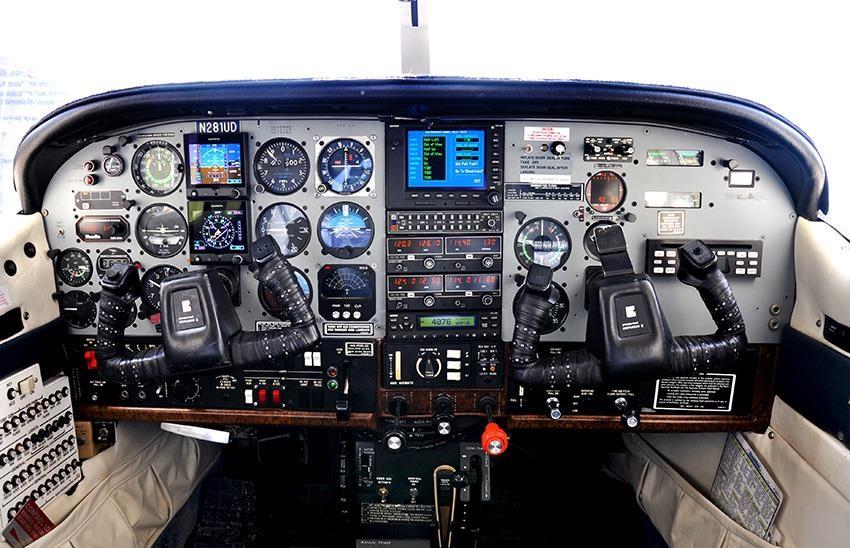

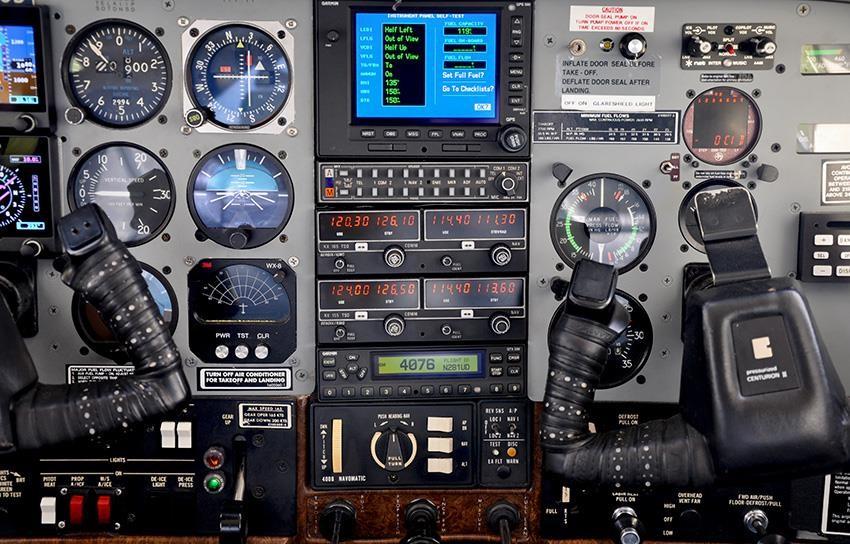

AVIONICS:
PMA8000G Audio Panel
Garmin GTN650 GPS/NAV/COM
Garmin GNS-530W IFR-WAAS-Certified GPS-Com w/ VOR, LOC, Glideslope, Terrain Avoidance & Large Color Moving Map (coupled to Garmin G5 EFIS HSI)
Garmin G5 EFIS HSI
Garmin G5 EFIS Artificial Horizon
King KX-155 TSO Digital Nav/Com w/ VOR, LOC, & 2nd Glideslope (KI-209)
Garmin GDL-69 XM Weather Data Link Receiver
3M WX-8 Stormscope
L-3 Harris NGT-9000D+ Transponder ADS-B In/Out
Genesys S-TEC 3100 Autopilot
JPI EDM-900 Primary Engine Monitor w/ Fuel Flow

ADDITIONAL EQUIPMENT:
Factory Air-Conditioning w/ recent $5,000 overhaul!
Custom Metal Instrument Panel w/ Instrument Post Lights & Glareshield Flood Lighting
Garmin G5 EFIS Artificial Horizon and EFIS HSI installed under STC # SA01818WI  (New in 2018!)
O & N Aircraft Modifications STC'd 29.4 Gallon Aft Aux Fuel Tank  (STC # SA532NE)
118.4-Gallon Fuel Capacity  (5 hours plus reserve)
Mid-Continent MD41-828 GPS/NAV Annunciator Relay Panel
Dual Backup Artificial Horizons (Vacuum & Electric)
Aero-Safe 'Guardian' Electric Standby Vacuum System  (STC # SA4626SW)
JPI EDM-700 Digital Engine Analyzer w/ CHT's, EGT's, T.I.T., & Voltage (STC # 2586NM)
JPI EGT-701 Fuel Flow Indicating System (interfaced to the JPI-700 Engine Analyzer) (STC # SA00432SE)
Bose Headsets Interfaces at Four Seating Stations
Monarch 'Umbrella style' Raised Fuel Caps
Rosen Articulating Tinted Sunvisors
Battery system hardwired for Battery Tender/Charger
Aircraft Innovations FAA-approved AM/FM Stereo/CD Player
Shadin Digital AMS-2000 Altitude Management System
NAT AA83-001 Voice-Activated Passenger Intercom System with Isolation Modes & Music Input Jack
Bob Fields STC'd Inflatable Cabin Door Seals
Wilco, Inc. 'Wing Mounted Convex Mirrors' (main & nose ldg gear position inspection mirrors) (STC # SA2749CE)
Tanis TAS-100 Electric Engine Preheater System
Powder-Coated Engine Baffling
Engine Oil Filter
Polished Prop Spinner
Auxiliary Power Receptacle
Cessna late-model Non-Foam Filled Elevator Trim Tab & Elevator Trailing Edges
Teflon Oil & Fuel Hoses
Wingtip Strobe Lights
Wingtip-mounted Fiber-optic Nav Light 'On' Indicators
Articulating & Vertically Adjusting Pilot & Co-Pilot Seats w/ Headrests, Removable Armrests, & Shoulder Harnesses

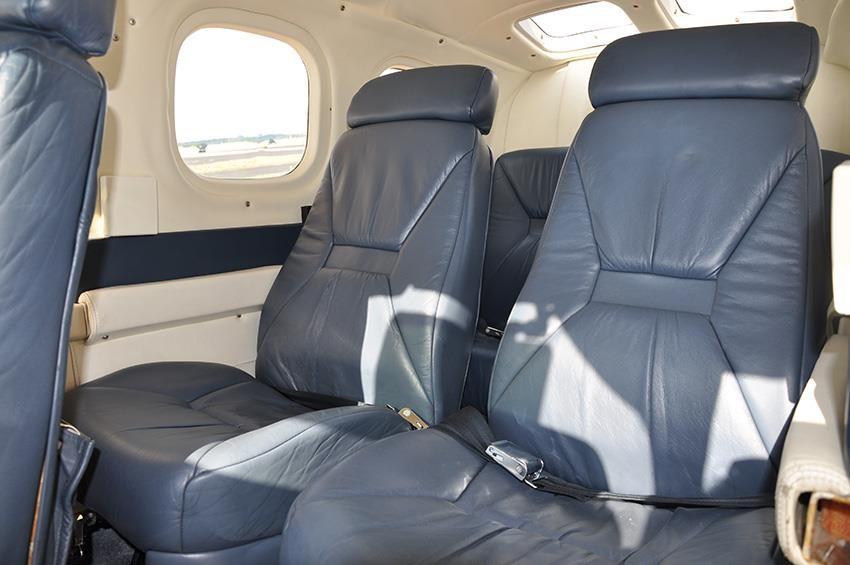

Articulating Middle Row Seats w/ Headrests

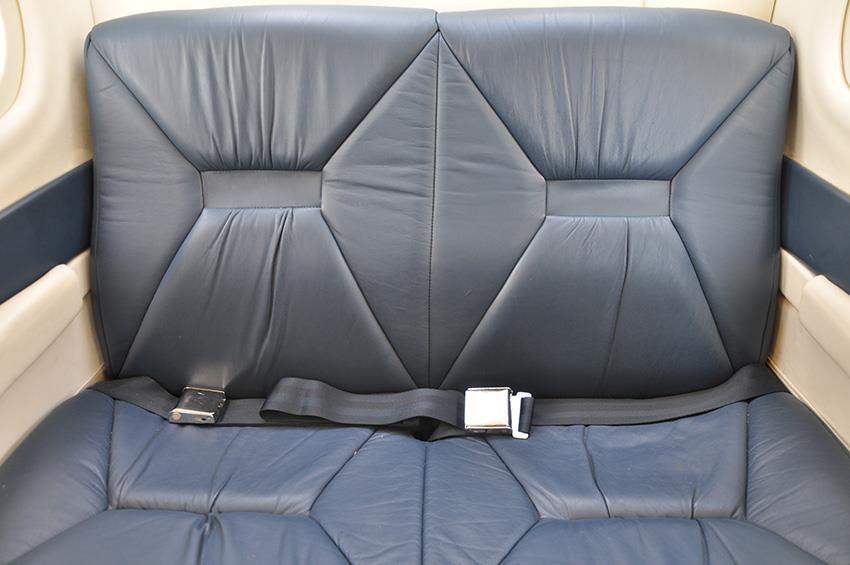

Rear Bench Seat with Overhead Skylights
Overhead Air-Conditioning Vents
Rear Passenger Reading Lights
Cabin Dome Light
Avionics Master Switch
'Cabin Altitude' Warning Light
'Low Voltage' Warning Light
Horizontal Stabilizer Abrasion Boots
Main Wheel Hubcaps
Kennon Reflective Window Sun Shields
Electric Pitch Trim
Rudder Trim
Pilot & Co-Pilot 'Push-to-Talk' Switches
Pilot's Yoke-mounted 'Transponder Ident' Switch
Pilot's Yoke-mounted 'Elec Trim Disengage' and 'Autopilot Interrupt' Switches
Prop Anti-Ice Amperage Gauge
Astro-Tech LC-2 Quartz Chronometer
Alcor EGT Gauge
Vertical Card Compass
Hobbs Meter
Outside Air Temp Gauge
New Main Gear Tires in May 2017
Kannad 406 AF Compact Emergency Locator Beacon mounted in aft tail area at Station 159.4
New 406Hz ELT Battery in May 2017, next due for replacement in November 2023.
NEW Right side of Engine Exhaust system (P/N 2154000-53) and NEW Forward V-Clamp in April 2016
New Nose Gear Tire, Tube, Bearings & Races in April 2016
NEW Right side Engine Exhaust Collector (P/N 215-4000-55AWL) in April 2013
NEW Pilot Seat Rails and Inboard Co-Pilot Seat Rail in March 2012
New Engine Lord Mounts, Engine Oil Lines, and Engine Tailpipe in May 2011
Landing Gear Hydraulic Power Pack inspected and recertified by Aero Electric, Inc. in Sept 2006
Concorde Sealed Main Battery
Useful Load = 1,379 lbs.

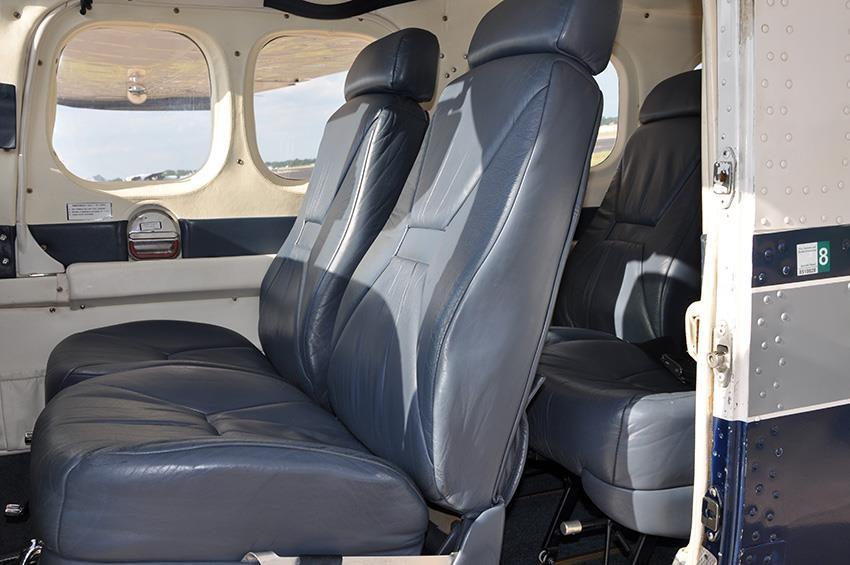

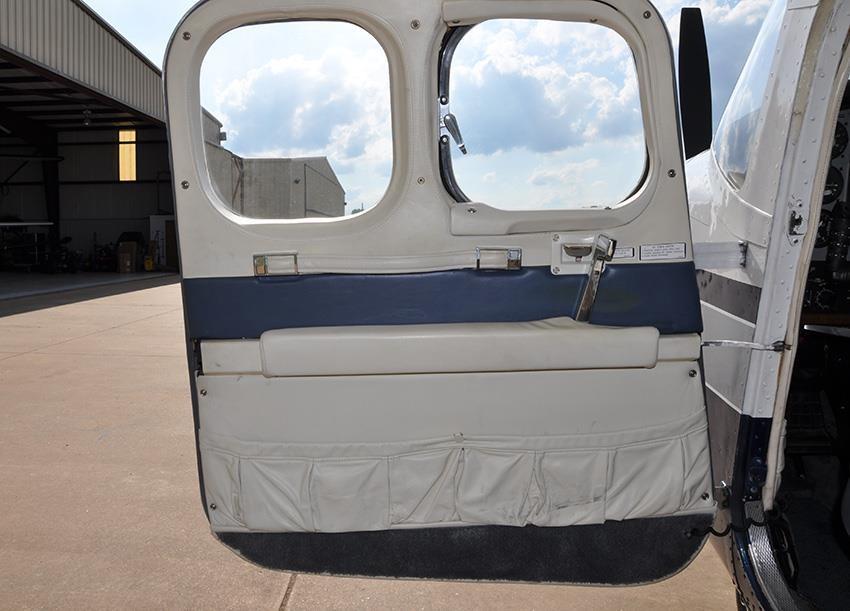

INTERIOR:
New interior with Douglas Interior products in Air Enterprises (9/1998):
Skandia, Inc. C-3002-25 ALPSA 'Super Soundproofing' materials.
Douglas 'Regal Blue' Leather seat upholstery w/ matching Dark Blue carpeting.
Off-white Sidepanels w/ matching Regal Blue Leather Inserts.
Off-White Trim & Headliner.
Beltmaker's Inc. model # S-1746 seatbelts.
Rated: 7+ to 8.

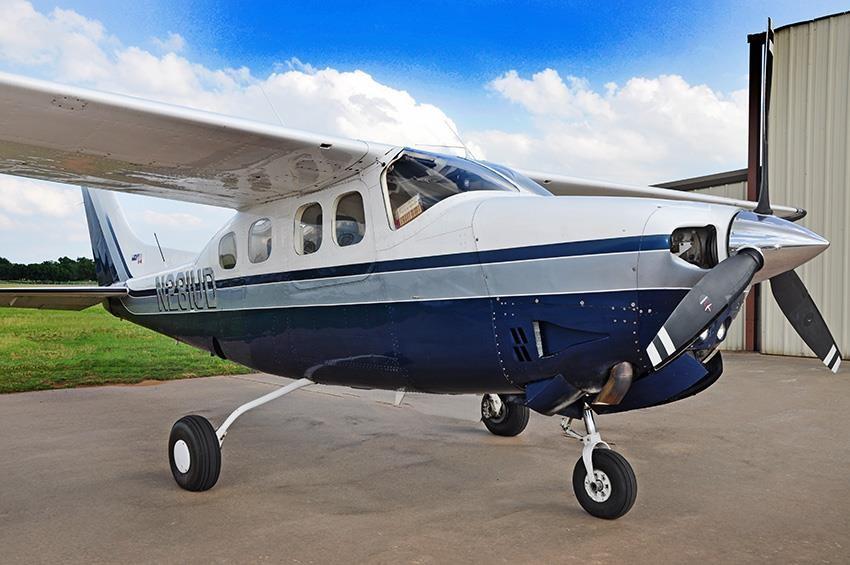

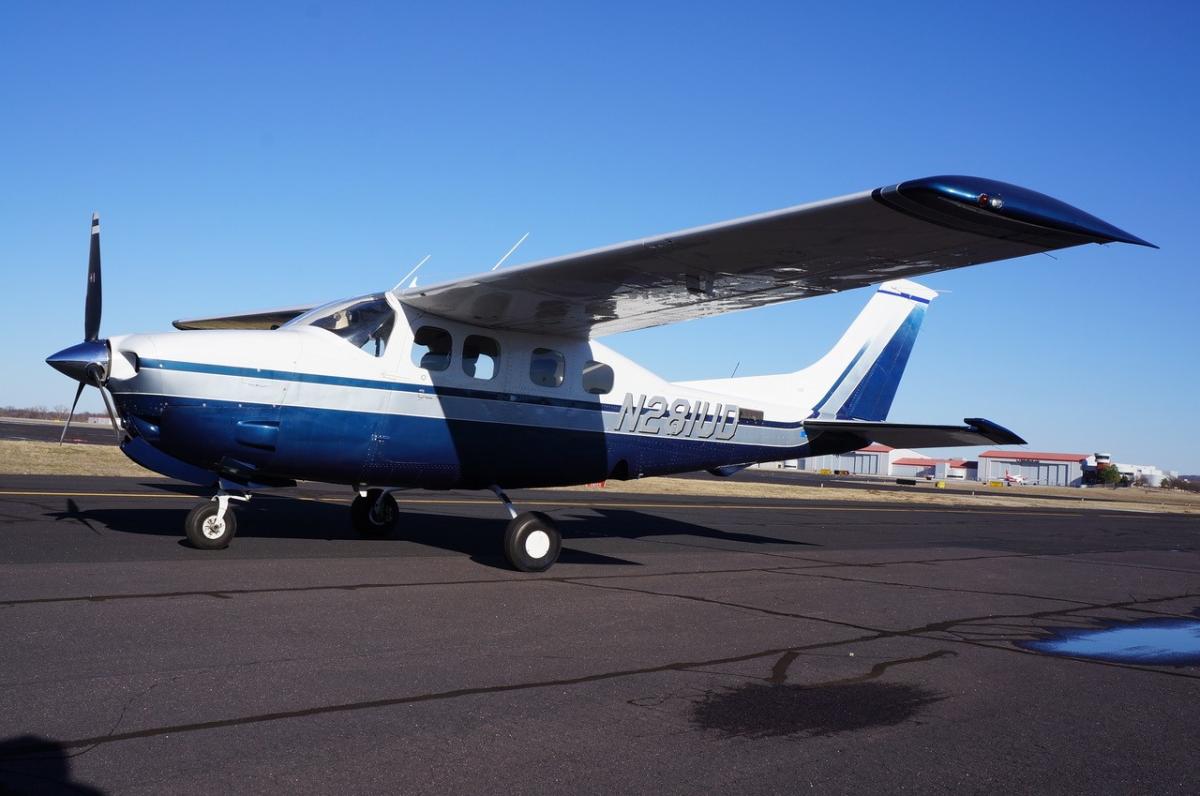

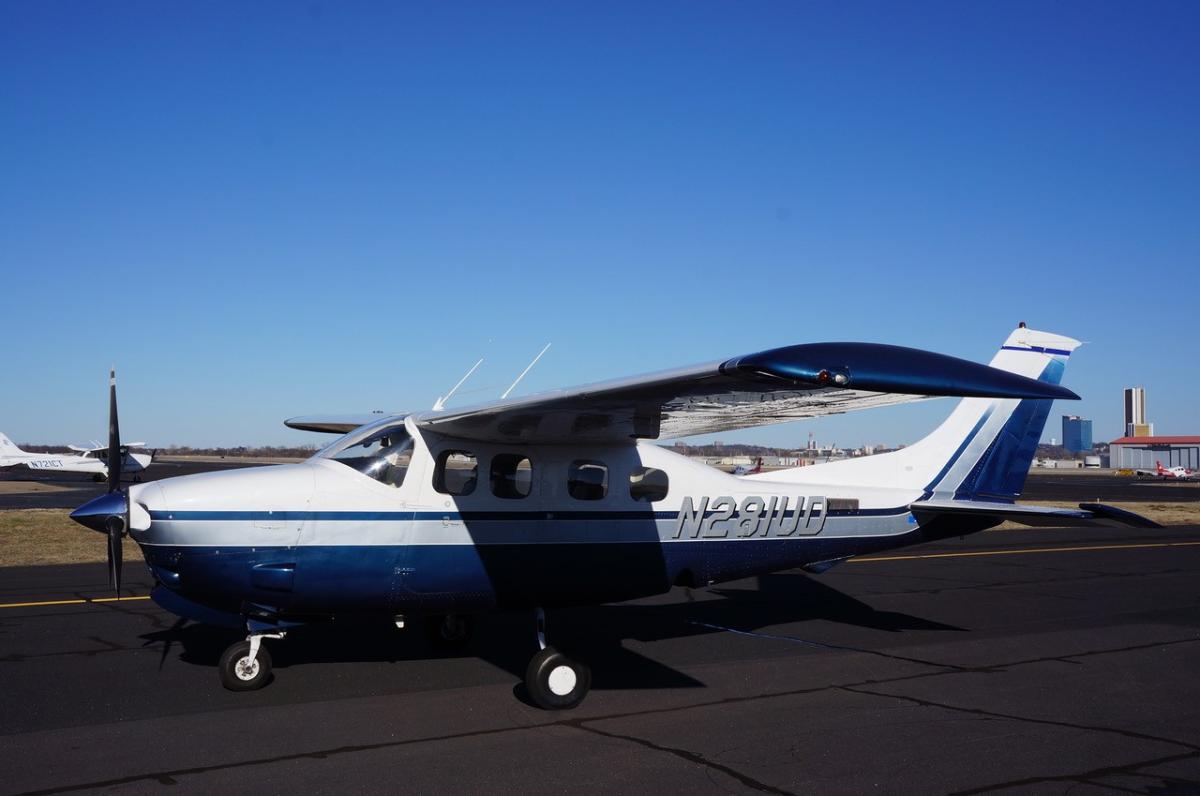

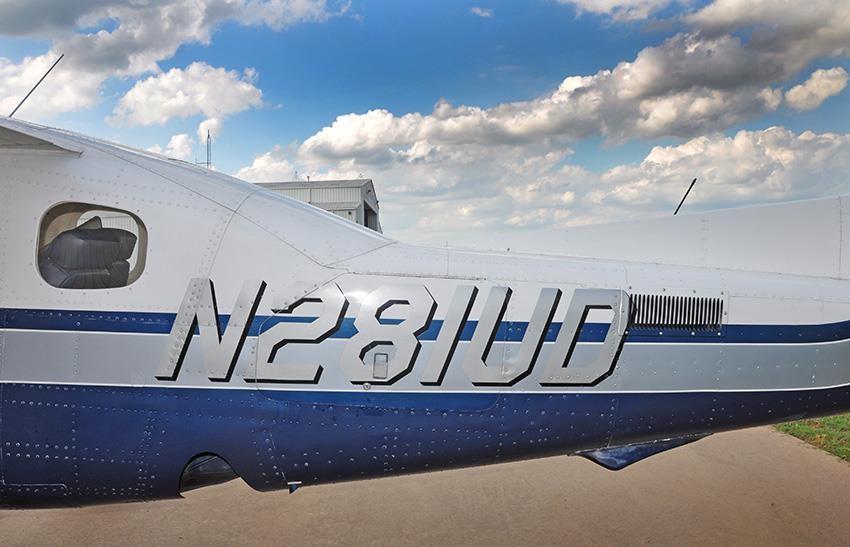

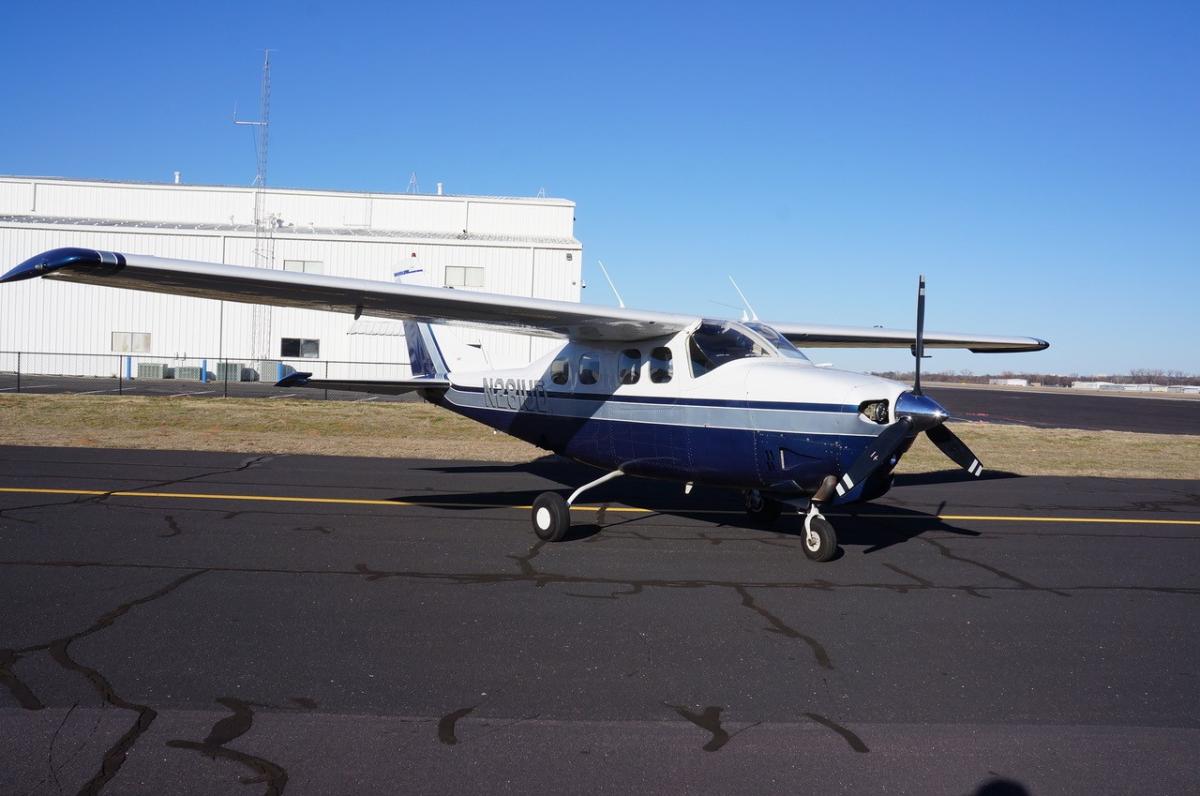

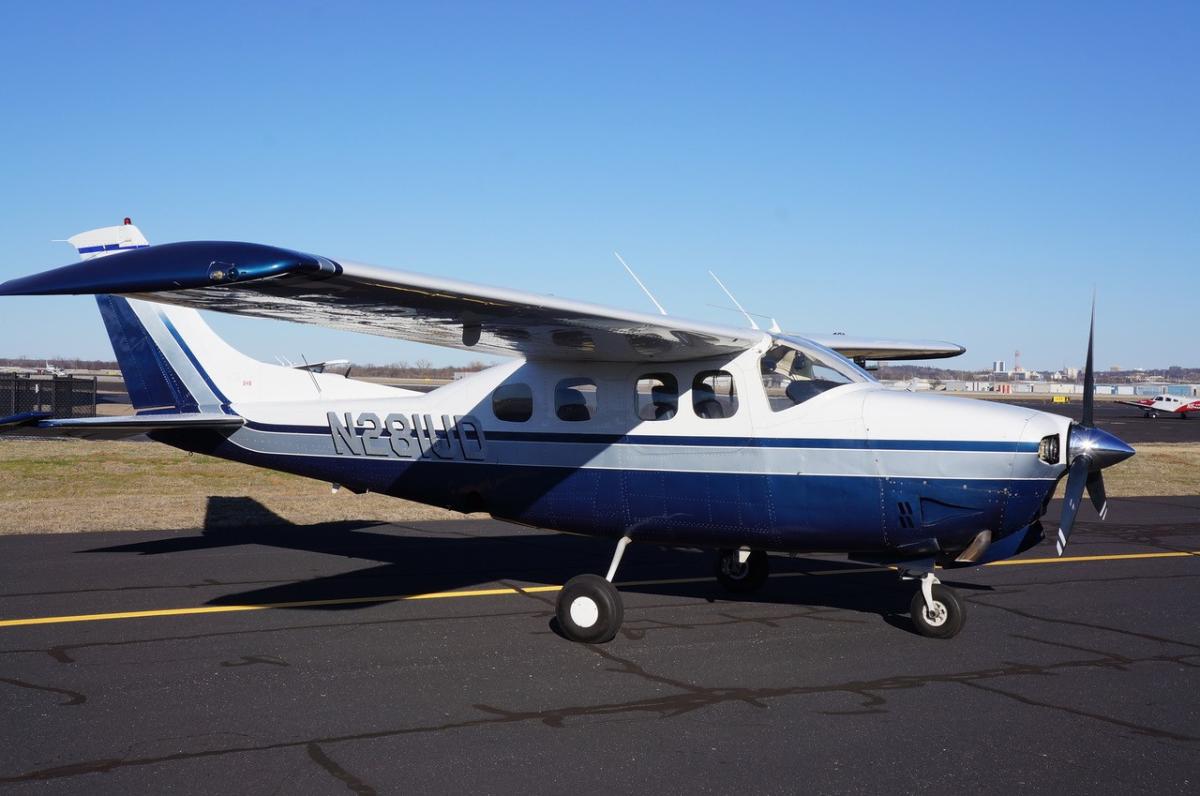

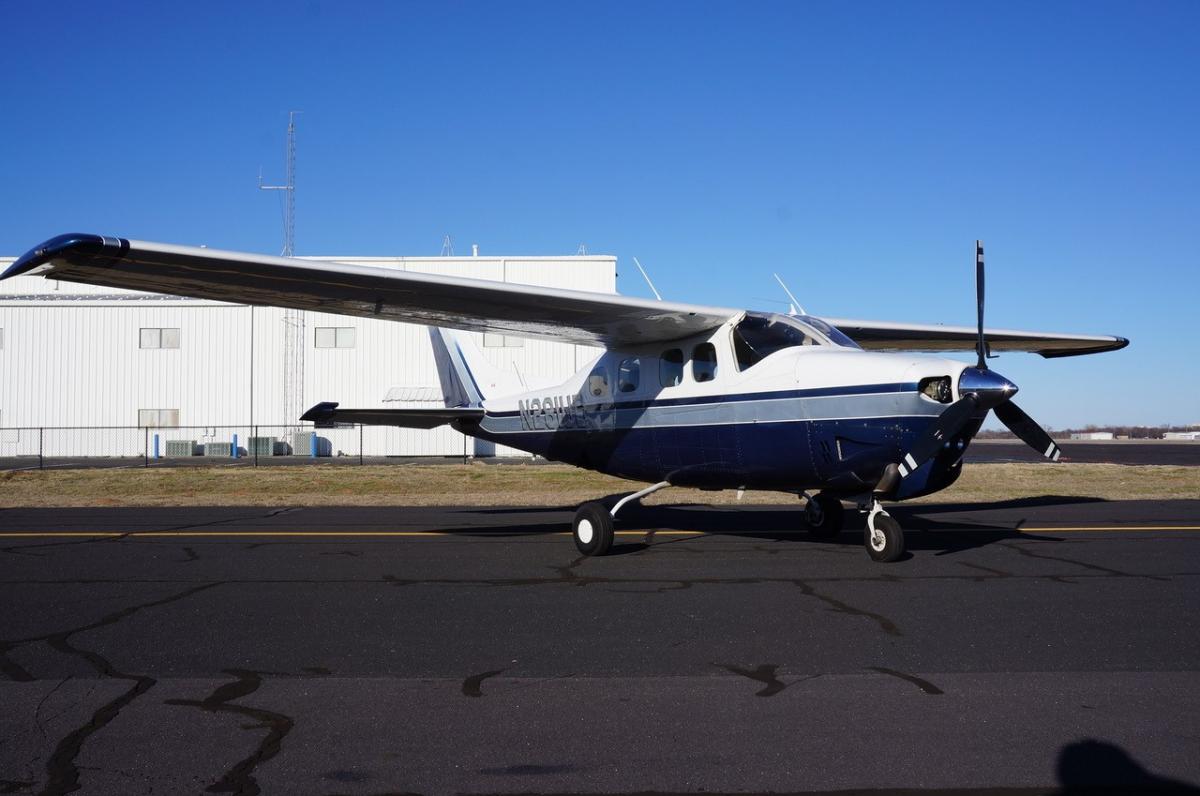

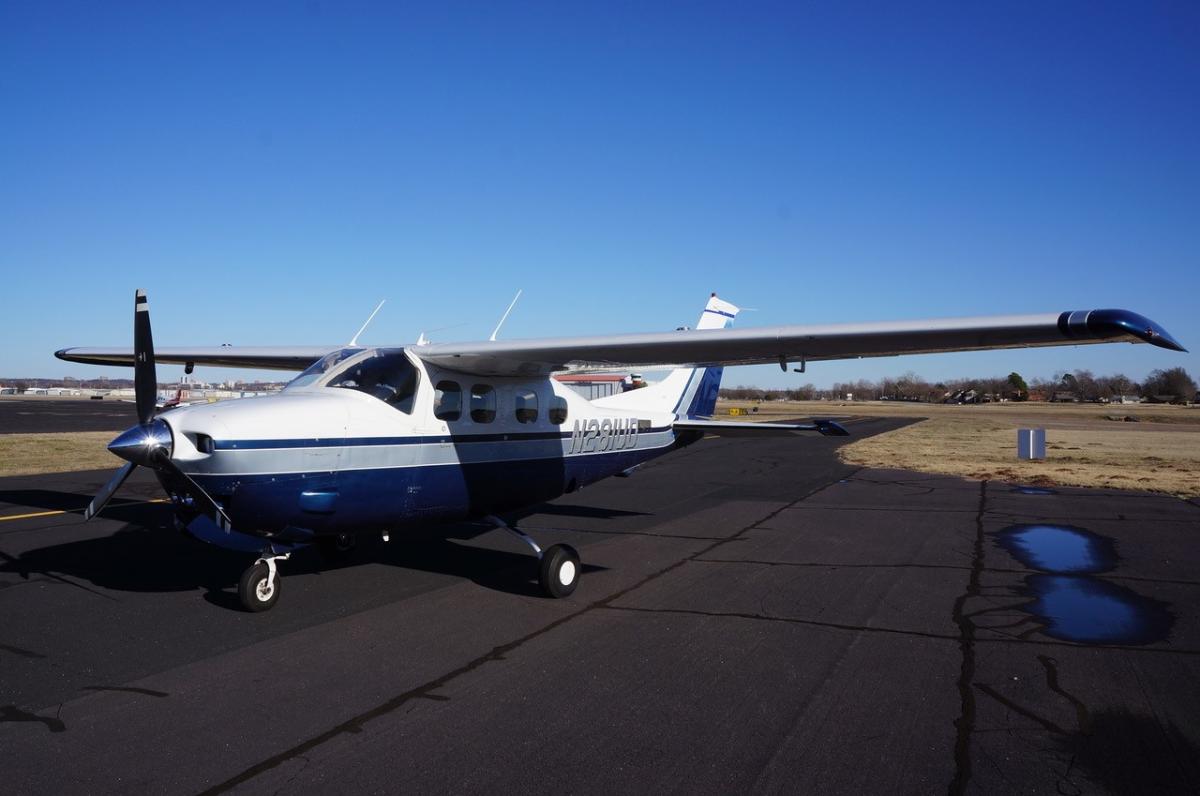

EXTERIOR:
Aircraft professionally stripped, prep'd, & then primed with Dupont Vari-Prime primer, then painted with Pratt & Lambert Acry-Glow paints:
Vestal White  (WP361)
Dark Blue Metallic  (HT-10596)
Sapphire Blue  (HT-10642)
Silver  (HT 10670
Black  (571-010)
Rated: 7+ to 8.

All Logs Complete Since New.
No Known Damage History.
Annual Inspection next due: May 2022
IFR Certification Next Due: February 2022

Complied with service letter SEL - 57-06 - SEL - 57-08 Cary Thru Spar Inspection, no corrosion found. Eddy current inspection performed, no cracks found.
