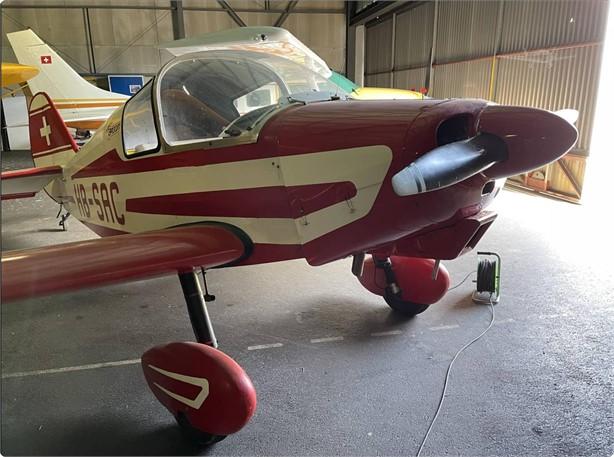

Amateur Built GY-20-1, Serial Number RHR 1
Manufactured by Mr Kurt Riesen in Switzeraland after the original drawings ans homebuilt (Non - EASA)

Empty Weight: 338.5 kg
MTOW: 515 kg

Noise: ICAO Annex 16, Vol. 1, Chapter 6, 63.3 dB(A), Swiss Category C

Cruise Speed: 85 Kts with 16/17 Liter Fuel Consumption

Airframe:
Total Time: 1659 hours

Engines:
Engine Continental A65, Serial Number T-026450 (hand start)
Total Time: 2178 hours
SOH: 780 hours
Overhauled in 1987 by Wili Bern
Shock load inspection performed at TSOH: 416:09 in June 2000 by Cermec-Motor after accident occurred on another aircraft
Reassembled in August 2001
Installed on HB-SAC in August 2001
Compression values taken in May 2021:
1: 76/80, 2: 74/80, 3: 76/80, 4: 76/80

Props:
Wood Propeller Merville 693B, Serial Number N 17506
TSOH: 288 hours
Manufactured in 1962
Overhauled in 2006

VHF COM Trig TY91 with TC90 Controller
Trig TT21 Mode S Transponder with TC20 Controller
Artex ME406 ELT (Battery expires 06/2026)

White and Red

Red and White Vinyle and Fabric

Wheel Fairings
Solar Panel Battery Charger
