1980 PIPER NAVAJO CR

Reg # N79LK

Inquire

  • 1980 PIPER NAVAJO CR Photo 2
  • 1980 PIPER NAVAJO CR Photo 3
  • 1980 PIPER NAVAJO CR Photo 4



Summary

2021 LOCK & KEY Navajo By Mike Jones Avionics and Maintenance
Considering Purchasing a New Single or Twin Engine Aircraft? Need that extra 2 seats, extra baggage capacity, more payload, POTTY, and cabin class room, then give us a call?
You Might Want To Consider The Ultimate Navajo!!! The LOCK & KEY Navajo by Mike Jones is a totally renovated Piper Navajo from nose to tail to Incredible Standards!!!
It looks like, feels like, and flies like no other Navajo in the world!!!

Order Your
2021 LOCK & KEY Navajo
3 Year Warranty on Special Blue Print Engines!!!
2 Year Warranty on Radios!!!
2 YEAR WARRANTY NOSE TO TAIL

Airframe:
Total Time: 7,400

Engines:
Time: 0 SMOH
THREE YEAR/UNLIMITED HOURS OR TBO WARRANTY
Power by Blueprint Engines/Limited Editions.
- Over 40 years in personalized precision engine overhauling.
- Factory-new limit specs that exceed mandatory OEM new parts replacement.
- As part of our standard replacement list all engines include:
New OEM Cylinder Assemblies, New Cams, Lifters and Plungers Bodies, New Oil Pump Gears and Housings, New Vacuum Pumps, New Starters, New Alternators, New Magnetos, New Plug Wires, New Iridium Fine Wire Plugs, New Hydraulic Pumps, New Shock Mounts, New Engine & firewall Hoses, New Engine Exhaust, New Turbo Charger Blankets, New Deice Brushes, New Oil Coolers, Engine Mounts Overhauled, Starter deice ring contact surface reconditioned, Baffling reconditioned.
Special Touch:
- OEM cylinders, power balanced, multi angle seats/valves are blue dye, custom and hand fitted, and liquid and pressure tested for optimum performance.
- Special honing to insure proper break-in, stable oil consumption and peak combustion efficiency.
- Crankcase halves are upgraded with special machined CNC Channel Groove with rubber seal inserted between case halves (not the old silk thread procedure) while Thru Bolt O-Rings eliminate case halve leaks.
- AvBlend Fusion pre-assembly process protects your investment from the very first start-up.
- State of the art dyno testing.
Electronic Ignition!!!!
Workmanship supported by the very best transferable
THREE YEAR/UNLIMITED HOURS OR TBO WARRANTY

Props:
0 SPOH L&R 4 Bladed Q Tip Props & Overhauled Prop Governors

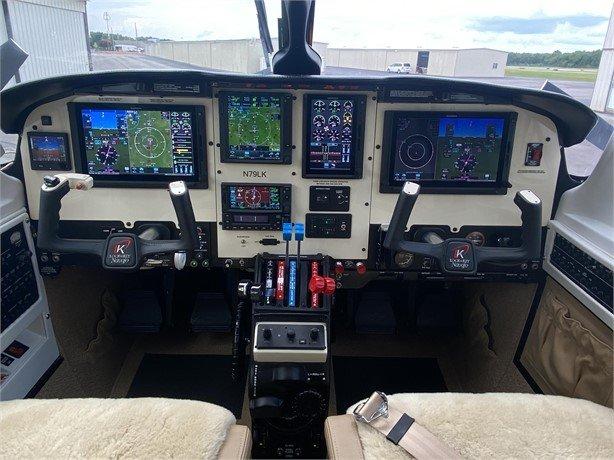

Avionics

NEW GFC600 AUTOPILOT WITH RUDDER BOOST!!!!!!!
NEW Dual Touchscreen Garmin G600 TXi/ PFD/MFD'S
NEW Garmin EIS All Engine Instruments & Fuel Management Showing Digitally
NEW Garmin Touchscreen GTN750 GPS / Nav / Comm
NEW Garmin Touchscreen GTN650 GPS / Nav / Comm
NEW Garmin GMA35c Remote Audio Panel w/ Bluetooth
NEW Garmin FlightStream 510
NEW Garmin GTX345R Remote ADSB Traffic In / Out Transponder w/ Bluetooth
NEW Garmin GTX335R Remote ADSB Out Transponder
NEW Garmin GTS800 TAS Active Traffic/Covers the 25% of traffic ADSB misses
NEW Garmin GDL69A XM Radio & Weather
NEW Garmin GWX75 Live Weather Radar/Has Vertical Profile
NEW Garmin GSR56 Satellite Weather and Communication System
NEW L3 ESI-500 Glass Backup w/ Navigation Enablement
NEW CiES Digital Fuel Senders
NEW P2 Landing Gear Alert System
NEW Mid-Continent MD835 Emergency Backup Power
NEW All new circuit breakers
NEW All new antennas
NEW All new antenna coax
NEW All Six-place USB charging ports
NEW All new Six-place Bose LEMO jacks
NEW Eight-place standard headset jacks

Exterior

$85,000 Paint Job with Two Coats of Clear Coat.
All new stainless steel screws, all new hardware in flight controls!!
A new aircraft is a #"10" our Lock & Key Paint Job is a "12"!!!!

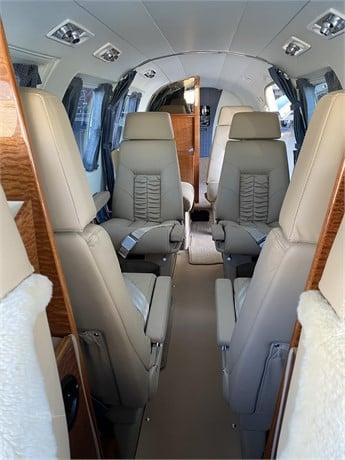

Interior

$85,000 Dollar New Interior, Polished seat rails!!

Additional Equipment

NEW Bogert Stainless Steel Battery Box/No More Corrosion
NEW Bogert Copper Cable Kit/Draws much less current
NEW Solid State Voltage Regulators
NEW Whelen LED Landing / Taxi / Deice / Recognition Lights
NEW Pulse Lights on Wingtips
NEW AVEO Engineering LED Nav / Position / Beacon Lights
NEW Overhead Switches/They Light up at night
LED Lighted Circuit Breaker Panels/Light Up Like A Christmas Tree At Night!!
NEW Heavy Brake Kit
NEW Deice Boots
NEW Fuel Cells
NEW New Windows
Overhauled Landing Gear/ Completely Overhauled, All new Hardware & Bushings
Overhaul Hartzell C&D Heater/No AD Note
Overhauled Hydraulic Powerpack
Tail AD Notes AD 2016-05-01 & AD 2017-10-20 Terminated

Remarks

Fresh Annual by the Navajo experts at Mike Jones Avionics & Maintenance
Only Five AD notes left to do with a visual inspection takes about a hour & your done!!!

Modifications / Conversions

STC Panther Conversion, 350 H.P. Engines! 4 bladed Q-tip props, much quieter!, and Winglets, better climb & cruise at altitude, New Redesigned Engine Bowls.
STC Gear Inner Gear Door Removal, TOTAL GEAR CYCLED TIME 4 SECONDS, eliminates AD Note & gear retract & extends much faster, higher gear extension speed/Big Safety Factor During Takeoff
STC Strakes for better Cruise speed, better Climb Performance & Stability.
STC Pulse Light System
FAA Field Approval Stainless Steel Battery Box & Copper Starter Cable
