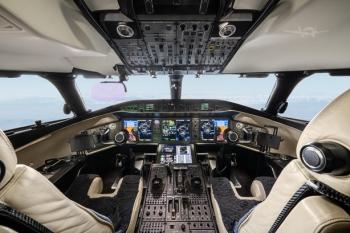

Four 14” x 11” Landscape Active Matrix Liquid Crystal Displays (AMLCD)
Dual 3-Axis Category II Automatic Flight Control Systems (AFCS)
Three VHF Comm Radios
Two HF Transceivers
One Dual SELCAL System
One Handset Using Cabin Satphone System
One Dual Channel Interphone System w/Handheld Microphones & Controls for pilot/copilot/observer
One Data Communication Channel (ACARS), in conjunction with the VHF meets the requirements of FANS 1/A+, incl. Airline Operational Control (AOC), Air Traffic Services (ATS), Facilities Notifications (AFN), Automatic Dependent Surveillance – Contract (ADS-C), and Controller Pilot Datalink Communication (CPDLC)
One Head-Up Display System (HUD)
One Enhanced Vision System (EVS)
Electronic Flight Instrument System (EFIS)
Engine Indication and Crew Awareness System (EICAS)
Emergency Locator Transmitter
Cockpit Voice Recorder
Flight Data Recorder
Two Integrated Flight Information Systems (IFIS) with Dual File Server Unit
One Synthetic Vision System (SVT)
One Electronic Integrated Standby Instrument (ISI)
One Air Data System (composed of three ADC’s) (ADS)
One Auto-Tilt Weather Radar
Three Inertial Reference Systems (IRS)
Two GPS WAAS Receivers
Two VHF Nav Receivers
Two ADF Receivers
Two DME Transceivers
One Traffic Surveillance System and Transponder, capable of Dual transponder funcuatlity, TCAS II Change 7.1, and ADS-B Out
Two Radio Altimeter Systems
One Terrain Awareness and Warning System (TAWS)
Three Flight Management Systems (FMS)
Additional Equipment
• Electric accordion type window shades
A Passenger Service Unit (PSU) incorporates a handrail, oxygen masks for each seating position, cabin entertainment system speakers, PA speakers, individual adjustable air gaspers, and lighting
Cabin lighting system including boarding lights, accent lights, emergency lights, ordinance signs, seat reading and table lights

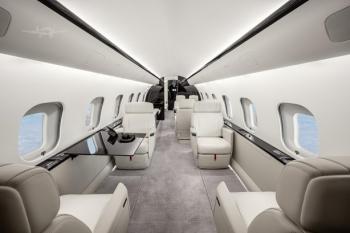

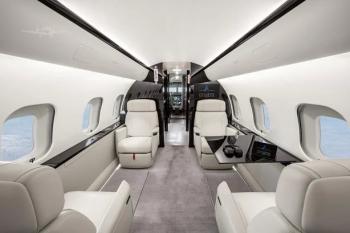

Interior
Dual channel Iridium telephone system
Inmarsat Swift Broadband (SBB) SATCOM system
Ten universal GFCI electrical universal outlets at various locations
Five Wireless Passenger Control Units (WPCU) to control cabi system including entertainment, cabin utilities and displays
Cabin management system features a fiber optic network
In-Flight Entertainment (IFE) system including worldwide maps and audio cabin briefing
One (1) 24” 4K monitor mounted on the aft facing bulkhead in Zone 1A;
One (1) 24” 4K monitor mounted on the forward facing bulkhead in Zone 3B;
One (1) HDMI port at MSL1 in zone 1A;
One (1) HDMI port at MSL1 in zone 3B;
Two (2) Bluetooth wireless audio receivers and one (1) audio input (1/8" stereo jack for audio distribution to speakers and headphones;
An audio system comprising ten (10) speakers and four (4) subwoofers connected to audio / visual media system;
Six (6) cabin headsets with active noise compensation provided as loose equipment
Galley (RH) Features :
Crystal Showcase
Flatware and Utensil Storage, inserts to accommodate sets
Sealed waste drawer with garbage bag retainer ring
Stainless steel sink with strainer, faucet, and sink cover with cutting board on reverse side
Miscellaneous storage drawer concealed under the sink
Divided clean ice/bottle storage drawer with a manual plunger for drainage
Chilled soda can drawer
Laminated and insulated chilled storage compartment with three removable trays/shelves
Two single universal GFCI electrical outlets
Galley Annex (LH) Features :
Crystal showcase
China storage drawers
Flight attendant HD touchscreen
One high temp oven
One high temp microwave oven
Two single universal GFCI electrical outlets
Two pull-out work surfaces
Miscellaneous storage
Lavatory Details (forward and aft locations) :
Vacuum toilet with hinged padded lid and external water servicing
Vanity cabinet with sink and faucet
General storage, hand towel holders, universal GFCI electrical outlet, sealed trash bin
Baggage Accommodations
Two fold-down shelves with support gusset and restraint straps
One 60” Removable Hang-Up bar
One LH fold-up hang-up bar
Two storage areas with removable coat rod and net
Provisions for removable mid cabin bulkhead
Storage with net forward of the external baggage door
