AIRFRAME:

3,758 Hours Total Time Since New

ENGINE:
1,049 Hours Since Major Overhaul by Custom Airmotive of Tulsa, OK (FAA Certified Repair Station) on Continental IO-550B Conversion (2002)

Most recent compressions: 1) 78/80. 2) 79/80. 3) 79/80. 4) 78/80. 5) 79/80. 6) 79/80.

Make: Continental / Model: IO550B / Serial #: 296710-R

PROPELLER:
169 hours since Overhaul on McCauley 3-Blade Propeller

Make: McCauley / Model: D3A32C409-C / Serial #: 932372

MODS:
IO-550-B Engine Conversion to 300-Horsepower Per STC SA2200SW (same engine model s all 1984 & later A36 & G36 Bonanza's)

Spacecraft Machine Products (SMP) Upper & Middle Hinge Brackets per STC# SA5870NM & SA4899NM

Aerosafe Standby Vacuum Pump per STC# SA4835SW

Wheelen Parmetheus Plus Taxi/Landing Light per STC SA00344BO

G&D Aero Products Window Inserts per STC# SA3759NM

LP Aero Plastics Inc. 1/4 inch Windshield per STC# SA992NE

Challenger Aviation Products Re-Usable Air Filter per STC# SA01669CH

Horizon Instruments Digital Tach per STC# SA5491NM

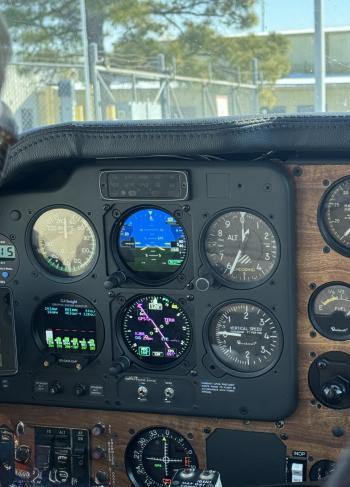

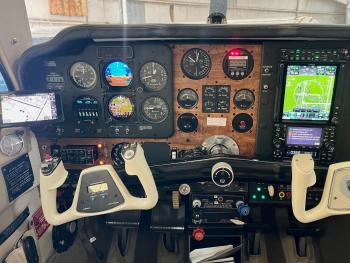

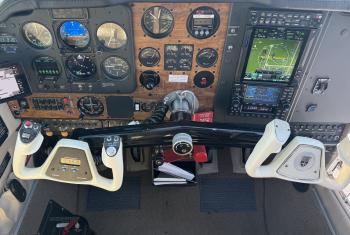

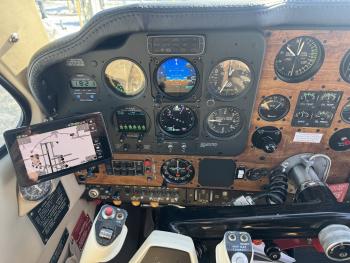

AVIONICS:
Garmin GMA-340 Audio Panel w/ 3-Light Marker Beacons & Voice-Activated 6-Place Intercom System

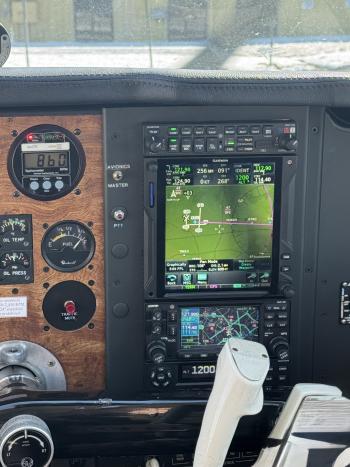

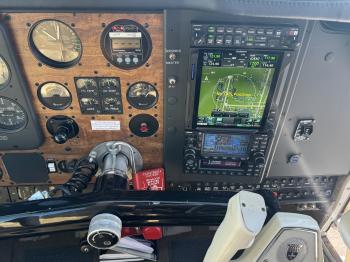

Garmin GTN750Xi  'Touchscreen' WAAS-IFR GPS-Com w/ w/ ILS, LPV, Large Color Moving Map Display and Terrain Avoidance
King KCS-55A Slaved HSI
Garmin GNS-430W WAAS-IFR GPS-Com #2 w/ ILS, LPV, Color Moving Map Display and Traffic Avoidance
3M WX-11 Stormscope
King KN-63 Remote Digital DME channeled to both Nav's
Garmin GTX-345 Digital Bluetooth Mode-S Transponder w/ ADS-B IN & OUT, & 'Traffic Mute' feature
King KFC-200 Autopilot w/ Flight Director, Hdg/Nav/GPS Tracking, Vertical Speed & Approach Modes, Glideslope Coupling, Altitude Hold, Go-Around Mode, and Auto-Electric Trim

ADDITIONAL EQUIPMENT:
Dual Control Yoke w/ Beech 'Ram's Horn' Yokes
Second 'Standby' Alternator
JPI EDM-700 Digital Engine Analyzer
Shadin Digital Fuel Flow

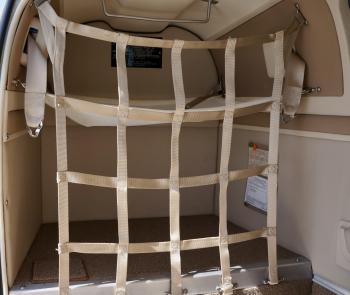

Aft Baggage Compartment with Cargo Net
USB Charging Ports
Shoulder Harnesses at all Six Seating Stations

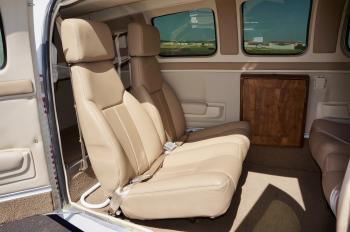

Club Seating w/ Executive Writing Table
G & D Aero Tinted Cabin Window Inserts
Electric Standby Vacuum System
Polished Prop Spinner
Horizon International Digital Tachometer
Electric Pitch Trim
Pilot's Push-to-Talk Switch
Pilot's Yoke-Mounted Digital Chronometer
Vernier Throttle, Mixture, & Prop Controls
Avionics Master Switch
Wingtip Strobe Lights

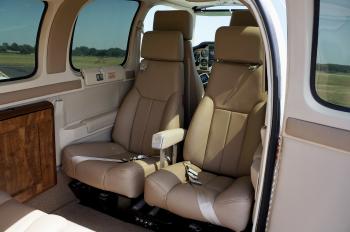

INTERIOR:

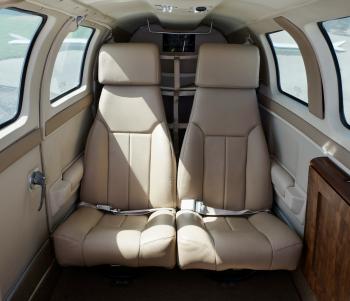

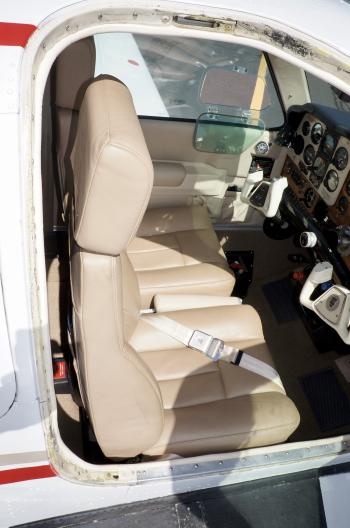

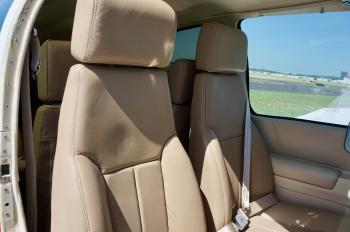

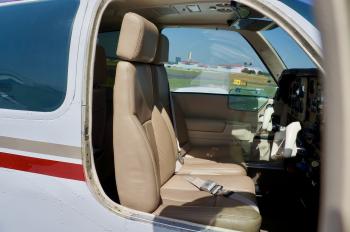

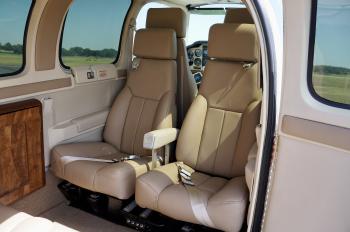

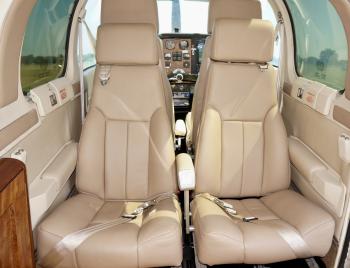

-Pilot, Co-Pilot, and Passenger seats reupholstered in Nov. 2022 by 'First Class Aerospace' using Moore & Giles "Athens Umber" Leather.
-Seatbelt rewebbing completed by Aviation Safety Products.

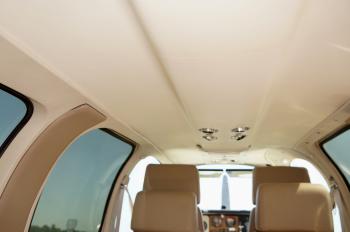

-Headliner refurbished using Coast2Coast "Cornsilk".

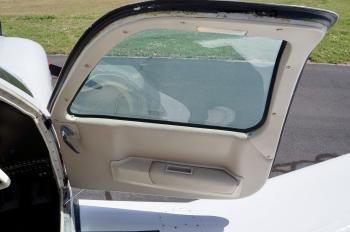

-Side Panels refurbished with "Colorguard Natural 518424" Vinyl.
-Carpet replaced with RedRock Customs "8594 Pinnacle Collection".

Near Perfect Interior! Gorgeous !

Rated: 9+

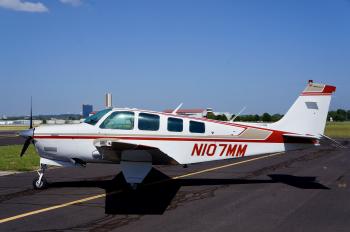

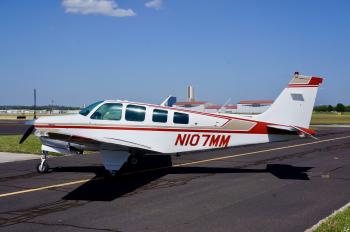

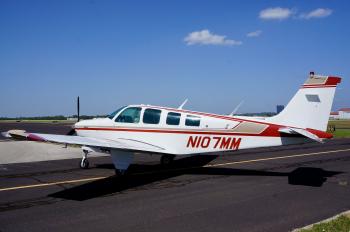

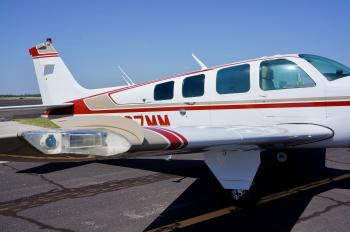

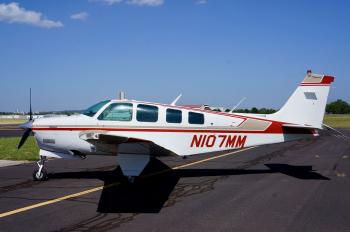

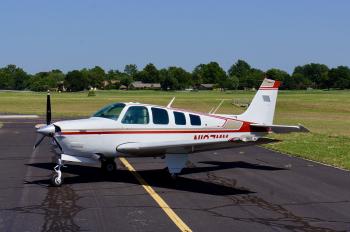

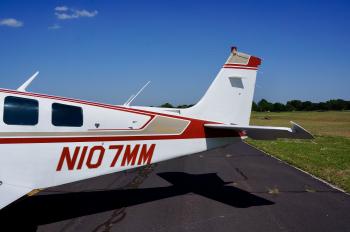

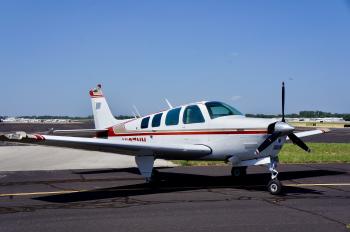

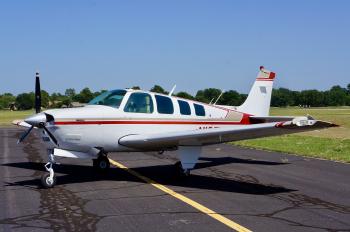

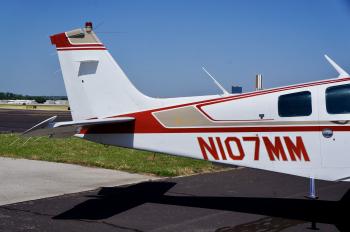

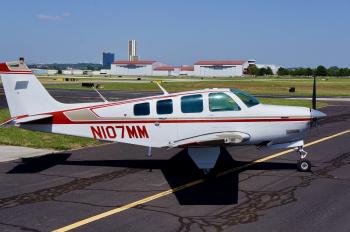

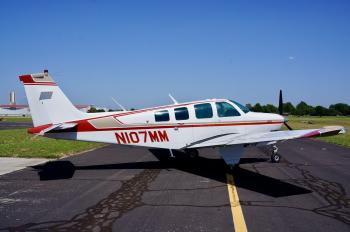

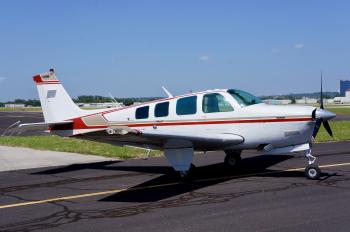

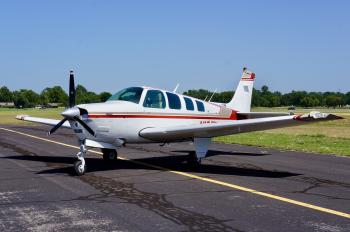

EXTERIOR:
Aircraft stripped, primed, and repainted by D&T Aircraft Painting, Inc. in October 2002.

Matterhorn White base
Matador Red accent
Champagne Gold accent

INSPECTION STATUS:

Annual Inspection next due: August 1, 2026
All Logs Since New.
No Major Damage History.
1999 Left-wing leading edge struck an unmarked low-level pole by a self-service fuel pump, professionally repaired by Raytheon Aircraft.

Last Annual Maintenance Included: Two new fuel bladders, Overhaul landing gear motor, recently Overhaul HSI and Autopilot by Autopilot Central
