- Entry Into Service in 2000 / Part 91
- Excellent Pedigree / Only 2 Owners Since New
- 2C Check, 12yr Gear & Blade Upgrade c/w Dec ’23
- Engines enrolled in GE On-Point
- GoGo L5 Internet & WiFi
- New Paint c/w 2024
- FANS-1/A / ADS-B Out (DO-260 / TCAS 7.1
- 7 PATS auxiliary tank fuel system (dual forward, five aft -
- STC ST00936NY) with structural provisions for 9-tank
- auxiliary fuel system
- 95,112.7 lbs Empty Weight / 171,000 lbs MTOW
- Exo-grid Isolated Headliner
- Three Zone Raytheon Heating / Air Conditioning
- 14 Passengers TT&L, Sleeps 8
- Full Interior Refurbishment c/w 2024
- Crestron Custom Cabin Management System
- RGB LED Lighting Throughout
- Alto Audio HD Sound System
- Four Upgraded HD Monitors
- Plex Media Server w/ Three Apple TV’s
Airframe:
- Total Time: 5,660
- Total Landings: 1,960
- Maintenance Tracking on Veryon (FlightDocs)
- Boeing LUMP Inspection Program
Engines:
- Time: 5660/5660
- Cycles: 1960/1960
- APU:
- Honeywell GTCP 131-9B
- Hours: 6,046
- Cycles: 5,150
Avionics
- HUD: Flight Dynamics Heads-up Display HGS Computer P/
- N 1500-1730-002 D-1
- EFIS: Honeywell LCD Flight Displays
- FMS: Dual Smiths Industries FMC 2907C1*
- ADIRU: Dual Honeywell P/N HG2050AC
- VHF COM: Triple Collins VHF-900B VDC Mode 2
- HF COM: Dual Collins Model Number: HFS-900D
- ADF: Dual Collins ADF-900
- AUDIO: Triple Gables
- SATCOM: Honeywell MCS-7000 P/N 7516118-27010*
- PHONE: Inmarsat Satellite Voice Telecommunications
- System with Five Handsets (1 Cockpit & 4 Cabin) + Aircraft
- Interphone System
- GPS: Dual Collins Integrated MMR GLU-2100
- NAV: Dual Collins VOR-900
- DME: Dual Collins DME-900
- RADAR: Collins WRT-701X P/N 622-5132-633 w/
- Windshear
- TAWS: Honeywell EGPWS
- ACAS: Collins TTR2100 w/Change 7.1. P/N 822-2911-001
- XPNDR: Collins TPR-901 P/N 822-1338-003 Mode S EHS &
- ADS-B Out (DO-260)
- CVR: Fairchild CVR
- FDR: L3 DFDR
- ELT: Artex 3-channel ELT P/N 453-5000-366
- A/T: GE 760SUE2-5 Autothrottles
- ARINC: 740 Cockpit Printer
- FANS-1/A
- TCAS 7.1
Additional Equipment
- I.W.G. Water Sterilizer
- 7 PATS auxiliary tank fuel system (dual forward, five aft - STC
- ST00936NY) with structural provisions for 9-tank auxiliary
- fuel system
- Hollingsead Cargo Fire Detection-extinguishing System (STC
- ST00405LA-D)
Interior
- 12 Passenger // Sleeps 8
- Luxurious custom-designed seats throughout the cabin
- upholstered with contrasting premium Garrett leathers
- and intricate diamond pattern stitchwork

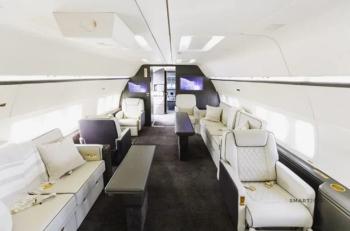

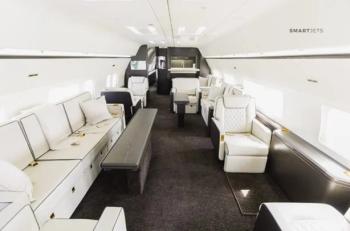

- The forward cabin’s main lounge provides seating for
- nine passengers during taxi, takeoff, and landing, and
- there are four additional occasional seats. Main lounge
- divans upholstered in premium Garrett leathers

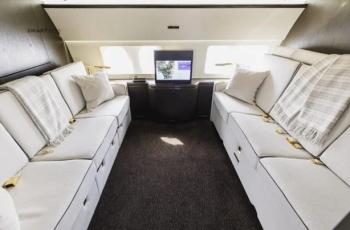

- The aft lounge provides seating for three
- passengers during taxi, takeoff, and landing, and there
- are three additional occasional seats. This lounge
- converts into a bunkroom with four beds, or it can be set
- up as a conference/dining room with six seats. Mid-cabin
- divans upholstered in premium Loro Piana fabrics

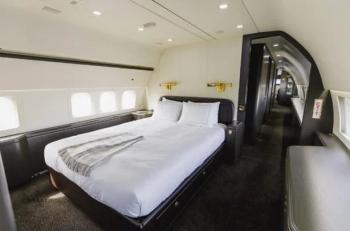

- The aft full-width master suite features an adjustable
- queen-size bed, a single occasional seat, and the master
- suite bath has a large vanity and shower.
- Full cabin re-veneered in open grain white oak finish in
- matte dark chocolate color
- New natural Arabescato stone countertops
- Luxurious 100%-New Zealand-wool carpeting by
- RedRock throughout the cabin
- Galley: Mid
- A large mid-cabin galley featuring an oven, cooktop, fan,
- trash compactor, microwave, and refrigerator. Aft of the
- lounge area, a versatile bar adjoins the galley and
- features a passthrough, bar countertop, and two bar

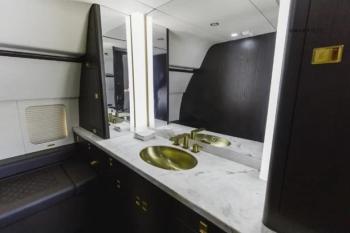

- stools. Lavatories: Forward, Mid, and Aft
- A forward left-hand crew/passenger lavatory and a large
- mid-cabin passenger lavatory are complemented by an
- aft cabin full-width master suite lavatory featuring a large
- vanity and shower.
- Baggage Compartments:
- Three compartments: a mid-cabin storage compartment,
- and forward and aft lower cargo compartments.

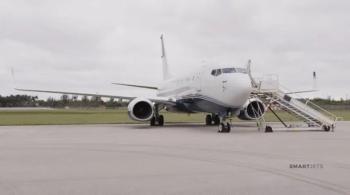

Exterior
New Paint c/w 2024Base Color: Matterhorn - WhiteStripe Color: Navy Blue
